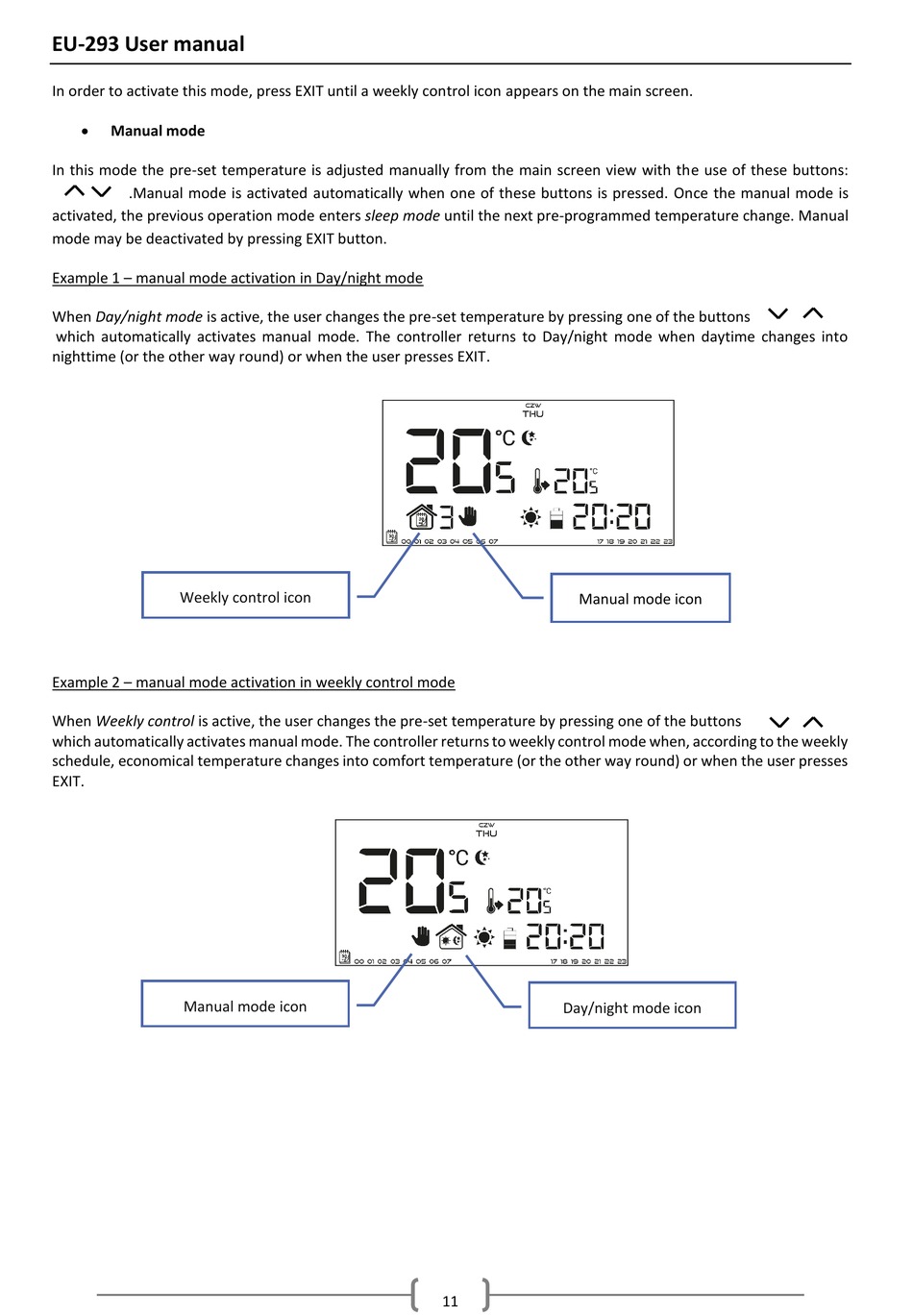

EU-293 User manual
In order to activate this mode, press EXIT until a weekly control icon appears on the main screen.

Manual mode
In this mode the pre-set temperature is adjusted manually from the main screen view with the use of these buttons:
.Manual mode is activated automatically when one of these buttons is pressed. Once the manual mode is
activated, the previous operation mode enters sleep mode until the next pre-programmed temperature change. Manual
mode may be deactivated by pressing EXIT button.
Example 1 – manual mode activation in Day/night mode
When Day/night mode is active, the user changes the pre-set temperature by pressing one of the buttons
which automatically activates manual mode. The controller returns to Day/night mode when daytime changes into
nighttime (or the other way round) or when the user presses EXIT.
Weekly control icon
Manual mode icon
Example 2 – manual mode activation in weekly control mode
When Weekly control is active, the user changes the pre-set temperature by pressing one of the buttons
which automatically activates manual mode. The controller returns to weekly control mode when, according to the weekly
schedule, economical temperature changes into comfort temperature (or the other way round) or when the user presses
EXIT.
Manual mode icon
Day/night mode icon
