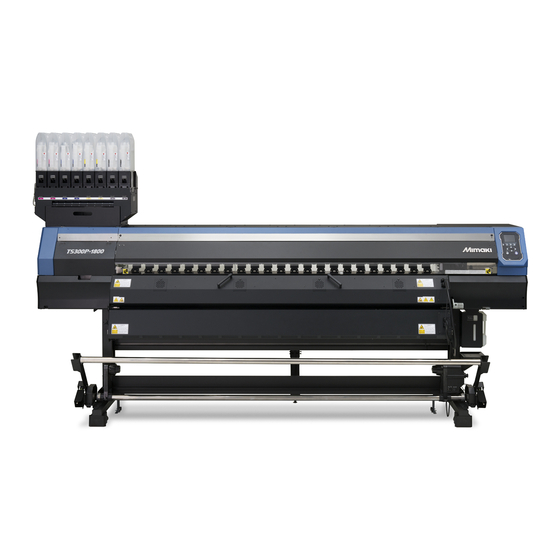

MIMAKI TS300P-1800 Product Manual

Dye sublimation printer for for low cost production
Hide thumbs Also See for TS300P-1800:
Table of Contents

Advertisement

Quick Links

Download this manual
Product Guide
Mimaki Europe B.V.
Textile and Apparel Products
1.8m Roll to Roll Printer for Transfer Dye Sublimation
The information in this document is subject to change without notice.
Dye sublimation printer for
for low cost production
01-10-2017
V1.22EU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS300P-1800 and is the answer not in the manual?

Questions and answers

Related Manuals for MIMAKI TS300P-1800

Summary of Contents for MIMAKI TS300P-1800

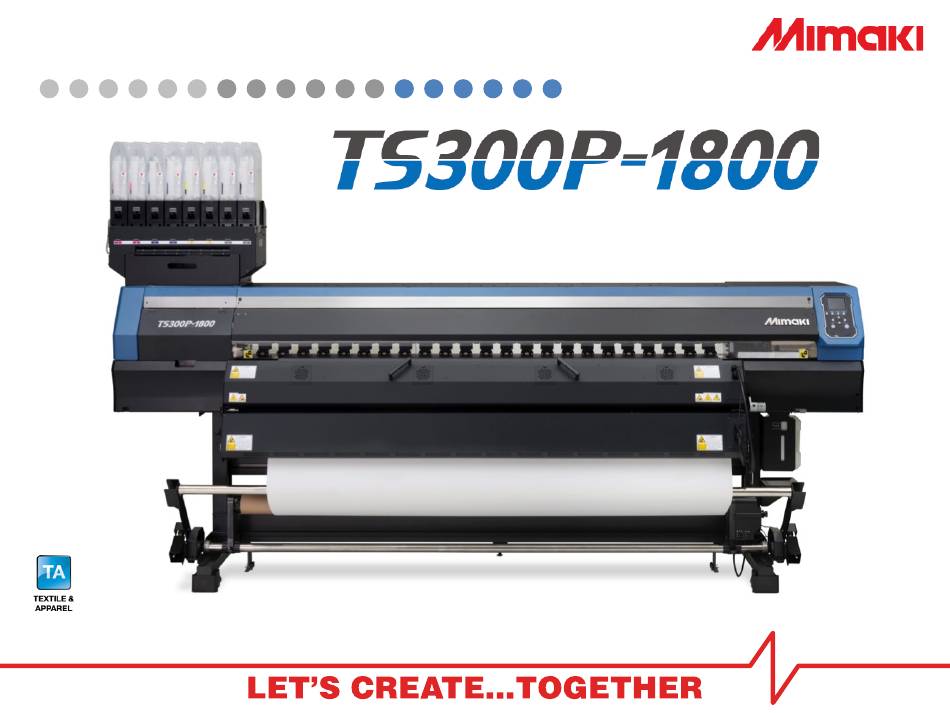

  • Page 1 Product Guide Dye sublimation printer for for low cost production 1.8m Roll to Roll Printer for Transfer Dye Sublimation The information in this document is subject to change without notice. 01-10-2017 Mimaki Europe B.V. V1.22EU Textile and Apparel Products...

  • Page 2: Terms Of Use

    Mimaki Europe B.V. • Contents and technical explanations in this presentation are based on the test results achieved at Mimaki at the time of testing and are not a guarantee for performance. Substrates should be tested beforehand. •...
  • Page 3 NCU, printing with a continuous high image quality • Event Mail Notification, remotely monitoring the printer • Remote management with Ethernet connection *Recommended head gap is 3mm. The appropriate head gap may differ by the used printing conditions. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 4 Essential functions for textile printing are supported. e.g. Step and repeat • Smart color matching • Effective color matching with software RIP “TxLink3 Lite”* • Color replacement in the RIP • Color replacement of RGB and CMYK data is possible *RasterLink6 is optional Mimaki Europe B.V. Textile and Apparel Products...
  • Page 5 • Supply: 2L ink pack • Anti-static sheet Works with: PS,EPS,TIFF,BMP,JPEG, etc. Use a network CAT6 cable Connection via a relaying router is not supported. When using a switch, use a 1000BASE-T supported version. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 6 Available ink sets for TS300P-1800 Ink assignment Mimaki Europe B.V. Textile and Apparel Products...
  • Page 7 1 head: 800 nozzles (4 rows x 200 nozzles) 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 Nozzle length About 56.2mm (2.2inch) Nozzle length About 7.9mm (0.31inch) About 136.3mm (5.37inch) Mimaki Europe B.V. Textile and Apparel Products...

  • Page 8: Print Speed

    720x1080,24P,Bi The print modes in this document is the performance of the printer itself. The profiles are created selectively depending on the media type. With TxLink3 or MPMII additional profiles can be created. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 9 Ink drops deviate by high head gap printing Ink drops are fired straight even with a high head gap Accurate dot placement. Inaccurate dot placement. Sharp edges . Blurry edge and grainy appearance. Printed image Mimaki Europe B.V. Textile and Apparel Products...
  • Page 10 Image quality comparison 1 Head gap Older generation TS300P-1800 (Sb410:6C) Letter(9pt) sharpness Print mode: 540x720,VD,8P,Bi,Hi *The max head gap of older generation is 5mm. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 11 Image quality comparison 2 Head gap Older generation TS300P-1800 (Sb410:6C) Graininess Print mode: 540x720,VD,8P,Bi,Hi *The max head gap of older generation is 5mm. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 12 AMF tension bar guides the media appropriately Reduction of cockling High gap printing Platen vacuum Head gap: 7mm Head gap: 5mm Print head Print head TS300P-1800 Lower print gap Platen AMF tension bar Mimaki Europe B.V. Textile and Apparel Products...
  • Page 13 (small/medium/large) • Variable dot printing delivers smooth gradation Variable dot Normal dot *TS300P-1800 works with two different waveforms, to achieve high speed and high quality printing the best waveform is selected automatically. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 14 Stunning quality • MAPS4 (Mimaki Advanced Pass System 4) • MAPS4 prints passes in gradation-like tone, by dispersing ink drops between the passes, which reduces banding, uneven drying ink, and bidirectional stripes • MAPS4 works in the higher pass modes of each resolution...

  • Page 15: Continuous Operation

    Replaces missing nozzles by working nozzles in other passes • No need for direct service intervention • Makes printing with the same quality possible, even if nozzles are missing Continuous printing by NRS Continuous operation Down Time Mimaki Europe B.V. Textile and Apparel Products...
  • Page 16 • NRS does not change the print speed • NRS does not work when: • Printing in low pass modes • Printing in some modes with MAPS4 • The registration of the nozzle is not correct Mimaki Europe B.V. Textile and Apparel Products...
  • Page 17 Nozzle check ink consumption: 732cc/year registered number (Operating Condition: One check/hour x 10-hour operation/day x 240-day) Warning(Standby) *When setting nozzle check by length, the color may differ when the NRS is performed in the middle of printing. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 18 Since the ink on the wiper is removed, it keeps the nozzle surface clean and supports a stable firing of the ink Automatic Wiper Cleaning 1. Washing liquid comes out Wiper Cleaner 2. Wiper action Mimaki Europe B.V. Textile and Apparel Products...

  • Page 19: Ethernet Connection

    *Please use network cable for category6, CAT6. Connection by relaying router is not supported. When using Ethernet, connect printer and RIP PC in the same network. When using switch, please use a 1000BASE-T supporting version Mimaki Europe B.V. Textile and Apparel Products...
  • Page 20 The following schematic can be used when using the event mail function Internet Receiving Mail RIP-PC Print start/completed USB is needed when the PC is not connected in Error/Warning the same network as the printer. This is for sending jobs to the printer. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 21 Detailed head gap adjustment • The head gap is adjustable between 2-7mm in steps from 0.05mm Head adjustment Operation panel Lower Push Higher Mimaki Europe B.V. Textile and Apparel Products...
  • Page 22 AMF tension bar • AMF tension bar for precise take up AMF tension bar Precise take up Media 50gsm, 220m roll, 1620mm width Ink amount: 10cc/m (CMYK) Mode: 4C, 720x720,4P,Bi (42.6m Mimaki Europe B.V. Textile and Apparel Products...
  • Page 23 Ink supply system for unattended printing • More production with MBIS3 (Mimaki Bulk Ink System 3) • Less down-time by continuous printing • Large 2L ink pack saves running cost • Installed onto the printer saves working space • UISS (Uninterrupted Ink Supply System) •...
  • Page 24 Media stands for easy media installation/removal • The media stands are available for both feeding and take-up unit • Supports installing and removing of heavy media rolls Media stand Rear side Front side Mimaki Europe B.V. Textile and Apparel Products...
  • Page 25 Adjust the number of used pinch rollers depending on the width and type of media Pushing down the pinch roller Lifting-up the pinch roller • Pinch rollers can be disassembled easily by removing the small blue rubber bands Mimaki Europe B.V. Textile and Apparel Products...
  • Page 26 The heater can be folded for easy access • Safety design • The heater is turned ON/OFF in conjunction with printer Drying ability comparison [％] w/o External heater 外部乾燥ヒーター無し w/ External heater 外部乾燥ヒーター有り 720×1080,Hi6P,Bi Mimaki Europe B.V. Textile and Apparel Products...

  • Page 27: Status Led

    Easy to see from a distance Various information is displayed in a graphical manner, such as media width, heater temperature and remaining ink Status LED Blinking in Blue: Normal operation Blinking in Red: Needs attention Mimaki Europe B.V. Textile and Apparel Products...
  • Page 28 Easy reproduction of corporate logo is possible. ・Color replacement of Raster data and RGB data, which are often used for textile designs, is possible. ・Replacement colors can be defined also by using a spectrophotometer. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 29 2. Named color registers ink density value with a name. By giving the name which is the same as the Named color, for a spot color in the image, color replacement is automatically done just by opening the image in the RIP Mimaki Europe B.V. Textile and Apparel Products...
  • Page 30 By using this function, the similar colors with the color selected by Swatch book or Named color are printed as a chart. • This allows finding replacement color easily. Chart by Swatch book (Lab value) Chart by Named color (Ink density value) Mimaki Europe B.V. Textile and Apparel Products...

  • Page 31: Printing Management

    Print client archives print history • Ripping and printing progress are shown • Printed job in the past can be printed again • Printed date and consumed ink amount are recorded *Calibrated monitor is required. Mimaki Europe B.V. Textile and Apparel Products...
  • Page 32 Print color chart based on the calibrated result Repeat till the color matches Chose the most similar color Comparing with the target color Register the color in Swatch book Reproduce target color by Color replacement function Mimaki Europe B.V. Textile and Apparel Products...
  • Page 33 Separated plated data for the analogue printing can be used. • Ideal colors can be added on each plate in TL3, and the plates can be combined. *Compatible file: 1bit TIFF / 8bit grayscale TIFF Mimaki Europe B.V. Textile and Apparel Products...

  • Page 34: Intuitive Operation

    Used amount of ink calculation • Print progress display • Frequently used setting can be Automatic nesting function • registered as “My Favorite”. Up to 30 settings can be registered. Web update function • Mimaki Europe B.V. Textile and Apparel Products...
  • Page 35 RasterLink & TxLink3 Lite/Standard/Pro More detailed information in the TxLink3 product guide. Mimaki Europe B.V. Textile and Apparel Products...

  • Page 36: Installation Conditions

    4. Ink odor. Please use the machine in a well-ventilated environment 5. Do not install in the place where using a photograph fixer or the place with acid steam like acetic acid, hydrochloric acid *Installation space for PC is required separately Mimaki Europe B.V. Textile and Apparel Products...

  • Page 37: Specifications

    USB 2.0 Hi-speed / Ethernet 1000BASE-T Safety standard VCCI Class A / FCC Class A / UL60950-1ETL / CE Marking(EMC, Low voltage, Machinery) CB report / RoHS / REACH / EnergyStar / RCM Mimaki Europe B.V. Textile and Apparel Products...
  • Page 38 APPENDIX Mimaki Europe B.V. Textile and Apparel Products...
  • Page 39 Supply items - inks Part No. Description Volume Packaging Remarks SB410-x-2L Sb410 Dye sublimation ink pack BLT, MT, YT, KD, LbT, LmT, LkT, FpT, FyT, FL003-Z-2L Flushing liquid 03 2L pack Mimaki Europe B.V. Textile and Apparel Products...
  • Page 40 1 set SPC-0809 Heater unit filter 20 sheets SPC-0810 Mist catch filter 30 sheets FL003-Z-22 Flushing liquid 03 Cartridge 220ml Cartridge For daily maintenance ML003-Z-K1-1 Washing liquid 03 Maintenance kit For daily maintenance Mimaki Europe B.V. Textile and Apparel Products...

  • Page 41: Optional Items

    SR6-015 RasterLink6 Dongle Edition for TS300P and TX300P OPT-J0137 USB2.0 CABLE (5m) OPT-J0370 Heater Unit 1800 OPT-J0389 TS300P-1800 Static prevention sheet *1. MPM3 version 3.1.2 or above *2. MTCE version 1.2.12 or above Mimaki Europe B.V. Textile and Apparel Products...
  • Page 42 SLIP sheet holder unit OPT-J0370 Small Relay Box For connection of external heater OPT-J0396 Mist catch unit OPT-J0399 1-inch holder unit *1. MPM3 version 3.1.2 or above *2. MTCE version 1.2.12 or above Mimaki Europe B.V. Textile and Apparel Products...
  • Page 43 Certificates • OEKO-TEX® ECO-PASSPORT Certification for textile inks • Mimaki ink Sb410 is OEKO-TEX® certified • ECO PASSPORT by OEKO-TEX® is a mechanism by which textile chemical suppliers demonstrate that their products are suitable to print skin-friendly clothing and other textiles for end users •...
  • Page 44 Thank you MIMAKI EUROPE B.V. Mimaki Europe B.V. Textile and Apparel Products...
