Summary of Contents for MIMAKI AMF-250

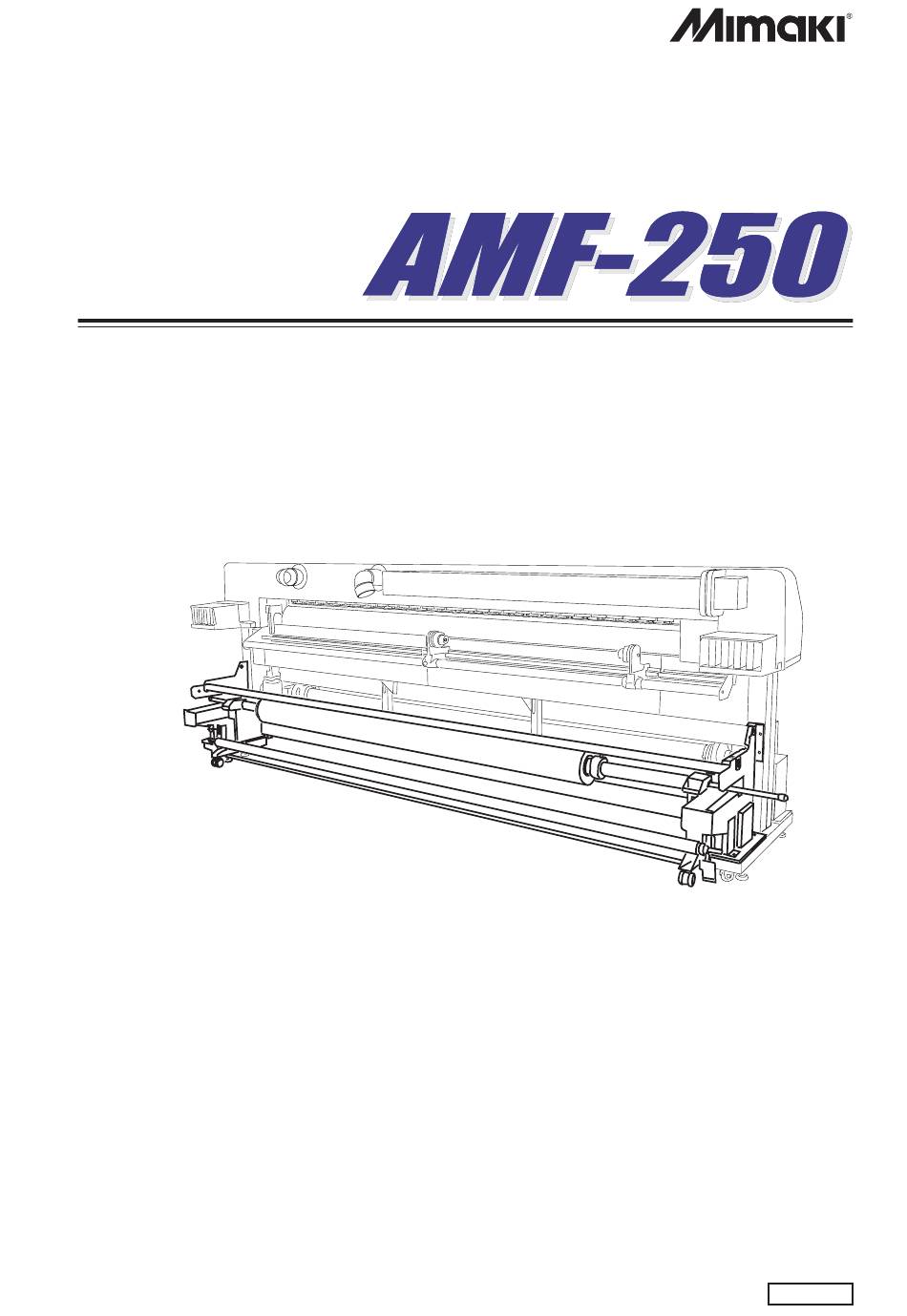

- Page 1 The Auto Media Feeder for JV3-250SP OPERATION MANUAL MIMAKI ENGINEERING CO., LTD. TKB Gotenyama Building, 5-9-41, Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, Japan Phone: +81-3-5420-8671 Fax: +81-3-5420-8687 URL: http: // www.mimaki. co. jp / E-mail: traiding@mimaki.co.jp D201222...
- Page 3 ING CO., LTD. has been informed of the possible risk of such damages in prior situation. For example, MIMAKI shall not be liable of any damage to media (works) due to the use of the product or any indirect damage that is caused by a product that is manufactured with damaged media.
-
Page 4: Foreword
Foreword Congratulations on your purchase of the AMF-250 Auto Media Feeder model of the inkjet plotter JV3-250SP. Read the Operation Manual carefully and hope the plotter will find useful for your drawing safety. On This Operation Manual • This Operation Manual describes operation and handling instructions for the AMF-250 Auto Media Feeder (Hereinafter referred to as the Auto Media Feeder) model of the color inkjet plotter JV3-250SP. -
Page 5: Table Of Contents
TABLE OF CONTENTS Foreword..........................ii On This Operation Manual ........................ii Features ..........................iv Safely Precautions During Installation ................v Safety Symbols used in manual ......................v Precautions in installation ........................vii CHAPTER 1 Before Use Where to Install the Unit ....................1.2 Configuration and Function .................. -
Page 6: Features
Features The features of the Auto Media Feeder are described below. Together with the method of operation of the unit explained in this Operation Manual, they help you understand how to use the Auto Media Feeder properly. The Auto Media Feeder can provide fine image even when using a heavy rolled media There are miscellaneous media selling at present. -
Page 7: Safely Precautions During Installation
Safely Precautions During Installation Safety Symbols used in manual Safety Signal Words Pictorial signs are used in this Operation Manual for safe operation of and in prevention of damages to the Auto Media Feeder. Safety signal words and their meanings are given below. Read and fully understand before reading the text. - Page 8 WARNING • Be sure to setup the appropriate air-moving system in case of using the device in a closed room or a room with bad ventilation. • The ink used for this device contains organic solvent. Since the ink is flammable, never use fire when using the device.
-
Page 9: Precautions In Installation
Precautions in installation CAUTION A place that is not horizontal A place exposed to direct sunlight A place in which temperature and humidity A place that vibrates vary by a great margin Use the device under the following environment. Operating environment: 68 to 95 F (20 to 35°C) 35 to 65% (Rh) - Page 10 - viii -...
-
Page 11: Chapter 1 Before Use
CHAPTER 1 Before Use This chapter describes the name and function of each section of the Auto Media Feeder. Table of contents Where to Install the Unit ................1.2 Configuration and Function ................1.3... -
Page 12: Where To Install The Unit
580 mm 4760 mm Working environmental temperature The plotter (JV3-250SP) and the Auto Media Feeder (AMF-250) should be used at 68-77 F (20- C) within the quality guarantee to implement a stable printing work • This unit cannot be installed by the customer. Its installation should be entrusted to our service personnel. -
Page 13: Configuration And Function
Configuration and Function *For details about the name of the plotter, refer to the operation manual for the plotter. Name Function Media Holder Used when placing the light roll paper. Guide pipe press left/right Lock guide pipe to prevent lifts at the media. Guide pipe This pipe is inserted into the media center to set up the media to the Auto Media Feeder. - Page 14 - 1.4 -...
- Page 15 CHAPTER 2 Operation This chapter describes a basic installation to operate plotting. Table of contents Operation ....................... 2.2 Switching on the Power Supply ..............2.3 Set the Switch-Changeover/Action..............2.4 Check the Head Height ................. 2.6 Set the Media on the Auto Media Feeder ............2.7 When drawing from the edge of the media feeding forward to the plotter ..2.14 Set the Heater Temperature ................
-
Page 16: Operation
For details on each item, refer to the reference page. There are two types of the AMF-250 Auto Media Feeder-the Standard Type attached with the JV3- 250SP plotter on factory shipment and the Option Type added with an existing JV3-250SP. -
Page 17: Switching On The Power Supply
Switching on the Power Supply The Auto Media Feeder does not have the power switch. When the power switch of the plotter is turned on, the power switch of the Auto Media Feeder is turned on. Make sure that AC code is connected to the plotter. Turn on the [Main Power switch] located on the rear face of the plotter and the [Power Switch] located on the front face of the plotter to start the operation of the plotter and the Auto Media Feeder. -
Page 18: Set The Switch-Changeover/Action
Set the Switch-Changeover/Action STEPS: 1. After turning on the power switch of the plot- ter, setup the operation switch of the Auto Media Feeder. The operation switch is located on right inferior outer of the Auto Media Feeder. Operation switch 2. - Page 19 3. Make sure the letter "Back Print" and "Surface Print" on the Action Switch of the Auto Media Feeder. Operate the switch that is applicable to take-up direction according to print facing inside or outside (take-up direction). Action switch Changeover switch Action Switch Select the operations;...
-
Page 20: Check The Head Height
Check the Head Height Before starting printing, check the head height. For details, refer to [Adjusting the head height] P.2-7) in the operation manual for the plotter. - 2.6 -... -
Page 21: Set The Media On The Auto Media Feeder
Set the Media on the Auto Media Feeder Execute the following procedure to setup the media to the Auto Media Feeder. • When setting (changing) the media, it must be carried out by at least two persons. • Be careful about direction of the setting media, as the direction is executed by the print facing outside (Surface Print) and the print facing inside (Back Print). - Page 22 STEPS: Roll guide 1. Loosen the grip bolt holding the press at the right and left of the roll guide. Grip bolt 2. Turn over the press toward and loosen the roll guide to the plotter side. Press plate Roll guide 3.
- Page 23 4. Open the press of the left and right guide pipe Guide pipe press of the Auto Media Feeder. Pull out the guide pipe according to the arrow direction. Guide pipe • Be careful not to catch a finger when handling the guide pipe.
- Page 24 Hook 7. Remove the hook. Move the roll guide forward. Loosen the grip bolt and lock by a fixing plate. Grip bolt Roll guide Fixing plate 8. After setting the media to the Auto Media Guide pipe press Feeder (take up), leave the right and left guide Media pipe press open and feed the media forward to the plotter.
- Page 25 10. Keep the right and left press cover of the guide pipe opened, and turn the guide pipe by hand as shown until to roll it (take it up) about 50cm. Taking up about 50cm keeps the media almost parallel. •...
- Page 26 Media press 13. Pinch both edges of the media with Media press to prevent the media edge curled. Media 14. Select Auto. The Action switch is to be set [Roll out] (when the media backside printing). • Be sure to select the Auto above before drawing the media, or the Auto media feeder does not work during drawing.
- Page 27 • For using the take-up unit, refer to [Using the take-up unit] ( P.2.41) in the operation manual for the plotter. • For setting the second small roll media on the take-up unit, refer to [Setting two roll media] ( P.2.25) in the operation manual for the plotter.
-
Page 28: When Drawing From The Edge Of The Media Feeding Forward To The Plotter
When drawing from the edge of the media feeding forward to the plotter You need to operate the panel of the plotter and the Auto Media Feeder. • Operation on the plotter side. Feedback the media of the plotter at the edge of the media back to the border of drawing and then press ENTER key to set the origin of the media. -
Page 29: Set The Heater Temperature
Set the Heater Temperature For setting the heat temperature, refer to [Heater-Temperature control] ( P.2.33) in the operation manual for the plotter. Plot the Test Pattern For plotting the test pattern, refer to [Plot the test pattern] ( P.2.36) in the operation manual for the plotter. -
Page 30: Adjust The Media Correction
Adjust the Media Correction For correcting the media, refer to [Correcting the media feed rate [MEDIA COMP.]] ( P.2.38) in the operation manual for the plotter. Start the Plotting Operation For plotting, refer to [plotting an image from source data] ( P.2.40) in the operation manual for the plotter. -
Page 31: Completion
Completion For the media cutting and display of the operation panel, refer to [After completing the plotting operation [MEDIA CUTTING]] ( P.2.41) of the operation manual for the plotter. - 2.17 -... - Page 32 - 2.18 -...
-
Page 33: Chapter 3 Daily Cleaning
CHAPTER 3 Daily Cleaning This chapter describes daily cleaning. Table of contents Routine Maintenance ..................3.2 - 3.1 -... -
Page 34: Routine Maintenance
Routine Maintenance Principally the regular cleaning is not allowed for the Auto Media Feeder, but observe carefully the following items. 1. Be careful not to allow stain to adhere to the long shaft of the guide roll P.1.3) connected to the media. 2. -
Page 35: Appendix
APPENDIX This indicates the method of removing the Auto Media Feeder from the plotter and the specification of the Auto Media Feeder. Table of contents Remove the Auto Media Feeder..............A.2 Basic Specification ..................A.5... -
Page 36: Remove The Auto Media Feeder
Remove the Auto Media Feeder When moving the plotter to install or when the Auto Media Feeder must be removed from the plotter, replace following the procedure described below. • The operatiob work to remove the Auto Media Feeder from the plotter should be carried out by at least parsons. - Page 37 3. Remove the signal cables and the power cable connected from the Auto Media Feeder and the plotter. Cable connector Feeding power 4. Two signal cables and one power cable are supply connector connected to the connector at the backside lower right bottom of the plotter.
- Page 38 6. Remove the Auto Media Feeder from the plot- ter. • For setting the Auto Media Feeder to the plotter, execute an inverse procdure of step 1 to 6 of [Remove the Auto Media Feeder]. - A.4 -...
-
Page 39: Basic Specification
Basic Specification Item AMF-250 Feature The Auto media Feeder (feeding unit) separable from the JV3- 250SP. The specification of the tension bar to improve the surface irregu- larity caused by the heavy media feeding Complant media For the specification of the JV3-250SP plotter... - Page 40 - A.6 -...
- Page 42 Printed in Japan D201222-1.00-20042005 © MIMAKI ENGINEERING Co., Ltd. 2005...
