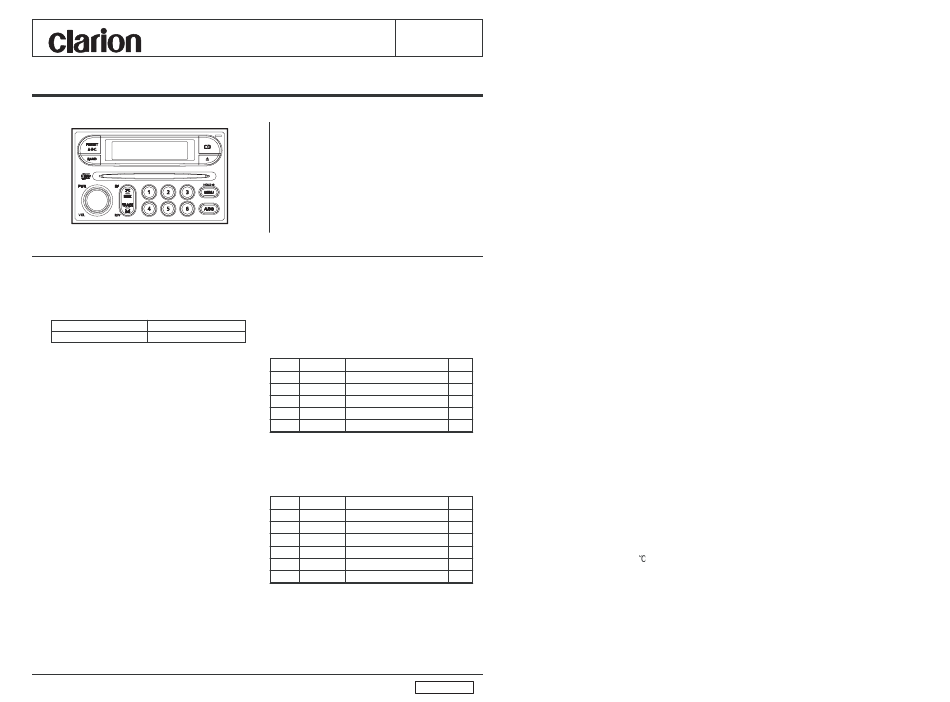

Clarion PP-2449V-H Service Manual

Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
ORIGINAL SERVICE MANUAL
This additional service manual is designed to be used to-
gether with Original model.
Original model Manual No.
PP-2449V-B 298-6104-01
DIFFERENCE FROM ORIGINAL
MODEL
1. Exploded view/parts list
Main section
CD mechanism section
2. The parts of equalizer in circuit diagram of Main PWB
section
NOTES
* We cannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair
it by component parts base. Parts which are not men-
tioned in service manual are not supplied.
* Specifications and design are subject to change without
notice for further improvement.
COMPONENT
1. Main unit ------------
Published by Service Dept.
298-6244-00 Mar.2005
Printed in Japan
Service Manual
NISSAN MOTOR Genuine
AM/FM Radio CD Player
PP-2449V-H
Model
(Genuine No. 28185 EA021)
(ID No. CY14B)
DIFFERENCE EXPLODED VIEW
/ PARTS LIST
Main section
(Refer to page 5 of the original service manual.)
The following parts are difference parts.
NO. PART NO. DESCRIPTION
1 940-7962-94 ESCUTCHEON-ASSY
18 286-6126-74 SETPLATE
20 379-1333-30 INDICATOR(LCD)
26 017-0433-95 PILOTLAMP(14V40mA)
27 017-0447-86 PILOTLAMP(8V105mA)
CD mechanism section 929-0220-86
(Refer to page 7 of the original service manual.)
The following parts are difference parts.
NO. PART NO. DESCRIPTION
1 966-0595-26 DRIVE PLATE ASSY
14 966-1722-20 SH-RACK ASSY
18 621-1716-20 RACK
23 621-1731-20 IDLE CASE
1
39 621-1726-20 ROLLER SLEEVE
45 621-1729-20 SH-BASE
- 1 -
To engineers in charge of repair or
inspection of our products.
Before repair or inspection, make sure to follow the
instructions so that customers and Engineers in
charge of repair or inspection can avoid suffering
any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent character-
istics when replacing them.
The use of unspecified parts shall be regarded as remod-
eling for which we shall not be liable. The onus of product
liability (PL) shall not be our responsibility in cases where
an accident or failure is as a result of unspecified parts
being used.
2. Place the parts and wiring back in their original positions
after replacement or re-wiring.
For proper circuit construction, use of insulation tubes,
bonding, gaps to PWB, etc, is involved. The wiring con-
nection and routing to the PWB are specially planned us-
ing clamps to keep away from heated and high voltage
parts. Ensure that they are placed back in their original
positions after repair or inspection.
If extended damage is caused due to negligence during
repair, the legal responsibility shall be with the repairing
company.
3. Check for safety after repair.
Check that the screws, parts and wires are put back se-
curely in their original position after repair. Ensure for safety
reasons there is no possibility of secondary ploblems
around the repaired spots.
Q'TY
If extended damage is caused due to negligence of repair,
1
the legal responsibility shall be with the repairing company.
1
4. Caution in removal and making wiring connection to the
1
parts for the automobile.
5 Disconnect the battery terminal after turning the ignition
key off. If wrong wiring connections are made with the bat-
2
tery connected, a short circuit and/or fire may occur. If ex-
tensive damage is caused due to negligence of repair, the
legal responsibility shall be with the repairing company.
5. Cautions regarding chips.
Do not reuse removed chips even when no abnormality is
observed in their appearance. Always replace them with
new ones. (The chip parts include resistors, capacitors,
Q'TY
diodes, transistors, etc). The negative pole of tantalum
1
capacitors is highly susceptible to heat, so use special care
when replacing them and check the operation afterwards.
1
6. Cautions in handling flexible PWB
1
Before working with a soldering iron, make sure that the
1
iron tip temperature is around 270 . Take care not to ap-
2
ply the iron tip repeatedly(more than three times)to the
1
same patterns. Also take care not to apply the tip with force.
7. Turn the unit OFF during disassembly and parts replace-
ment. Recheck all work before you apply power to the unit.
8. Cautions in checking that the optical pickup lights up.
The laser is focused on the disc reflection surface through
the lens of the optical pickup. When checking that the la-
ser optical diode lights up, keep your eyes more than 30cms
away from the lens. Prolonged viewing of the laser within
30cms may damage your eyesight.
PP-2449V-H
9. Cautions in handling the optical pickup
The laser diode of the optical pickup can be damaged by
electrostatic charge caused by your clothes and body. Make
sure to avoid electrostatic charges on your clothes or body,
or discharge static electricity before handling the optical
pickup.
9-1. Laser diode
The laser diode terminals are shorted for transporta-
tion in order to prevent electrostatic damage. After
replacement, open the shorted circuit. When remov-
ing the pickup from the mechanism, short the termi-
nals by soldering them to prevent this damage.
9-2. Actuator
The actuator has a powerful magnetic circuit. If a
magnetic material is put close to it. Its characteris-
tics will change. Ensure that no foreign substances
enter through the ventilation slots in the cover.
9-3. Cleaning the lens
Dust on the optical lens affects performance. To
clean the lens, apply a small amount of isopropyl
alcohol to lens paper and wipe the lens gently.
