Clarion PN-2302M-C Service Manual

SPECIFICATIONS

■
Output level: 3.0V
Frequency characteristics:
17 Hz to 20kHz (
Channel separation: More than 70dB
(at 1kHz,0dB DISC,Filter:20kHz LPF)
Distortion: Less than 0.02%
(at 1kHz,0dB DISC,Filter:20kHz LPF)
Power supply voltage: DC13.2V(10.8 to 15.6V)
Negative ground
Current consumption: 0.6A (during playing)
Dimensions(mm): 184(W)
Weight: approximately 1.6kg
Specification and design are subject to change without
※
notice for further improvement.
NOTES
■
Model PN-2302M has an anti-theft system.The special
・
equipment is necessary to operate the unit without con-
necting the vehicle.
We can not supply PWB with component parts in prin-
・
ciple. When a circuit on PWB has failure, please repair
it by component parts base. Parts which are not men-
tioned in service manual are not supplied.
Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
2dB(at 1kHz,0dB DISC)
±
2dB)
±
56(H) 170(D)
× ×
Tel: 03-3400-1121
Service Manual
NISSAN Automobile Genuine

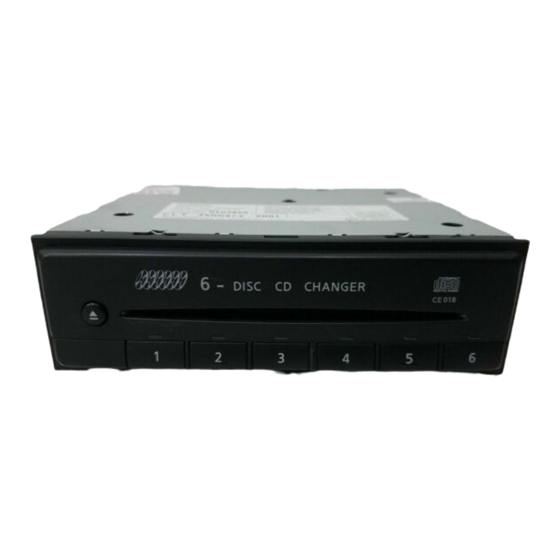

6-Disc CD Changer Deck
PN-2302M-C
Model
(Genuine No.28184 4M500/ID No.CE008)
PN-2302M-F
Model
(Genuine No.B8184-89961/ID No.CE008)
PN-2302N-A
Model
(Genuine No.28184 3W400/ID No.CE018)
COMPONENTS
■
PN-2302M-C
PN-2302N-A
Main unit
PN-2302M-F
Main unit
Parts bag
Machine screw(M5
To engineers in charge of repair or
■
inspection of our products.
Before repair or inspection, make sure to follow
the instructions so that customers and Engineers
in charge of repair or inspection can avoid suf-
fering any risk or injury.
1. Use specified parts.
The system uses parts with special safety features against
fire and voltage. Use only parts with equivalent charac-
teristics when replacing them.
The use of unspecified parts shall be regarded as re-
modeling for which we shall not be liable. The onus of
product liability (PL) shall not be our responsibility in cases
- 1 -
Published by Service Dept.
298-5827-00 Feb.2000 B
Printed in Japan
−−−−−
−−−−−
−−−−−
8) 714-5008-41
×
PN-2302M/N
1
1
4
