10BaseT Crossover Cable
Specifications
The 10BaseT cable shipped with the PathBuilder S21x switch has the following
specifications:
Connector Pinout
Four of the pins are used, as shown below:

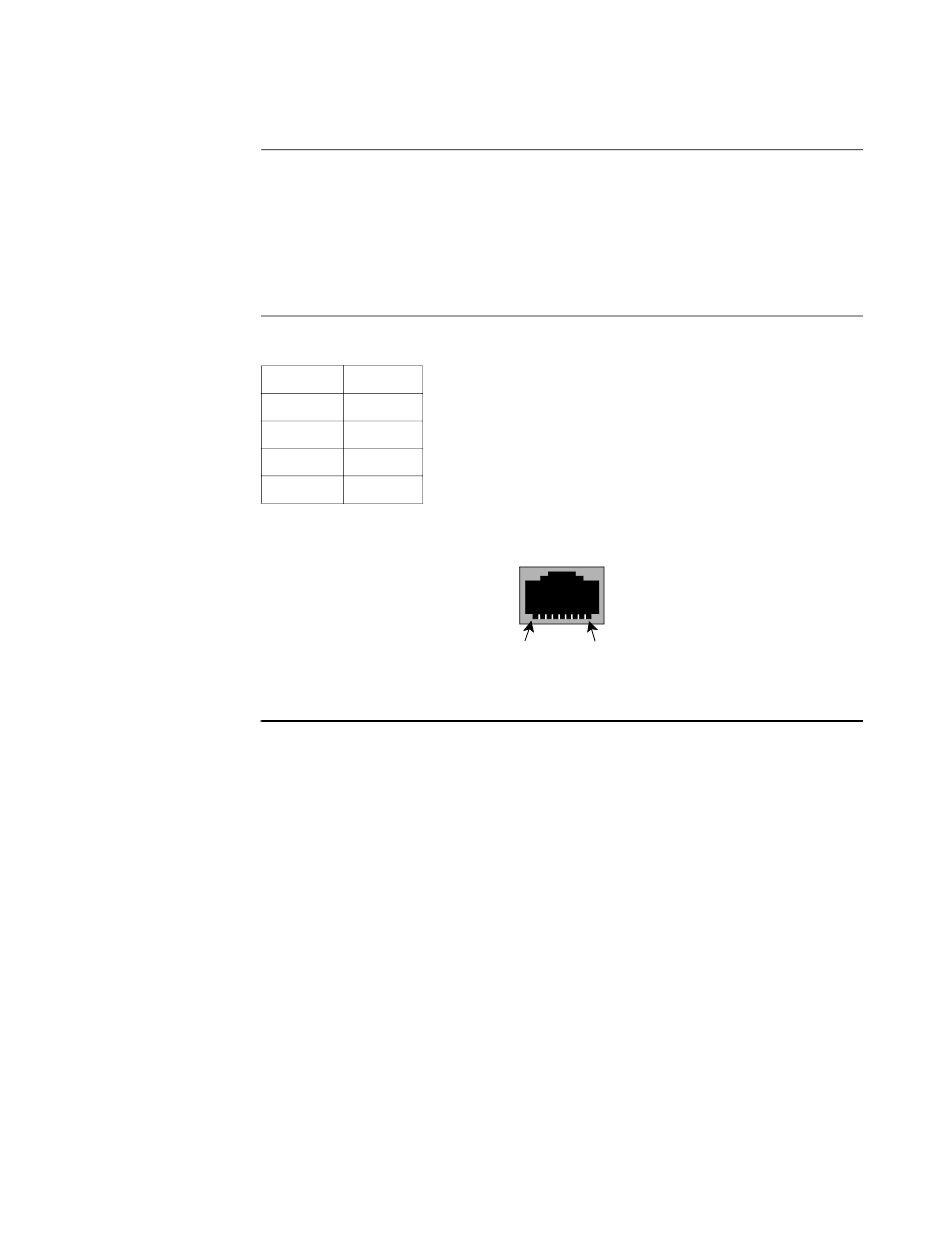

The connector pins are numbered indicated in the following diagram:
L
Figure B-1. RJ45 Pinout
PathBuilder S21x Switch Cabling
All manuals and user guides at all-guides.com
• Cable Type: Category 3 or better
• Connectors: RJ45 to RJ45
• Color: Gray
• Part Number: 61798-01
Pin
Pin
1
3
2
6
3
1
6
2
10BaseT Crossover Cable
Pin 8
Pin 1
B-5
