Summary of Contents for Wisenet TAW-4000H16

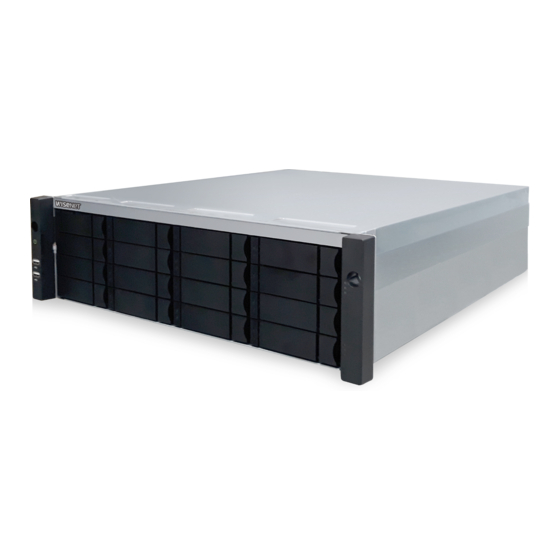

- Page 1 Wisenet TMS Appliance Quick Guide TAW-4000H16...
- Page 2 Wisenet TMS Appliance Quick Guide Copyright ©2019 Hanwha Techwin Co., Ltd. All rights reserved. Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company.
-
Page 3: Table Of Contents
Table of Contents OveRvieW Before reading the user manual Configuration and Tips of User Manual Package Contents (TAW-4000H16) Part Names and Functions (TAW-4000H16) HDD inSTAllATiOn 10 How to Install HDD 11 How to Attach HDD exeCuTiOn 13 Power Supply 14 How to create a logical drive... -
Page 4: Before Reading The User Manual
Overview Before reading the user manual Be sure to read the following before reading the user manual. • This manual is copyrighted by the manufacturer. • This manual cannot be reproduced without permission. • We are not responsible for any damage caused by using products other than the standard product or using the product for the purpose other than mentioned in the manual. - Page 5 Checking the Installation Environment This product is a state-of-the-art security equipment with a high capacity hard disk and important circuitry inside. If the internal temperature of the product is too high, the life span may shorten or failure may occur. Refer to the following recommendations before installation.
-
Page 6: Configuration And Tips Of User Manual
This User Manual is the default setting for user's guide. The User Manual contains the following in order: If you want to apply the modification to the actual operating environment, refer to the Wisenet TMS User Manual and the System User Manual. -
Page 7: Package Contents (Taw-4000H16)
Package Contents (TAW-4000H16) Mouse Power cord Keyboard Quick Guide HDD mounting screws Hard disk tray label Accessories other than the NVR body are consumables and are excluded from the warranty. All manuals can be downloaded from our homepage (www.hanwha-security.com). Rack mounting brackets for mounting in the server rack are sold separately. -
Page 8: Part Names And Functions (Taw-4000H16)
Overview Part Names and Functions (TAW-4000H16) Front Power button Power and status LEDs USB Port Hard disk tray 8_ Overview... - Page 9 rear Power input System fan AUDIO <IO Ports> AUDIO name PS/2 Mouse/keyboard port VGA port DVI port HDMI port USB 3.0 (4 ports) Optical SPDIF output port Audio IO port 1000BASE-T rJ-45 (2 ports)
-
Page 10: How To Install Hdd
HDD Installation How to Install HDD ` HDD installation method is as follows. 1. There are many factors inside the product that can cause electric shock, accident, or product failure. So unplug the power and install it. Disconnect both power cords. 2. -
Page 11: How To Attach Hdd
How to Attach HDD How to remove or attach hard disk tray to/from the enclosure 1. Pull the handle to release the latch, then grasp the handle and pull straight out. 2. Place the other hand under the hard disk tray so that it will not fall when you remove or mount it. ... - Page 12 HDD Installation Hard disk tray number Each hard disk tray of the enclosure is numbered as follows. TAW-4000H16 HArD DISk TrAy NUMBErS ➊ ➋ ➌ ➍ ➎ ➏ ➐ ➑ ➒ ➓ � � � � � � 12_ HDD Installation...
-
Page 13: Power Supply
Execution Power Supply Plug all of the power cords into the back of the product, and press the power button. If the product does not turn on, check the following. 1. Make sure that all the power cords have been plugged in fi rmly, and that they meet the required power specifi cations. -
Page 14: How To Create A Logical Drive
Execution How to create a logical drive This chapter describes how to configure logical drives. 1. Click the TMS Service Manager icon on the desktop to launch it. 2. After you click the Stop Service button, check if the service status has changed to Stopped, and exit. If the service status is shown as Stopped, just exit. -
Page 15: How To Configure Advanced Logical Drives
How to configure advanced logical drives This is a method of configuring a logical drive to maximize the performance of this equipment. 1. To ensure disk availability, select the Spare Drive menu to create a spare drive. 2. From the Create Disk Array menu, choose Advanced Confi guration. Disable the Use Media Traversal option in the Create Disk Array menu that appears after selecting, select the number of physical drives, and go to the next step. - Page 16 6. Check RAID-configured disks in Windows Disk Management. Format the configured disks only after confirming Wisenet TMS Service Manager has been stopped. If you formatted disks while running the service, boot the device. 16_ Execution...
-
Page 17: How To Launch Wisenet Tms
How to Launch Wisenet TMS This chapter describes how to launch Wisenet TMS. For more information on how to use Wisenet TMS, refer to the additional manual on the desktop. 1. Click the TMS Service Manager icon on the desktop to launch it. - Page 18 Execution 5. On the login screen, click the Login button. 6. In the initial password setup screen, enter the initial password and click Apply. 18_ Execution...
-
Page 19: Menu Description
Menu Description The menu of TMS Console consists of tabs. You can freely move between the menu tabs and select a desired menu item, or form a separate page to operate it like a separate program. 1. Run the TMS Console program. 2. -
Page 20: Product Specification
Display Split screens 1/4/9/16/25/36/49/64/Auto Mode Display Compression method H.264, H.265, MPEG-4, MJPEG Performance Operating System Windows 10 IoT Enterprise Software Wisenet TMS preinstalled Archive Max. 128 Device/Server Clustering Max. 28 Server(Max. 10,000 ch) Remote user Max. 35/Server System Protocol Wisenet... - Page 21 Category TAW-4000H16 Playback Max. 150 Mbps bandwidth Resolution CIF ~ 12 MP Simultaneous Max. 16 ch playback Fisheye dewarping Console Video search Start/stop, Pause, Faster/Slower forward/backward, Playback control Step Forward/Backward, Skip Forward/Backward Display Video, Map, Search result, Time line Export fi le format...
- Page 22 Product Specification Operating Windows 10 IoT Enterprise System Processor Xeon E3 v5 (3.6 GHz) Memory Unbuffered ECC DDR4 8 GB x2 OS disk M.2 SSD 128 G Hard disk 3.5” 16 EA Hot Swap (Max. 160 TB) RAID 0/1/5/6 Monitor VGA, DVI, HDMI output Hardware...
- Page 23 Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin’s devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.
- Page 24 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...
