Summary of Contents for Wisenet PRN-6400DB4

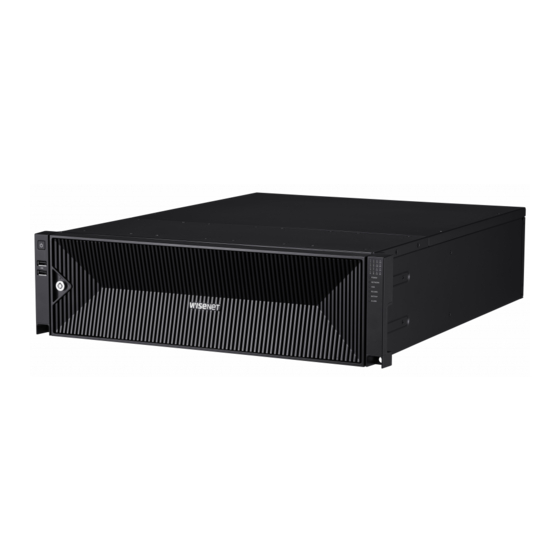

- Page 1 NETWORK VIDEO RECORDER Quick Guide PRN-6400DB4/PRN-6400B4/PRN-3200B4 PRN-6405DB4/PRN-6405B4/PRN-3205B4...
-
Page 2: Package Contents
● Provides AI function (Wisenet Non-AI P/X series camera, X Lite excluded) ● Provides the function of searching for AI faces (when using Wisenet AI camera) ● Provides the function of recognizing and searching for AI vehicle license plates (PRN-6400DB4/PRN-6400B4/PRN-3200B4) ●... -
Page 3: Installing The Hdd
Installing the HDD Installing the Rack Use the front cover lock key to unlock the cover. Press the orange button on the hard disk bracket Rack Installation Requirements and Reference Dimensions Grab the front cover with both hands and pull it to the left and pull forward to separate the main to the left to remove it. - Page 4 Recommended rack dimensions Precautions when Using Sliding Shelves Rack back When removing a shelf, fix the rack to the ground Avoid leaning on the installed product or place an so that it does not get toppled. object on it while its shelf is pulled out. Back mounting flange Recorder Front mounting flange...
-
Page 5: Select The Language
How to Install Rack Install Wizard Setup As shown below, proceed through each step of the <Install Wizard>. Install Wizard can only be accessed at factory Mount the fixed or sliding shelf onto the 19-inch rack. reset. If you do not want to proceed, click <Exit>. ■... -
Page 6: Date/Time Setup
Recorder ID/PW Setup Date/Time Setup Set the date, time, time zone, and DST and then click <Next>. Sets the administrator's password. ※ Click < Camera Register > to view the basic guide for setting a password. Refer to the password setup rules. Camera ID/PW Setup Registers the searched network cameras. -
Page 7: Record Setup
Explore Screen Configuration Record Setup The recorder screen consists of the following. You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event. You can check frame rates and data transfer amount of Full Frame and Key Frame recordings for each channel, and ■... - Page 8 Set up and Run the Layout 2-1 Search The layout set on the live screen can also be used for time search and can be searched and played according to the channel order and channel combination set by the user. ■...
- Page 9 > at the bottom of the screen. Select a layout. Select a channel. Set the time, device, and format for export. PRN-6400DB4 Click the <Check capacity> button to see if you can export. Click the <Start> button to proceed with the export. PRN-6400DB4...
- Page 10 Using P2P Service From now on, when you run the WiseNet mobile application saved to your smartphone, you can easily monitor with your smartphone as you are automatically connected to the recorder. This function is available only for products that support P2P. To find products that support P2P, see ‘Products supporting each feature (Page 4)’...
- Page 11 Connecting to a Network Using a Router Checking the recorder connection from the PC Enter the IP set in the recorder menu in the local PC address bar to go to the web viewer screen of the recorder. If you want to add 1-3 PCs and recorders in an environment using xDSL/Cable modem, you can use the router with only one Internet line.
- Page 12 DDNS address even in the dynamic IP environment. product is set to <ON>. Wisenet DDNS Setup PRN-6400DB4 Since you will be accessing the recorder remotely, set up a Wisenet DDNS account first using a PC. Click <Sign Up>. Open a browser, < Wisenet DDNS Setup screen>...
- Page 13 Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.
