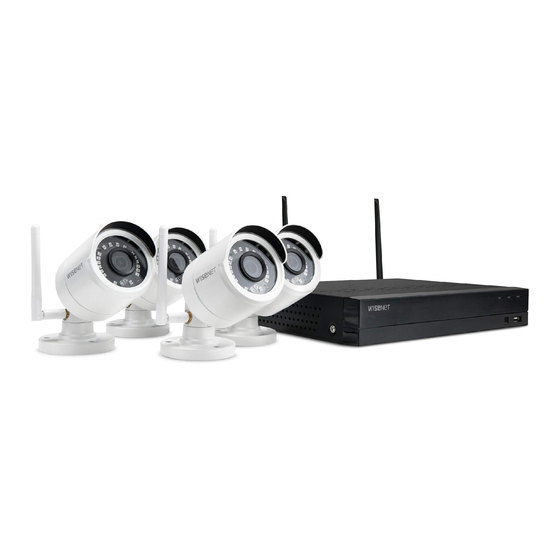

  • Page 1 NETWORK VIDEO RECORDER User Manual SNK-B73041BW...

  • Page 2: Table Of Contents

    Overview of NVR Contents overview of nvr Contents Safety Instruction Front Panel Rear Panel Remote Controller Install Hard Drive Connect external equipment Connect NVR nvr Boot up System Initialization Login Startup Wizard Main Interface nvr Menu Popup Menu Main Menu Guide Setup Registering with DDNS Menu Lock...

  • Page 3: Safety Instruction

    safety instruCtion Please carefully read the following safety instruction so as to avoid personal injuries and prevent the equipment and other connection devices from being damaged. 1. Please use the power supply enclosed or specified by the manufacturer. Never operate the equipment by using unspecified power supply. 2.

  • Page 4: Front Panel

    Overview of NVR front panel NVR is short for Network Video Recorder. a b c Type Key or indicator Identification Functions If the "Red" indicator flashes, the hard drive is being read or written to. HDD indicator The red light will illuminate when HDD is installed. Status lamp Network indicator Display network connection and data transfer status.

  • Page 5: Rear Panel

    rear panel snr-73201w CAUTION RISK OF ELECTRI SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR OUTDOOR USE TO RAIN OR MOISTURE.

  • Page 6: Remote Controller

    Enter into record search menu/Play key Record key Stop manual record; stop playing Pause key There is no function of Mute button. SNK-B73041BW is a 4 channel NVR. Please press 1 to 4 key to select channel. 6_ Overview of NVR...

  • Page 7: Install Hard Drive

    install hard drive HDD is pre-installed. If you want to replace hard disk drive, please refer to the following instruction. Please do not remove the hard drive when NVR is operating. installation of hard drive 1. Using a screwdriver, remove the screws from the side and back panels.

  • Page 8: Connect External Equipment

    Overview of NVR ConneCt external equipMent Connect your monitor to the NVR using the VGA or HDMI video cable. Connect NVR to the power supply adapter provided. After all connections are completed, plug the NVR in to perform function checks. The appearance of power adaptor differs depending on sales region.

  • Page 9: Nvr Boot Up

    NVR Boot up systeM initialization After connecting the NVR power cable to wall outlet, the NVR system initializing screen will appear. It may take 40 seconds to start up, and the screen may beep 5~6 times. login 1. The login dialog appears. 2.
  • Page 10 NVR Boot up use virtual Keyboard Virtual keyboard window will be displayed for input. Click on the desired characters to apply them. Press < > to switch to input of upper-case letters. Press < > again to switch to input of special characters. The virtual keyboard is used in the same way as with physical keyboard.
  • Page 11 4. Resolution : For VGA output or HDMI output, the optional resolution includes 1024×768, 1280×1024, 1440×900, 1280×720, 1920×1080 5. Mobile : If you scan a QR code using WiseView, the device ID displayed in the NVR will be automatically reflected in the Mobile Viewer ID, and you can use the Mobile Viewer immediately by entering the ID/password of the NVR.

  • Page 12: Main Interface

    NVR Boot up Main interfaCe In real-time preview mode: right click on any area to access the desired menu. Right click on it to open a context menu, whose menu items may vary depending on the specific condition, such as sign-in, sign-out, split screen mode and various operation conditions. Left click on any channel to access shortcut menu, where operations such as image capture, recording and image zoom-in are available.
  • Page 13 Component Name Function Stream Switch Mainstream or Substream optional. Pair Do the pairing of camera and NVR. Main Menu Access the main menu 4-Channel Layout Display four channels of video. Auto SEQ Press this button to switch the screen mode in sequence. Play Access video retrieval page.

  • Page 14: Nvr Menu

    NVR Menu popup Menu After finishing system initialization, right click the mouse on preview interface or slide the mouse to the bottom of screen to enter into Pop-up Menu. Now you could perform parameter setting and operate on Main Menu, Multi-screen, Record Search, Sequence and Brightness settings.

  • Page 15: Main Menu Guide

    Main Menu guide Channel Wireless Camera Live Live Channel Motion Motion Video Cover Video Cover Record Record Record Schedule Record Capture Capture Capture Schedule Motion Motion Alarm Exception Exception General General PPPoE Port Configuration Network Setup DDNS DDNS Email Configuration Email Email Schedule Disk...

  • Page 16: Setup

    NVR Menu setup On LIVE mode, click the mouse left button, or [Menu] button on the remote controller, or click [ ] icon on the toolbar to enter the main menu screen. If system interface is locked, refer to page 32 to unlock by entering your password. In Main Menu mode, you can make settings for Parameter, Record Search, Device, System, Advanced and Shutdown.
  • Page 17 Motion Go to "Setup" ; "Channel" ; "Motion" ; "Motion" to enter into the interface. • Channel : Select Channel. • use : You can select whether or not to use the use. • sensitivity : Support 1-8 level, 8 is the highest level. • Motion zone : Set an area where motion is detected.
  • Page 18 NVR Menu record record Go to "Setup" ; "Record" ; "Record" ; "Record" to enter into the interface. • Channel : Set the desired channel in the drop-down menu • record : Enable/disable record • prerecord : Enable to pre-record motion detection record. record schedule Go to "Setup"...
  • Page 19 Capture Go to "Setup" ; "Record" ; "Capture" ; "Capture". • Channel : Select capture channel • enable Capture : Enable/Disable auto capture. • stream type : Select MainStream or SubStream. • lnterval : 4s / 8s / 25s / 1Min / 10Min / 30Min / Hour • Manual Capture : Enable/Disable manual capture You can click on the icon [ ] in the live window to manually capture the image with...
  • Page 20 NVR Menu alarm Motion Go to "Setup" ; "Alarm" ; "Motion" ; "Motion" to enter into the interface. • Buzzer : When detecting object moving, buzzer makes alarms (disable, 10 seconds, 20 seconds, 40 seconds and 60 seconds). • record : When object motion is detected, the record channel setting will be activated.
  • Page 21 network general Go to "Setup" ; "Network" ; "General" ; "General" to enter the interface. Select the network connection option (PPPoE, DHCP, Static) to set the port. User can view and do the recording, playback or backup of the video remotely. Take DHCP as an example.

  • Page 22: Registering With Ddns

    NVR Menu registering with ddns to register your product with the wisenet ddns 1. Visit the Wisenet DDNS web site (http://ddns.hanwha-security.com) and sign in with a registered account. 2. From the top menu bar, select <My ddns>. 3. Click the [register product] tab.
  • Page 23 e-mail Go to "Setup" ; "Network" ; "Email" ; "Email Configuration" to enter into the menu interface. Receive or Send NVR alarm Email and set parameters like Email address, SSL, Email Enable, and Interval. • encryption: Disable, SSL, TLS and Auto optional. Auto means it can detect the encryption type automatically.
  • Page 24 NVR Menu Click on "settings--Forwarding and POP/IMAP" Click on "Enable IMAP--Save Changes" e-mail schedule Go to "Setup" ; "Network" ; "Email" ; "Email Schedule" to make Email schedule. Select the channel and the date to be set. One week's schedule can be set. The record schedule of the current channel can be copied to any other channel or all channels.
  • Page 25 device disk Go to "Setup" ; "Device" ; "Disk" to enter into the interface. When HDD is connected, the system will automatically detect if the HDD is OK or not; if the HDD needs to be formatted, select the HDD and format it. If the system detects the HDD is OK, the HDD status will be shown as "OK". • no.
  • Page 26 NVR Menu system general Go to "Setup" ; "System" ; "General" ; "General" to enter into the interface. User may set Device Name, Device ID, Language, Video Format, Menu Timeouts and Show Wizard on this page. Live restriction : If you want to use the permission setting of Live View when turning the power on/off, please check.
  • Page 27 output Configuration Go to "Setup" ; "System" ; "General" ; "Output Configuration" to enter into the interface. • video output : Live Output • seq dwell time : Sequence time is set 5 seconds by default. User may set it as required up to 300 seconds • vga/hdMi resolution : For VGA output or HDMI output, the optional resolution includes 1024×768, 1280×1024, 1440×900, 1280×720, 1920×1080...
  • Page 28 NVR Menu user edit User may enable or disable the function or set password. Maintenance Go to "Setup" ; "System" ; "Maintenance" ; "Log". User may search log information in different period of time. Click "Backup" to save all the log information. 28_ NVR Menu...
  • Page 29 load default Go to "Setup" ; "System" ; "Maintenance" ; "Load Default" to enter into the interface. If [Load Default] is selected, you can initialize the system to the ex-factory default. Click "Load Default" and select items to be restored. You can restore the Channel, Record, Alarm, Network, Device, System of wireless NVR to ex- factory default.
  • Page 30 NVR Menu auto reboot Go to "Setup" ; "System" ; "Maintenance" ; "Auto Reboot" to enter into the interface. Enable the auto maintenance function to reboot system regularly at every day/week/month. When Auto Reboot is enabled, NVR should be in the main interface and no user operation.
  • Page 31 information information Go to "Setup" ; "System" ; "Information" ; "Information" to enter into the interface. network state Go to "Setup" ; "System" ; "Information" ; "Network State" to enter into the interface. Displays the network connection status. shutdown Click [ ] icon ;...

  • Page 32: Menu Lock

    NVR Menu Menu loCK In consideration of system safety, user may click the icon [ ] on the toolbar when he leaves away from NVR and the system interface will be locked. User has to input Device ID, User Name and Password on the login interface to unlock. In case that the password is forgotten, contact the technical personnel.

  • Page 33: Search

    Search searCh record search general Go to "Search" ; "General" to enter into the interface. • Channel: Select the channel you want to search. • search type: Select the type the playback record. There are three options: All, Normal and Motion. • playback Channel: Click a date and select corresponding channel in Playback Channel.
  • Page 34 Search • detailed operation Fixed time axis: If you select [ ] option, that means the processing control bar covers two hour of video content. The time range refers to 1 hour before and after the middle point. • Clip and backup: When it is playback, the [ ] icon will appear in the Play Control bar.
  • Page 35 play Backup files 1. Copy backup files to the computer. 2. Open SVideo player and click [ + ] or [ For example, if you want to choose *.264, *.avi, *.mp4, add backup file and select a file to play. Play: Click to play file Pause: Click to pause.
  • Page 36 Search Capture Settings: Set the path to save image It is recommended to use SVideo Player contained in compact disk for playback. Use of any other player may cause compatibility problem. sub-periods Go to "Search" ; "Sub-periods" to enter into the interface. picture Go to "Search"...

  • Page 37: Web Application Manager

    Web Application Manager systeM environMent requireMents The minimum requirements for hardware and OS required to run Web Application are given below. Minimum Recommended Intel i3 Intel i7 or higher 4GB or more 8GB or more Hard Drive 500GB or more 1000GB or more Display RAM 2GB or more...
  • Page 38 Web Application Manager If the plugins is not downloaded successfully, please check if your browser's safety level or firewall setting is set too high. Please open IE browser ; [Menu Bar] Tools ; Internet options ; Security ; Internet ; Custom level ; Enable the options. download and installation of plugin for ie Enter IP address of NVR in address bar of IE, for example, http://192.168.2.173:80...
  • Page 39 Shut down IE browser and restart it, and then enter IP address of NVR in address bar to access login page. download and installation of plugin for Mac safari Enter IP address of NVR in address bar of Mac SAFARI, for example, http://192.168.2.173:80, and click on "download"...

  • Page 40: Web Application Manager Login

    Web Application Manager Shut down Mac SAFARI browser and restart it, and then enter IP address of NVR in address bar to access login page. The above instruction is to install the initial plug in. You can use the same plugin for IE and Firefox.
  • Page 41 Menu Bar Menu Bar: Live, Playback, Remote Setting, Local Setting and Logout. live display video Control Log in the Web Application Manager, system will be defaulted to enter into <Live> interface. You can click [Play] button to Open/ close live images, on-spot record, capture, and many live display modes. Buttons on a single live interface : Open or close the images on Live window.
  • Page 42 Web Application Manager playback Click [ ] to enter into Playback interface to remotely view the records in NVR HDD. It supports 1 to 4 channel record playback. record search Record playback procedure Firstly, select the date you want to check and tick 1 to 4 channels. Any record files in current channel at current date will be displayed in the status bar of the interface.
  • Page 43 playback Control Playback control bar Detailed brief description is shown as below: Description Description Slow playing x1/2,1/4, 1/8, Fast Forward Play x1/2/4/8 Pause Open all the playback channels Stop Stop playing all the playback Frame by frame Digital ZOOM Record Clip Original proportions Image Snapshot Stretch...
  • Page 44 Web Application Manager remote setting Click Remote Setting to enter into the interface shown, including Display, Record, Alarm, Network, Device and System. display When you click the <Display> option, sub-options of Display Settings and Schedule are displayed. live Displays the currently playing live screen. Motion You can set the Motion area.
  • Page 45 record Click <Record> option to unfold its sub-options: Record parameter and Schedule. record parameters The parameters should be consistent with NVR local setting. record schedule The parameters should be consistent with NVR local setting. Green stands for Normal record; Yellow stands for Motion detection. Capture Capture • Channel: Select channel.
  • Page 46 Web Application Manager alarm Alarm setting includes Motion Detection Parameters. Motion Configure Sensitivity, Alarm out, Alarm Record and Alarm Capture, etc. Detailed setting should be consistent with NVR local setting. exception User may configure Event Type, Buzzer, Send Email, Show Message and other parameters.
  • Page 47 email Email: Set NVR alarm Email configuration parameters, including Email address, Encryption, Email Enable, and Interval etc. Detailed parameters should be consistent with NVR local setting. https • Enable : Enable/Disable • Certificate Type : Default/Custom device Click <Device> to unfold its sub-options: HDD User may check HDD status of NVR and overwritten time.
  • Page 48 Web Application Manager system Click <System> option to unfold its sub-options: General, Users and Info. general User may check NVR language and video system and date format, menu display time, DST and NTP parameters. Detailed setting should be consistent with NVR local setting. users User may configure user name and password and detailed setting should be consistent with NVR local setting.
  • Page 49 Maintain Allow you remotely set auto maintain time for NVR. Detailed setting should be consistent with NVR local setting. info User may search device name, device number, device type, MAC address, software version, IE version and hardware version of NVR. local setting User may set Record Path (save Live record and Playback clip file), Download Path for remote file, Snapshot Path for captured pictures, Interval for switching...

  • Page 50: Mobile App

    Mobile App Mobile App android phones/taBlets 1. Open Play Store to search WiseView and click "INSTALL" to install. 2. After installation, open WiseView and select "Device". Then click [ ] to add new device. Scan QR code under Information page of system on local NVR. Then input client port, user name and password, and then click Save to log in to the device.

  • Page 51: Iphone/Ipad

    iphone/ipad 1. Open App Store to search WiseView, and click icon [ ] to install. 2. Open WiseView, and go to Device. Click [ ] to add new device. Scan QR code under Information page of system on local NVR. Then input client port, user name and password, and then click Save to log in to the device. English _51...

  • Page 52: Troubleshooting

    Appendix Appendix trouBleshooting Symptom Countermeasures • Check if the power supply system is properly connected and data cord and power cables are securely What can I do if the system does not detect connected, and if something wrong with the HDD interface. Or you may check if your HDD is supported the HDD? by referring to the specifications or descriptions.
  • Page 53 usage Maintenance 1. To shut down NVR, please firstly shut down the system and then turn off the power. Do not turn off the power directly or HDD data will be lost or damaged. 2. Please keep NVR away from heat sources or places. 3.

  • Page 54: Specifications

    Transmission speed Max 60fps@1080p, Max60fps@640x360 Bandwidth Up to 32Mbps Network (IPv4) Live stream Max. 60fps@1080p Protocol support TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DHCP(Server, Client), PPPoE, SMTP, DNS, DDNS, uPnP Monitoring Webviewer, Wiseview, Wisenet client for PC 54_ Appendix...
  • Page 55 Item Details Supported OS - PC : Windows Vista, Windows 7, Windows ® ® ® Mac OS X 10.12.2 or above ® - Mobile : Android Ver4.4 or above Web / App viewer 8.0 or above ® Supported Browser Remote - Microsoft Internet Explorer (Ver.

  • Page 56: Dimension

    Appendix diMension Unit: mm (inch) 56_ Appendix...

  • Page 57: Open Source Announcement

    open sourCe announCeMent oPen Source AnnounceMent The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the Corresponding Source code from us for a period of three years after our last shipment of this product If you want to obtain the Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.
  • Page 58 c) Accompany it with the information you received as to the offer to of this License, you may choose any version ever published by the Free distribute corresponding source code. (This alternative is allowed Software Foundation. only for noncommercial distribution and only if you received the 10.
  • Page 59 consider it more useful to permit linking proprietary applications with the computer or modifying a private copy. Propagation includes copying, library. If this is what you want to do, use the GNU Lesser General distribution (with or without modification), making available to the public, Public License instead of this License.
  • Page 60 4. conveying Verbatim copies. A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be You may convey verbatim copies of the Program’s source code as you included in conveying the object code work. receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice;...
  • Page 61 In the following three paragraphs, a “patent license” is any express permits relicensing or conveying under this License, you may add to a agreement or commitment, however denominated, not to enforce a covered work material governed by the terms of that license document, patent (such as an express permission to practice a patent or covenant provided that the further restriction does not survive such relicensing or not to sue for patent infringement).
  • Page 62 15. disclaimer of Warranty. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT restrict the users of a free program by obtaining a restrictive license from PERMITTED BY APPLICABLE LAW.
  • Page 63 You may charge a fee for the physical act of transferring a copy, and layouts and accessors, and small macros and small inline functions (ten you may at your option offer warranty protection in exchange for a fee. lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work.
  • Page 64 no WArrAntY acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it. 15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE 10. Each time you redistribute the Library (or any work based on the IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED Library), the recipient automatically receives a license from the original BY APPLICABLE LAW.
