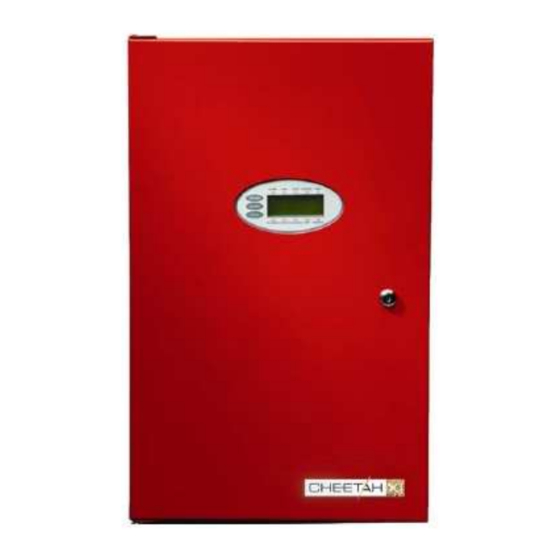

Fike Cheetah Xi Instruction Manual

Addressable fire suppression control system
Hide thumbs Also See for Cheetah Xi:
Table of Contents

Advertisement

Quick Links

Installation Manual
Installation Manual
10-068
10-
068, Ch
, Cheetah
 A  Ad d d d r r es
ess s abl
abl e Fi
e Fir r e Sup
P/N 06-356
P/N 06-356
(Rev. 9 /
(Rev. 9 / O
Oct
ct
ob
ob
er, 2016)
er, 2016)
® ®
eetah
 Xi
 Xi
e Sup p p r r es
ess s i i o o n n Co
Con n t t r r o o l l Sy
Sys s t t em
em
Fire Protection
Fire Protection
Explosion Protection
Explosion Protection
Overpressure Protection
Overpressure Protection
Pressure Activation
Pressure Activation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cheetah Xi and is the answer not in the manual?

Questions and answers

Related Manuals for Fike Cheetah Xi

Summary of Contents for Fike Cheetah Xi

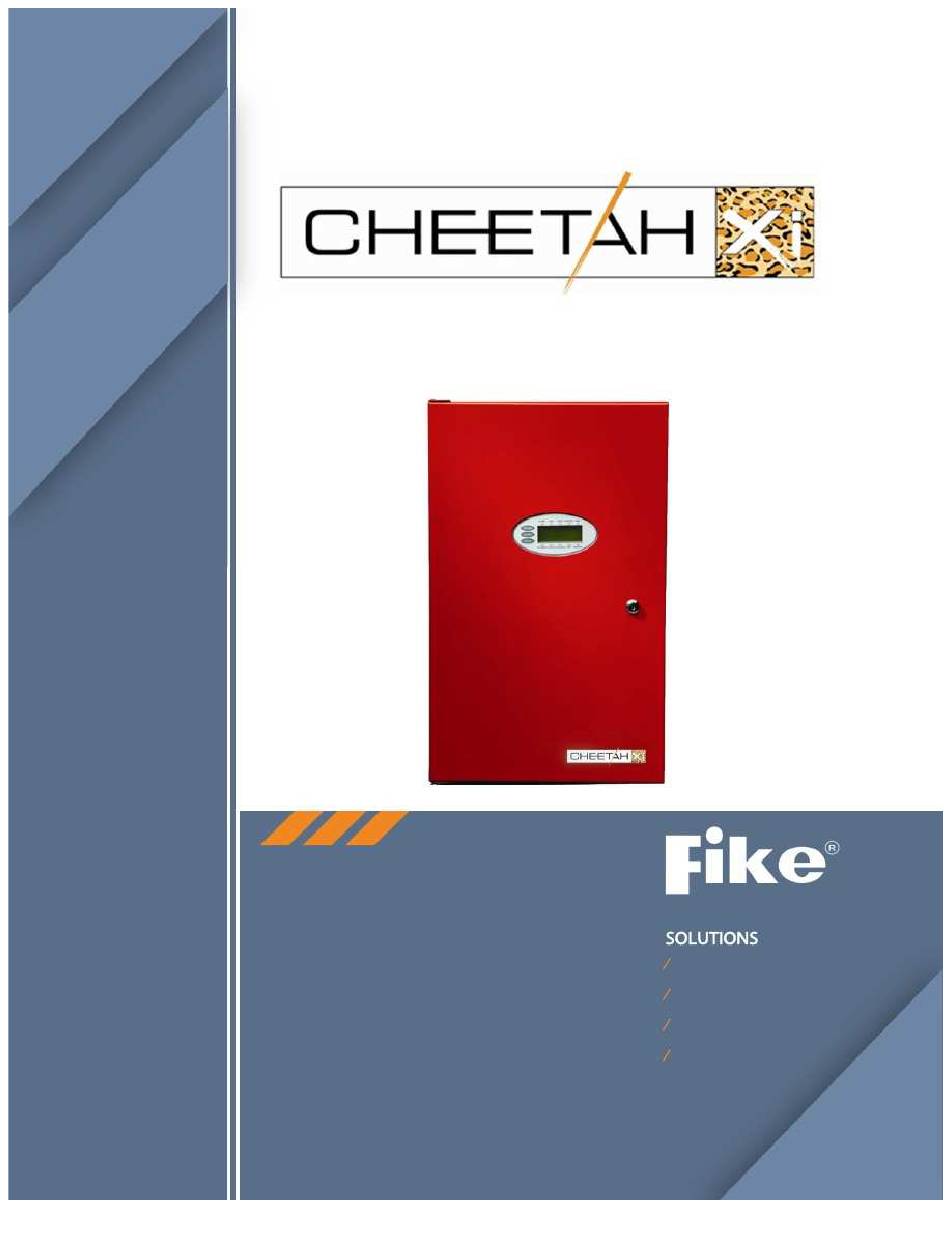

  • Page 1 Installation Manual Installation Manual ® ® 10-068 068, Ch , Cheetah eetah  Xi  Xi  A  Ad d d d r r es ess s abl abl e Fi e Fir r e Sup e Sup p p r r es ess s i i o o n n Co Con n t t r r o o l l Sy Sys s t t em...
  • Page 3 Fike property or other damages or losses resulting from the use or misuse of Fike products beyond the cost of repair or replacement of any defective components.
  • Page 4 TABLE OF CONTENTS TABLE OF CONTENTS REVISION HISTORY REVISION HISTORY Document Title: Cheetah Xi Fire Suppression Control System Installation Manual Document Title : Cheetah Xi Fire Suppression Control System Installation Manual Document Reorder Number  Document Reorder Number  : 06-356 : 06-356...
  • Page 5 System Descript Description ion ............................................ 2-1 2.1.1 2.1.1 Cheetah Cheetah Xi Xi Features Features ..........................................2-2 2.1.2 2.1.2 Listi Listings...

  • Page 6: Table Of Contents

    Install Optional Modules ....................4-7 4.12 Install the Controller ......................4-8 4.13 Connect the AC Power to the Controller ............... 4-10 4.14 Install Batteries ......................4-11 4.14.1 Battery Cutoff ......................... 4-11 UL S2203 Cheetah Xi Installation Manual P/N: 06-356 Rev 9, 10/2016...

  • Page 7: Section Description Page

    Sys tem Oper ati on Pos ti ng ................... B-1  Ap pen di x C Compat ib le Com po nen ts ..................... C-1  Ap pen di x D Batter y Cu to ff ........................ D-1 Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...
  • Page 8 Cheetah Xi Controller Terminal Locations ............... 3-2 Cheetah Xi Controller Terminal Specifications ..............3-3 Cheetah Xi Controller Terminal Specifications – Cont............ 3-4 Cheetah Xi Controller Terminal Specifications – Cont............ 3-5 Cheetah Xi Controller Terminal Specifications – Cont............ 3-6 Cheetah Xi Enclosure ......................
  • Page 9 Mounting the Controller ....................4-9 4-10 AC Power Connections ....................4-10 4-11 Battery Connections ....................... 4-11 4-12 Cheetah Xi Board Terminal Connections ..............4-13 4-13 P2 Relay Connections ....................4-14 4-14 RS232 Wiring ......................... 4-14 4-15 RS485 Peripheral Bus Wiring ..................4-14 4-16 RS485 DACT Wiring ......................
  • Page 10 Fike has a worldwide distribution network. Each distributor sells, installs, and services Fike equipment. Look on the inside of the door, left side, there should be a sticker with an indication of the distributor who sold the system. If you can not locate the distributor, please call Fike Customer Service for locating your nearest distributor, or go to our web-site at www.fike.com.
  • Page 11 Activation typically initiated by a detector or contact device. The alarm state is a latching event in the Cheetah Xi. The operator will be required to RESET the Cheetah Xi in order for the panel to exit/clear the alarm state.
  • Page 12 1.0 INTRODUCTION RELATED DOCUMENTATION To obtain a complete understanding of the specific features of the Cheetah Xi or to become familiar with related functions in general, refer to the documentation listed below. Please reference the most current version or the version noted on the label located on the product.
  • Page 13 1.0 INTRODUCTION Reserved for future use. Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...
  • Page 14 2.0 SYSTEM OVERVIEW SYSTEM DESCRIPTION The Fike Cheetah Xi (P/N 10-068) is a state of the art, true addressable peer-to-peer fire suppression control system. It provides the latest technology in detection communication with extensive programmability in one cost effective system. Its intelligence has every device communicating as a peer on the signaling line circuit.
  • Page 15  Supports up to 31 peripheral devices (i.e. Remote Display, LED Graphics, etc.)  Supports ability to network up to 128 nodes (each could be Cheetah Xi or CyberCat)  POWER 6 amps useable alarm power, 2A standby, expandable to 12 amps alarm power, 4 A standby ...
  • Page 16 Factory Mutu al (FM) Standards : FMRC 1011 and 1012 – Deluge and Pre-action Sprinkler Systems  Applicable Local and State Building Codes Requirements of the Local Authority Having Jurisdiction UL S2203 Cheetah Xi Install ation Manual P/N: 06-356 Rev 9, 10/2016...
  • Page 17 Relay Card Notes: Only one transformer (120VAC or 240VAC) can be used. DACT must be purchased from Fike for proper operation with the CyberCat panel. Included in 10-080 Class A Peripheral Bus Assembly. Cheetah Xi Instal latio n Manual UL S2203...
  • Page 18 FAAST XM Aspirating Smoke Detector 68-302 FAAST XT Aspirating Smoke Detector 68-509 FAAST XS Aspirating Smoke Detector Notes: Module is required to monitor sprinkler system components (e.g. Waterflow, Tamper, Low Air, etc.). UL S2203 Cheetah Xi Install ation Manual P/N: 06-356 Rev 9, 10/2016...
  • Page 19 2.0 SYSTEM OVERVIEW Reserved for future use. Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...
  • Page 20 The controller is also used for system timing, user interface, power delivery and system history archive. The system display is an integral part of the Cheetah Xi controller. It is mounted directly to the controller and provides the function and navigation buttons that are used to operate and program the system.
  • Page 21 3.0 SYSTEM COMPONENTS Exhibit 3-4 shows the location of the various connectors on the Cheetah Xi control board. The function and specifications for each connection is listed in order of terminal block designation (P) on the following pages. Exhibi t 3-4: Cheetah Xi Contro ller Terminal Locatio ns...
  • Page 22 3.0 SYSTEM COMPONENTS Exhibi t 3-5: Cheetah Xi Contro ller Terminal Specificatio ns Terminal Terminal Function and Electrical Block Labels Ratings/Requirements Wiring Requirements AC XFMR 16 AWG THHN wiring minimum 120 VAC Transformer P/N 02-10881  Secondary Standby = 3A @ 25.35 VAC Terminal block accepts 12 AWG –...
  • Page 23 3.0 SYSTEM COMPONENTS Exhibi t 3-6: Cheetah Xi Contro ller Termin al Specifi cation s – Cont. Terminal Terminal Function and Electrical Block Labels Ratings/Requirements Wiring Requirements VESDA 68-023 and 68-517 includes a 20 ft. (6.1m) RS232 port, power limited and supervised ...
  • Page 24 3.0 SYSTEM COMPONENTS Exhibi t 3-7: Cheetah Xi Contro ller Terminal Specific ations – Cont . Terminal Terminal Function and Electrical Block Labels Ratings/Requirements Wiring Requirements Addressable 12,000 ft. (3657m) maximum wire length Power limited and supervised  Loop 1...
  • Page 25 3.0 SYSTEM COMPONENTS Exhibi t 3-8: Cheetah Xi Contro ller Termin al Specifi cation s – Cont. Terminal Terminal Function and Electrical Block Labels Ratings/Requirements Wiring Requirements  All CRM4 connections shall be power Provides connection point for an optional ...
  • Page 26 Numerous conduit knockouts are provided in the back box for easy access to the cabinet during system  installation. Press-studs supplied in enclosure back-box for easy installation of system components (i.e., Cheetah Xi  control board, transformers, DACT, etc.). The removable exterior door mounts on the left side of the cabinet only and is equipped with a key-lock ...
  • Page 27 3.0 SYSTEM COMPONENTS OPTIONAL CIRCUIT MODULES Several optional circuit modules can be installed onto the Cheetah Xi controller to expand its operational capabilities. A brief description of each module and its functionality is provided in this section for reference purposes. For a complete description of each module’s functionality, installation and wiring, refer to the devices installation sheet.
  • Page 28 SUPPLEMENTAL LOOP MODULE (SLM), P/N 10-2473 The Supplemental Loop Module (See Exhibit 3-14) can be added to a base Cheetah Xi 1016 system to double the addressable loop capacity from 508 devices to 1016. Loop specifications and wiring for P31 and P32 are same as P8 and P9 from the main controller. It interfaces to P15 on the Cheetah Xi controller using four standoffs supplied with the SLM.
  • Page 29 It interfaces to P20 using four standoffs supplied with the Fiber Optic Network Module. Exhibi t 3-18: Fiber Optic Refer to Fike document 06-387, for more information. Network Module 3-10 Cheetah Xi Instal latio n Manual...
  • Page 30 3.0 SYSTEM COMPONENTS PERIHERAL BUS DEVICES Several optional components can be installed on the Cheetah Xi controller’s RS485 peripheral bus (31 devices maximum) to provide remote annunciation and control of system events, and to expand the systems operational capabilities. A brief description of each component and its functionality is provided in this section for reference purposes.
  • Page 31 The module can be mounted inside the Cheetah Xi enclosure or it can be mounted remotely by ordering the custom mounting enclosure.
  • Page 32 Exhibit 3-26: Relay Control Ass embly The CRM4 and HPM4 relay modules must be ordered separately. Refer to Fike document 06-580 and 06-443, for more information. Note:  The HPM4 relay card (See Exhibit 27) is compatible with the Relay Control Assembly only.
  • Page 33 24 VDC power output to the connected peripheral devices in a Class A format. The card can be mounted within the Cheetah Xi enclosure or ordered as part of an assembly that allows the card to be external to the Cheetah Xi enclosure.
  • Page 34 3.0 SYSTEM COMPONENTS INTELLIGENT DETECTORS The Cheetah Xi system uses intelligent detectors that not only include all necessary processing for decision making but also include the control logic for the system, greatly reducing the importance of the central controller. The operating parameters are downloaded to the devices during system configuration into nonvolatile memory.
  • Page 35 The following modes of operation for the detector are configurable to suit your specific project requirements: Exhibi t 3-33: Heat Detector  Alarm Verification Walktest PreAlarm 1 Remote Annunciator PreAlarm 2 Fixed Temp/Rate-of-Rise 3-16 Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...
  • Page 36 Important Note: Duct Detector and Housing must ordered separately and both are required. Refer to Section 3.8 for accessory devices that can be used in conjunction with the duct detector housing to provide remote testing and visual notification options. UL S2203 Cheetah Xi Install ation Manual 3-17 P/N: 06-356 Rev 9, 10/2016...
  • Page 37 This allows the detector to intelligently communicate with the panel just like any other detection device on the loop. Detector conditions are displayed at the FAAST unit and at the Cheetah Xi control panel to provide clear indication of the system status, particulate levels, alarm levels, air flow and faults.
  • Page 38 BASE WITH ISOLA TOR, P/N 63-1060 (System Senso r EBFI) The Six-Inch Base (See Exhibit 3-38) can be used with any of the Cheetah Xi detectors. It mounts directly to 3 1/2 inch and 4 inch octagon boxes (with or without plaster rings), and single gang boxes.

  • Page 39: Remote Testing And Notification Accessories

    3.0 SYSTEM COMPONENTS REMOTE TESTING AND NOTIFICATION ACCESSORIES The following accessories add functionality to the Cheetah Xi detection system by allowing quick, convenient inspections at eye level and effective audible and visual notification options. 3.8.1 REMOTE ANNUNCIATOR, P/N 02-3868 (System Senso r RA100Z) The remote annunciator (See Exhibit 3-41) can be used with any of the Cheetah Xi detector bases, including the duct detector housing.

  • Page 40: Addressable Modules

    3.0 SYSTEM COMPONENTS ADDRESSABL E MODULES The Cheetah Xi system uses intelligent input and output modules to provide an interface between the control panel and conventional notification and initiating devices. The operating parameters for each module are downloaded to the device during system configuration into nonvolatile memory.

  • Page 41: Addressable Agent Release Pull Station

    The module monitors the external power input for loss of power and signals the Cheetah Xi panel accordingly. The module includes a tri- color LED for instant indication of device status. The module is capable of providing an optional pulsing output to signal different states, when interfaced with the Cheetah Xi addressable loop.

  • Page 42: Relay Module

    The isolator version provides complete short circuit isolation for NFPA Class X wiring. A module cover plate (not shown) is included with module. Refer to Fike document 06-106, “Agent Release Module (ARM) Manual” and 06-552, “Impulse Release Module (IRM) Manual” for proper connections to ARM(s) or IRM(s).

  • Page 43: Vesda High Level Interface

      Modbus HLI, P/N 68-517 (compatible with panel  firmware versions 7.20 and newer) Refer to Fike documents 06-158 and 06-823 for more information. 3.11 PROGRAMMING AND CONFIGURATION EQUIPMENT The items discussed in this section are not UL listed; however, one or more of these items must be used to facilitate proper configuration of the Cheetah Xi system.

  • Page 44: Hand Held Programmer

    (P/N 02-11139) and also includes the 10-1874A interface Communication Cable cable. It should be used when connecting the C-Linx Software to the Cheetah Xi using a computer with a USB connector instead of a DB9 serial (com) port. 3.11.7 INTERFACE CABLE, P/N 10-2629 The 10-2629 interface cable (See Exhibit 3-59) consists of a USB 2.0...

  • Page 45: Batteries And Battery Enclosures

    P/N 02-4206 75 AH Battery 3.12.3 BA TTERY ENCLOSURES Batteries larger than 18 AH will not fit inside the Cheetah Xi panel enclosure(s); therefore, one of the following battery enclosures must be installed to house the batteries. Interconnecting cables from the battery cabinet to the Cheetah Xi enclosure shall be in installed in conduit.

  • Page 46: Installa Tion

    4.0 INSTALLA TION SYSTEM INSTALLATION SEQUENCE This section provides general instructions that should be adhered to when installing the Cheetah Xi system. Refer to the installation instruction sheets supplied with each component for specific installation instructions. The following checklist is provided to assist the installer during system installation:...

  • Page 47: Select The Enclosure Mounting Option

    The enclosure is designed to fit between wall framing members for flush mounting. Note: The Cheetah Xi enclosure is NOT fire rated; do not install on or in fire rated walls unless steps are taken to maintain the fire rating of the wall.

  • Page 48: Wire Selection

    4.0 INSTALLA TION Exhibi t 4-1: Cheetah Xi Enclos ure Dimensi ons (inches/cm) Note: Refer to Fike document 06-426, “Cheetah Xi Enclosure Installation Instructions” for further details. WIRE SELECTION When planning the type of wire to be used, refer to National Electrical Code (NFPA 70), wire manufacturers product specifications and National Fire Alarm and Signaling Code (NFPA 72).

  • Page 49: Circuit Class Designations

    CIRCUIT CLASS DESIGNATIONS The circuits on the Cheetah Xi controller and its field devices can be configured for Class B (two wire) or Class A or X (four wire) operation. Class B wiring does not include a redundant path and the operational capability stops at a single open.

  • Page 50: Install The Ac Power Transformer

    1. Route the AC hot and neutral wires to the primary transformer, as shown in Exhibit 4-5. 2. Secure Hot and Neutral wires to terminals H1 and H2. UL S2203 Cheetah Xi Install ation Manual P/N: 06-356 Rev 9, 10/2016...
  • Page 51 7. DO NOT ENERGIZE THE AC POWER SOURCE AT THIS TIME! Exhib it 4-5: Connect AC Power to Transfor mer Exhibi t 4-6: Connect AC Power to Secondary Transform er Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016...

  • Page 52: Install Optional Modules

    Exhibit 4-7: Mounting Locations for Optional Modules  All of the optional modules, except the DACT, must be installed prior to installing the Cheetah Xi controller into the enclosure. Refer to the installation instructions supplied with each module for specific installation instructions.

  • Page 53: Install The Controller

    Before installing the Cheetah Xi controller, thoroughly clean the enclosure to remove any dirt, dust, and Before installing the Cheetah Xi controller, thoroughly clean the enclosure to remove any dirt, dust, and debris.

  • Page 54: Mounting The Controller

    Exhibit 4- Exhibit 4-9: 9: Mounting the C Mounting the Controller ontroller UL S220 S2203 3 Cheetah Cheetah Xi Xi Install Install ation ation Manual Manual P/N: P/N: 06-356 06-356 Rev 9, 9, 10/2016 10/2016...
  • Page 55 WARNING  AC power connections  AC power connections to the to the Cheetah Xi Cheetah Xi Controller must be Controller must be made with the main power breaker locked out. made with the main power breaker locked out. The following general steps shall...

  • Page 56: Battery Connections

    BATTERY TTERY CUTOFF CUTOFF The Cheetah Xi panel has battery cutoff feature that allows the system batteries to be automatically The Cheetah Xi panel has battery cutoff feature that allows the system batteries to be automatically disconnected from the disconnected from the load if the system load if the system’s operating voltage (AC...

  • Page 57: Apply Power To The Panel

    Each of these conditions indicates improper connections or malfunction of components. After power is removed, investigate for source of malfunction by checking module connections in the area of the malfunction. 4-12 Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...

  • Page 58: Connect Field Wiring

    4.16 CONNECT FIELD WIRING The Cheetah Xi controller is equipped with removable terminal blocks that are capable of accepting 12 – 24  AWG wire. If stranded wire is used, it is recommended that wire ends be tinned. Exhibit 4-12 shows the terminal block designations and their general function for reference purposes.

  • Page 59: General Relay Wiring

    20 ft. (6.1m) from the control panel. 4.16.3 RS485 PERIPHERAL BUS WIRING (P6) The panel provides a single isolated RS485 data interface between the Cheetah Xi panel and compatible peripheral devices as identified in Section 3.5. The peripheral bus must be connected in a daisy chain configuration as shown in Exhibit 4-15.

  • Page 60: Auxiliary Power Wiring

    SHLD. Connect it through and insulate at each junction box and leave unconnected and insulated at the last device. Note: The standard Cheetah Xi Control Panel has a total power capability of 6 amps. UL S2203...

  • Page 61: Class B

    This wiring method will support t-tapping (Detector #3 is t-tapped off Detector #2). Exhibi t 4-18: Class B SLC Wiring 4-16 Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...

  • Page 62: Class A

    Detector installation instruction for these bases. The addressable loop is limited to a maximum of 300 mA total for addressable devices plus remote LED devices. Exhibi t 4-20: Remote LED Wiring UL S2203 Cheetah Xi Install ation Manual 4-17 P/N: 06-356 Rev 9, 10/2016...

  • Page 63: Notification Appliance Circuit Wiring

    P10 and P11 are two separate notification appliance circuits (NAC’s) that provide the ability to activate compatible, UL-listed notification appliances listed in Fike document 06-186, “Device Compatibility manual”. The NAC circuits are supervised, power-limited, and can be wired Class B (using 1.2K EOL) or Class A (no EOL), as shown in Exhibits 4-21 and 4-22.

  • Page 64: Initial Power-Up With Field Wiring Connected

    4.18 CONFIGURE SYSTEM There are many different methods that can be chosen to configure the Cheetah Xi fire alarm system. The two most common choices would be to AUTO PROGRAM or ENGINEERED CONFIGURE. Any combination of these two methods may also successfully accomplish matching the field devices to the installation configuration requirements.
  • Page 65 4.0 INSTALLATION Reserved for future use. 4-20 Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...

  • Page 66: Battery Calculation Form

    (hr) (Amps) (Amp-hr) (Amps) Required Standby Required Alarm Total Required Optional Factor of  Adjusted Battery Capacity (Amp-hr) Capacity (Amp-hr) Capacity (Amp-hr) Safety Capacity (Amp-hr) [Note 5] [Note 6] UL S2203 Cheetah Xi Install ation Manual P/N: 06-356 Rev 9, 10/2016...
  • Page 67 1.2 represents a battery derating factor of 20 percent. Cheetah Xi control panel can support charging up to 75 AH standby batteries. The Cheetah Xi panel with the SPS installed can support charging up to an additional 75 AH set of batteries for a system total of 150 AH.
  • Page 68 Insert totals in Section 1 – Line Item 8. Section 3 Notes: Include current draw of devices in this section only if 24vdc power for device operation is supplied by the Cheetah Xi system controller or the supplemental power supply. Typical for all devices.
  • Page 69 Include current draw of all notification appliances connected to the Cheetah Xi’s two on-board notification appliance circuits (NAC 1 & 2), and to SCMs that are receiving 24vdc power from the Cheetah Xi system controller or the supplemental power supply.
  • Page 70  A “System Operation Posting” shown on the following pages provides a brief summary of the basic operation of the Cheetah Xi system. The completed “System Operation Posting” shall either be mounted on the cabinet front or framed and located adjacent to the control unit. It can be downloaded from Fike’s Customer Portal web page, document P/N 06-653.
  • Page 71  APPENDIX B Reserved for future use. Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...
  • Page 72 OPERATING INSTRUCTIONS Cheetah Xi Control System (P/N 10-068) Commercial Protected Premises Control Unit Local, Auxiliary, Remote Station (PPU), Central Station (PPU), and Releasing Service These instructions must be framed and displayed next to the panel in accordance with NFPA 72, National Fire Alarm Code for Local Fire Alarm System.
  • Page 73 Supervisory – Yellow LED that flashes when the panel enters Refer to Fike document 06-356-2, “Cheetah Xi Operation and the Supervisory state or if a zone or device is disabled. Maintenance Manual” for maintenance instructions.

  • Page 74: Compatible Components

     APPENDIX C COMPATIBLE COMPONENTS The following table identifies the components that are compatible with the Cheetah Xi system. Only those items listed shall be used on the system. Exhibit C-1: Compatible Components Part Number Descriptio n 10-2542 Cheetah Xi Control Board and Display (included with 10-068 system)
  • Page 75 Sampling Tube, Duct Detector, 2 ft. to 4 ft. (0.6m – 1.2m) 63-1162 Sampling Tube, Duct Detector, 4 ft. to 8 ft. (1.2m – 2.4m) 63-1163 Sampling Tube, Duct Detector, 8 ft. to 12 ft. (2.4m – 3.7m) Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...
  • Page 76 Provides ability to use USB serial port on laptop (USB-DB9-RJ11) 02-11139 USB to DB9 Converter (02-11139) without 10-1874A interface cable 10-2629 USB A/B Cable for configuration of Cheetah Xi 50 System 10-2477 DACT Programmer (Bosch FMR-DACT-KEYPAD) BATTERIES AND BATTERY ENCLOSURES...
  • Page 77 Signal Red – RAL 3001 per RAL 840-HR (Matt Finish) Light Gray – RAL 7035 per RAL 840-HR C.1.2 NOTIFICATION APPLIANCES Refer to Fike document 06-186 for Compatible Notification Appliances. C.1.3 FACTORY MUTUAL APPROVED RELEASING SOLENOIDS Refer to Fike document 06-186 for compatible Releasing Devices.

  • Page 78: Battery Cutoff

     APPENDIX D BATTERY CUTOFF Exhibit D-1 below shows the components used to facilitate the battery cutoff arrangement for Fike’s Cheetah Xi control panel. Exhibit D-1: Battery Cutoff Wiring Diagram UL S2203 Cheetah Xi Install ation Manual P/N: 06-356 Rev 9, 10/2016...
  • Page 79  APPENDIX D Reserved for future use. Cheetah Xi Instal latio n Manual UL S2203 Rev 9, 10/2016 P/N: 06-356...
