Cheetah Xi™ Enclosure

Installation Instructions

DESCRIPTION
The Cheetah Xi™ enclosure (See Exhibit 1) is made
of 18 gauge steel with a baked on enamel finish (red
or black). It is designed so that it can be surface or
flush mounted. Numerous conduit knockouts are
provided on all four sides of the enclosure to
facilitate easy wiring access into the enclosure. The
knockouts allow connection of either ½" or ¾"
conduit. The removable exterior door is hinged on
the left side of the back-box and is equipped with a
key-lock to prevent unauthorized access to system
components.
Threaded press-studs are supplied in enclosure
back-box for easy installation of the following system
components (sold separately):
A. Cheetah Xi™ Controller (qty. 1)
B. AC Power Transformer (qty. 1)
C. Bosch FPT-DACT-LC, P/N 10-2528
D. Class A Peripheral Bus Card, P/N 10-2792*
E. Multi-Interface Module (MIM), P/N 10-2583*
F. Ethernet Module, P/N 10-2627*
G. Two 18 AH batteries (maximum)
* MIM, Ethernet module and Class A Peripheral Bus
card share a common mounting location. Only one
component can be installed at a time.
See Exhibit 2 for component layout within the
enclosure.
ENCLOSURE ORDERING
Part Numbers: 10-2541-c (c: R = Red, B = Black)
Weight: 16 lbs. (7.3 kg) empty
(door and back box)
® th
Fike , 704 SW 10 Street, P.O. Box 610, Blue Springs, Missouri 64013-0610 U.S.A. ● Tel: (816) 229-3405 ● Fax: (816) 229-4615
While every precaution has been taken during the preparation of this document to ensure the accuracy of its content, Fike assumes no responsibility for errors or omissions.
Fike reserves the right to make changes to the product or this document without notice.
www.fike.com

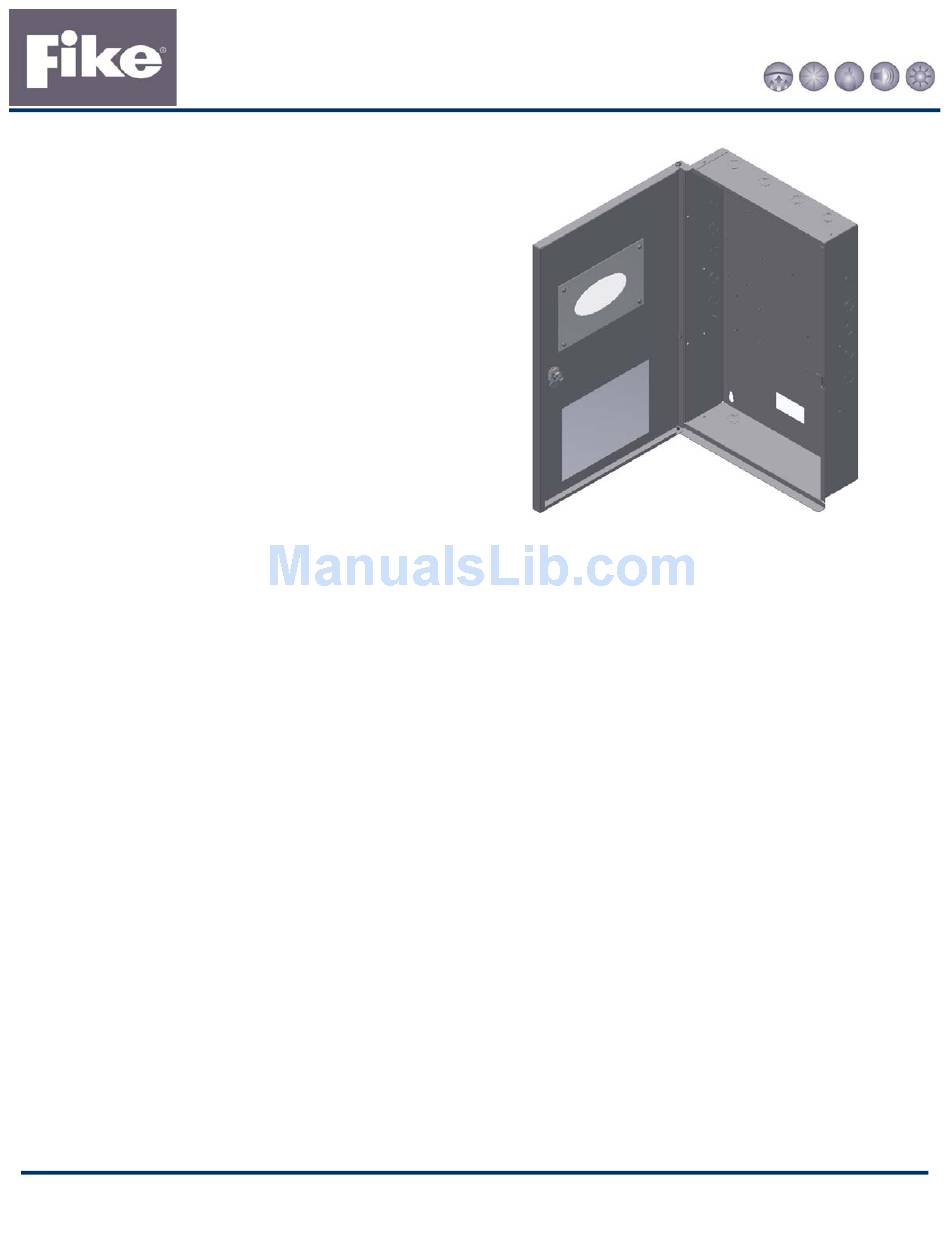

Exhibit 1: Enclosure
SUPPLIED MOUNTING HARDWARE
The following mounting hardware is supplied with
the enclosure for future installation of the electronic
components. Store hardware inside the enclosure
after enclosure installation.
02-12025 Cabinet Keys (qty. 2)
02-12033 Standoff Kit
02-2715 M/F Standoff, .625" (qty. 5)
02-12014 Hardware Kit
4153-142 Lock Washer, #6 (qty. 2)
02-1361 6-32 Hex Nut (qty. 2)
02-4992 Ground Wire (qty. 1)
02-4035 Nut and star washer kit
(contains 20 nuts and washers)
An ISO 9001-2000 Company
P/N 06-426 Rev. 1 page 1 of 4
