Patriot
Braking System
Owner's Manual
Patent Pending
BRK2010
THANK YOU
for purchasing a Patriot® braking system from
Blue Ox. We've organized this manual to make
your installation simple and as trouble-free
as possible. Please read before operating the
brake. Keep your sales receipt and this manual
in a safe place so that both are available for
future use if needed.
Read and understand fully these instructions
prior to the use of this product.
Page 1 of 16
405-0084 Rev. B
®
7/8/10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Blue Ox Patriot BRK2010
Summary of Contents for Blue Ox Patriot BRK2010
- Page 1 Patent Pending BRK2010 THANK YOU for purchasing a Patriot® braking system from Blue Ox. We’ve organized this manual to make your installation simple and as trouble-free as possible. Please read before operating the brake. Keep your sales receipt and this manual in a safe place so that both are available for future use if needed.
- Page 2 Automatic’s option without charge for parts or labor. At Automatic’s option, new, refurbished or improved parts may be used in the repair or replacement of warranted items or replacement products. Blue Ox® Division Automatic Equipment Mfg. Co. P.O. Box 430 Pender, Nebraska 68047 www.blueox.com - (402) 385-3051...
- Page 3 Accessories cause serious injury, property damage or death. Improper installation and/or operation will void the warranty. At Blue Ox® we pride ourselves in off ering exceptional customer service to our valued customers. DEALERS AND DISTRIBUTORS: If you have any questions, comments,...
- Page 4 Congratulations! You are now the proud owner of a Patriot® braking system. Welcome to the Blue Ox® Family. Th e braking system that you have purchased combines quality components with the latest in technology and style. We are confi dent that these design features will provide you with the conveniences you expect during your travels.
- Page 5 Remove the Patriot® and accessories from the shipping carton, review parts list and diagram below. Make sure that you have the appropriate items shown below. If NOT, please contact a Blue Ox® Dealer or Distributor, or call a member of the Customer Care Team at (402) 385-3051 to order replacement parts.

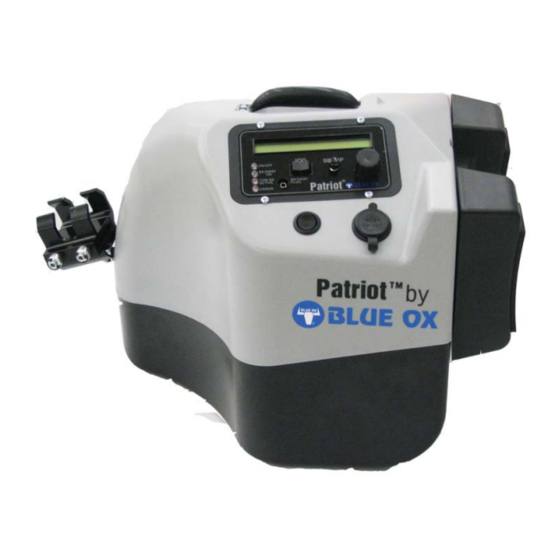

- Page 6 Th e Patriot® Illustrated Carrying Handle Information Display One-button Actuator Arm Set-up Adjustable Brake “Claw” Push Pad On/Off Switch 12 Volt, 2 Amp (Max) Receptacle Actuator Arm Manual When activated, extends to Override Lever press the brake bracket against the towed vehicle’s brake pedal. RF Remote Unit Page 7 of 16...
- Page 7 causing the brake lights to be activated. If the seat Installation Setup can’t be moved forward far enough, an arm extension is available. (see page 13) Th is section will explain how to install the Note: If using a breakaway, it must be connected before Patriot®.
- Page 8 BRK 2010 Patriot® Operating Instructions 1. Plug the 2-Way RF In-Coach Controller into an available 12 volt outlet. 2. The large number on the display represents the sensitivity setting of the Patriot® Brake; it will automatically be set to 5 when activated. 3.
- Page 9 This will address the issue of users repeatedly getting REPOSITION BRAKE error during setup. If a user gets the REPOSITION BRAKE error twice in a row while trying to set up their brake, then they should do the fol- lowing: With the brake plugged in but powered off, hold down the SETUP button while powering on the unit.
- Page 10 Blue Ox Patriot Detailed Explanation of Error Codes Page 11 of 16 405-0084 Rev. B 405-0084 Rev B 7/8/10 7/8/10...
- Page 11 Breakaway System Description of your product. Th e Breakaway system automatically activates the Patriot® to apply the brakes on your towed vehicle in the event the motorhome separates from the towed vehicle. Th is type of emergency system is required by most states and provinces.
- Page 12 Disconnecting Th is section will provide disconnecting information about the Patriot®. Perform these steps each time you remove the Patriot®. 1. Turn off the Patriot. Unplug the Patriot®’s power cord from the 12-volt accessory outlet. 2. Adjust the driver’s seat as far back as possible. 3.
- Page 13 Patriot® Accessories If you would like to order any of these accessory parts for your Patriot®, please contact a Blue Ox® Dealer or Distributor, or call a member of the Customer Care Team at (402) 385-3051 to order these parts.
- Page 14 Blue O x® pro cts at over RV R lies. Lo for our Destination America or Blue Ox® service crews at the next rally or race that you attend. fo for our De stin n ation n Amer...
