Please visit
www.blueox.com
33.5" wide x 17.7" deep and is 31.5" between the top corner eyelets
Attaches between the two Mud Flaps and eliminates damage from stones,
Please read these Installation Instructions in their entirety prior to
405-0836 Rev A
for the latest version of these installation instructions.

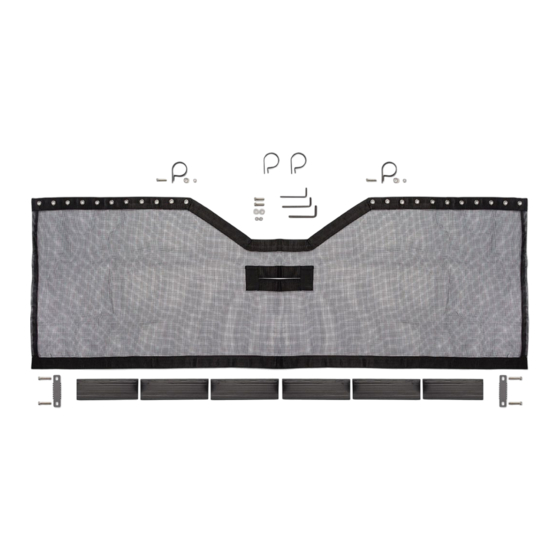

Mud Flap Rock Screen
Installation Instructions
Mud Flap Rock Screen
gravel, small debris, tar, etc. while traveling.
installing or operating this equipment.
CAUTION
!
Consumer assumes all risks associated with product performance
after installation. Blue Ox
everything and everyone from harm. Results may vary depending
upon road surface and conditions, vehicle types, weather
conditions, installation, and driving input. Please apply common
sense to you expectations relating to product performance.
BX88430
Mud Flap Rock Screen will not protect
TM
Page 1 of 8
10/4/23
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Blue Ox BX88430
Summary of Contents for Blue Ox BX88430
- Page 1 CAUTION Consumer assumes all risks associated with product performance after installation. Blue Ox Mud Flap Rock Screen will not protect everything and everyone from harm. Results may vary depending upon road surface and conditions, vehicle types, weather conditions, installation, and driving input.
- Page 2 BX88430 Mud Flap Rock Screen Installation Instructions Important Exhaust Systems Note: Any Modifications to the factory installed exhaust system may void your manufacturer’s warranty. Car Washes You must remove rock guard system before entering any drive-through car wash. Prop 65 WARNING: This product can expose you to chemicals including acrylonitrile, which is known to the state of California to cause cancer, birth defects, or reproductive harm.
- Page 3 (In most cases it will be Grade 5, please reference the parts list above). Replacement parts may be ordered through Blue Ox®. Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer’s warranty.
- Page 4 NOTE: The Bolt Bumpers should never be used on a vehicle with rear-facing exhaust 4. Remove the M8 Nylon Insert Hex Nuts and M8 Flat Washers from the Blue Ox Mud Flap System using a 13mm wrench or socket...
- Page 5 Mud Flap Rock Screen Installation Instructions 6. Affix the Rock Screen to the Blue Ox Mud Flap System by 1st placing the Rock Screen over the M8 Bolts and then placing the M8 Flat Washers over the Rock Screen. Secure the assembly using the M8 Nylon Insert Hex Nuts, as shown in Figure 2.
- Page 6 13. Using an awl or another sharp tool, carefully make holes in the Rock Screen large enough for an M6 bolt to fit through. 14. Assemble the Tension Clamps onto the Blue Ox Rock Screen and Mud Flap assembly as shown in Figure 5, using the included M6 x 30mm bolts.
- Page 7 Figure 5. Snap the Extrusions over the Rock Screen by pressing firmly to secure. 18. The Blue Ox Mud Flap and Rock Screen system is now ready to use. For optimum service and life, check components and the torque on all bolts prior to each use.
- Page 8 Kit, Mud Flap Trim Plates CUSTOMER SERVICE COMMITMENT Blue Ox® is committed to providing you with exceptional customer care throughout your lifetime with our products. Our team is here to assist you with any questions you may have regarding the performance of your product.
