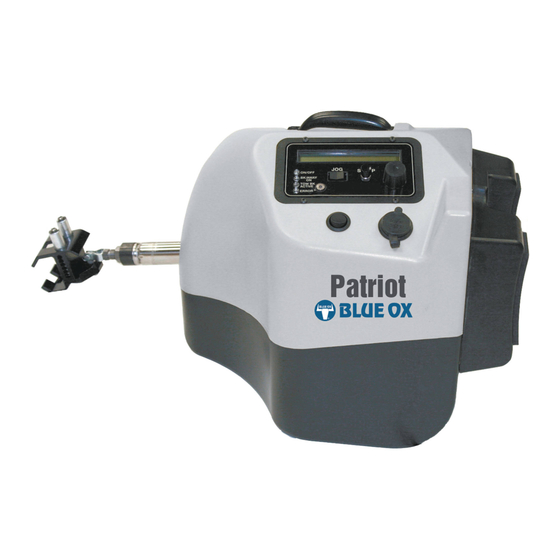

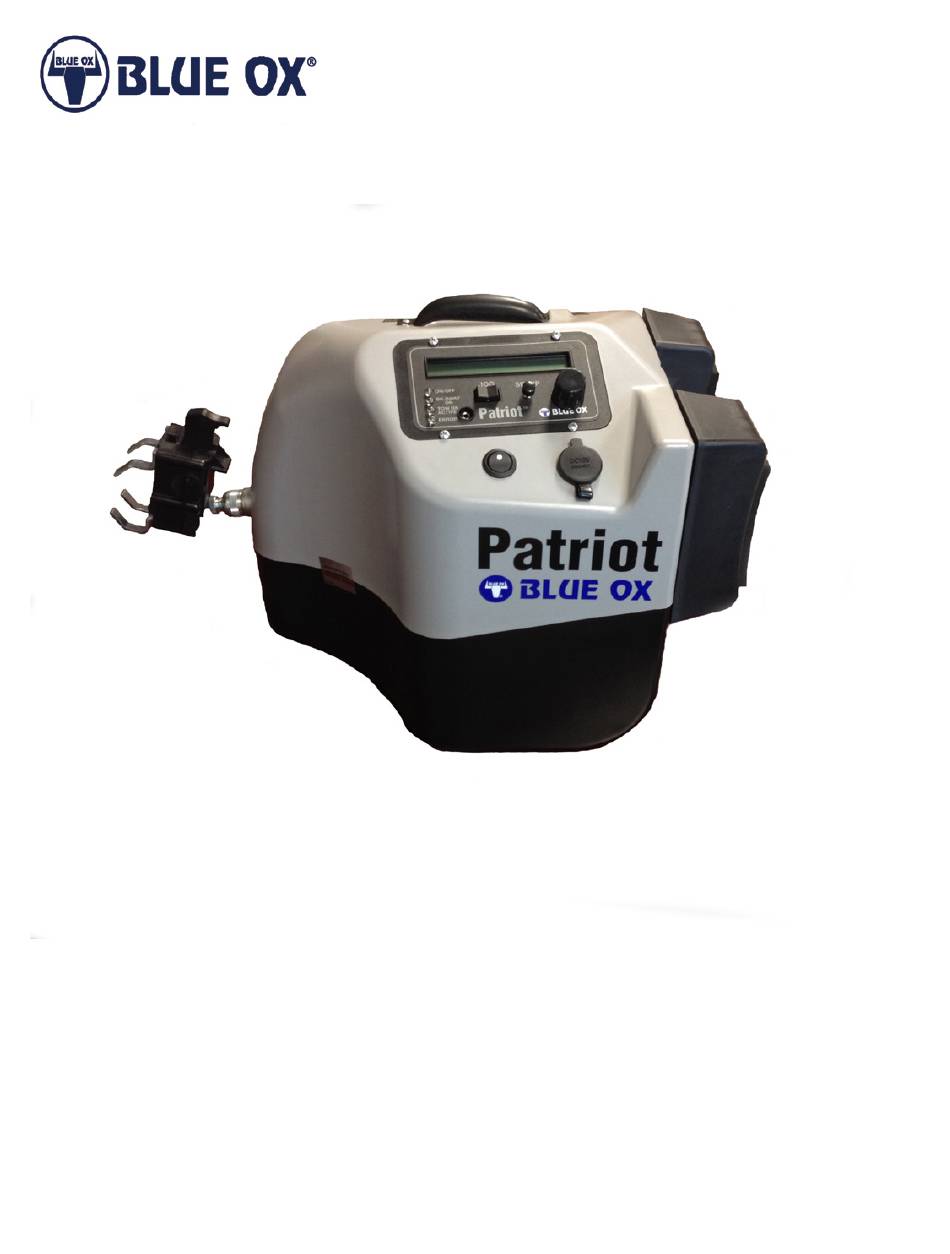

Patriot
Braking System
®
Owner's Manual & Installation Instructions
BRK2012
THANK YOU
for purchasing a Patriot
braking system from Blue Ox
. We've organized this manual to make your
®
®
installation simple and as trouble-free as possible. Please read before operating the brake. Keep your
sales receipt and this manual in a safe place so that both are available for future use if needed.
405-0260 Rev A
Page 1 of 12
2/4/14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blue Ox Patriot BRK2012
Summary of Contents for Blue Ox Patriot BRK2012
- Page 1 Owner’s Manual & Installation Instructions BRK2012 THANK YOU for purchasing a Patriot braking system from Blue Ox . We’ve organized this manual to make your ® ® installation simple and as trouble-free as possible. Please read before operating the brake. Keep your sales receipt and this manual in a safe place so that both are available for future use if needed.
- Page 2 Patriot Braking System ® Welcome to the Blue Ox Experience ® Congratulations! You are now the proud owner of a Patriot braking system. ® Welcome to the Blue Ox Family. The braking system that you have purchased combines quality ®...
-
Page 3: Safety And Compliance
Make sure ® that you have the appropriate items shown below. If NOT, please contact a Blue Ox® Dealer or Distributor, or call a member of the Customer Care Team at (402) 385-3051 to order replacement parts. - Page 4 Patriot Braking System ® Jog Switch Carrying Handle Information Display One-button Set-up Actuator Arm Brake “Claw” Adjustable Push Pad Plug-In Port On/Off Switch 12 Volt Receptacle (2 Amp Max) Patriot Brake Unit ® RF Remote Unit Manual Override 405-0260 Rev A Page 4 of 12 2/14/14...
-
Page 5: Initial Setup
Patriot Braking System ® Initial Set-Up In Towed Vehicle 1. Open the driver side door of the towed vehicle and push the driver seat back as far as possible. 2. Place the Patriot unit on the floor. ® 3. Open the brake claw and place it on the brake pedal. (Figure 1) Reference page 6 for claw operating instructions 4. - Page 6 Patriot Braking System ® Locking Brake Claw Operating Instructions To Open: 1. Place your thumb on top of the claw and place your pointer finger under the back ledge (right). Pinch your fingers together until the claw locks in place (left). To Close: 2.
-
Page 7: Installation Notes
Patriot Braking System ® Installation Notes When installing the Patriot on hybrids/vehicles with continuous power assist brakes or if the user gets the ® “REPOSITION BRAKE” error twice in a row while trying to set-up their brake, then they should do the following: 1. -
Page 8: Troubleshooting Error Codes
Patriot Braking System ® Troubleshooting/Error Codes Issue: If your remote is not receiving a signal or to pair a new or unpaired remote module. On the Remote: First, make sure the brake unit is plugged in and turned on. Hold down the “MANUAL OVERRIDE” lever while plugging in the remote cord. - Page 9 Brake. ® The brake is still fully functional and should return to normal operation within a few seconds. This may be due to the position of the controller, if the problem persists contact Blue Ox customer care. ® 405-0260 Rev A...
- Page 10 Patriot Braking System ® Breakaway Installation The Breakaway system automatically activates the Patriot to apply the brakes on your towed vehicle in the ® event the motor home separates from the towed vehicle. This type of emergency system is required by most states and provinces.
- Page 11 Patriot Accessories ® If you would like to order any of these accessory parts for your Patriot , please contact a Blue Ox Dealer ® ® or Distributor, or call a member of the Customer Care Team at (402) 385-3051 to order these parts.
-
Page 12: Maintenance
Also, as a commitment to our customers, should you visit our factory, you can stay at our full service Blue Ox® campground at no charge along with enjoying a factory tour. Again, thank you for being our customer and for the confidence you have shown in the performance of our products.
Need help?
Do you have a question about the Patriot BRK2012 and is the answer not in the manual?
Questions and answers
While pressing the brake on my motorhome, the tow bar on light does not light up and the in towed car the brake unit does not work. I am not getting an error code. What would be the problem?
If the tow bar light does not illuminate and the brake unit does not work on a Blue Ox Patriot BRK2012 while pressing the brake on a motorhome, a likely problem is that the unit is in CAR BATTERY LOW state. In this state, indicated by a flashing “4” with an intermittent beep, the actuator retracts and normal braking will not function. The system will only work in the event of a breakaway. Charging the towed vehicle’s battery or the unit’s battery and redoing the setup procedure is recommended.
This answer is automatically generated
You mention that the BRK2012 can function without the controller. Is it wise to do so or can the brake function without the controller?
Yes, the Blue Ox Patriot BRK2012 can function without the RF controller. However, it is recommended to use the controller for operational feedback.
This answer is automatically generated

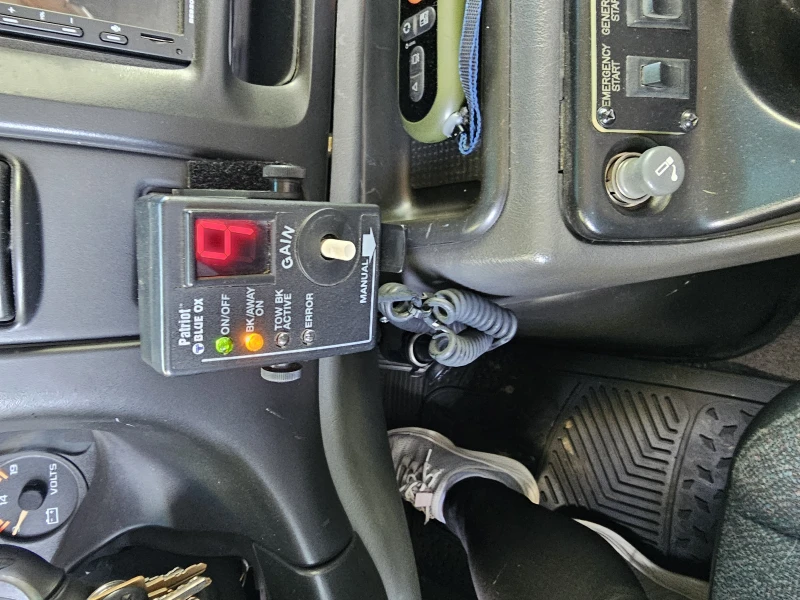

My BRK2012, when plugged in and brake away ready, shows a error code A05. The error light is on but not flashing. When activating the brake away, no response. I don't use a remote.
can you buy a rf contoller for the brk 2012
