Please visit
Attachment Tab Height: 15-1/2"
Attachment Tab Width: 24"
Please read BOTH these Installation Instructions and the General Information sheet prior to
1. Blue Ox
towing products and accessories are
®
intended to be installed by Blue Ox
who are familiar with our products and have the
equipment and knowledge necessary to do "fit
work". If needed, Blue Ox
at
www.blueox.com
Service Department at (402) 385-3051.
2. Many Blue Ox
baseplates are designed to
®
use existing holes and hardware to mount the
baseplate to the towed vehicle. Even though bolts
are there, do not assume they are adequate for
baseplate mounting. Always use the hardware
supplied in the hardware kit and existing hardware
as specified in the installation instructions.
If the front of your vehicle looks different than
this, please contact us at (402)385-3051.
Reference your vehicle owner's
manual for manufacturer's towing
specifications.
405-0244 Rev H
www.blueox.com
for the latest version of these installation instructions.
installing or operating this equipment.
Dealers
®
Dealers can be found
®
or by contacting our Technical

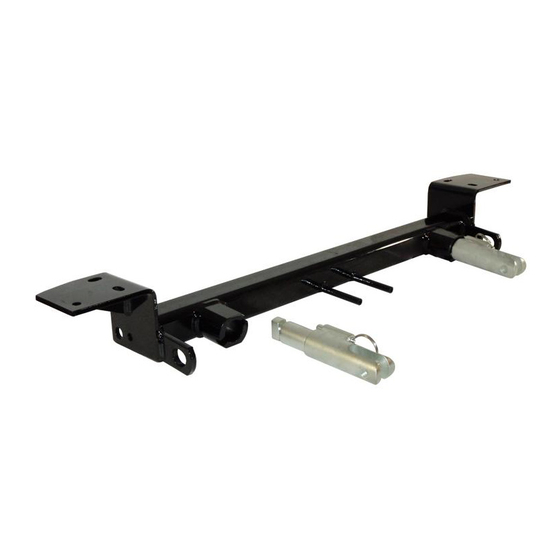

BX2258
2012-14 Honda CR-V
Installation Instructions
Serial Number
Bolt Torque Specifications
Torque in Foot-Pounds for Inch Bolts
Bolt Size
1/4"
5/16"
3/8"
7/16"
1/2"
5/8"
3/4"
Bolt Torque Specifications
Torque in Foot-Pounds for Metric Bolts
Bolt Size
6MM
8MM
10MM
12MM
14MM
16MM
18MM
!
Failure to read and follow these instructions
could result in separation of the towed vehicle
from the tow bar, causing property damage,
loss of towed vehicle, personal injury or death.
Page 1 of 10
Grade 5
Grade 8
10
19
33
54
78
119
154
230
257
380
Grade 8.8
Grade 10.9
6
16
31
54
89
161
222
WARNING
14
29
47
78
8
22
40
70
117
230
318
3/21/16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Blue Ox BX2258
Summary of Contents for Blue Ox BX2258
-
Page 1: Installation Instructions
1. Blue Ox towing products and accessories are ® Bolt Torque Specifications intended to be installed by Blue Ox Dealers ® Torque in Foot-Pounds for Inch Bolts who are familiar with our products and have the equipment and knowledge necessary to do “fit... - Page 2 BX2258 2012-14 Honda CR-V Installation Instructions Instruction Notes: The fascia, coolant line and temperature sensor are removed and reinstalled for the baseplate installation. The bumper is removed and not reinstalled. Some drilling and trimming is required. Place all components that are removed on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the baseplate is installed.
- Page 3 (In most cases it will be Grade 5, please reference the parts list above). Replacement parts may be ordered through your nearest Blue Ox® Dealer or Distributor. Failing to follow and/ or altering these installation instructions in either installation or required equipment will void the manufacturer’s warranty.
- Page 4 BX2258 2012-14 Honda CR-V Installation Instructions 1. Remove the four (4) push pins from the 2. Using a Phillips screwdriver remove the top edge of the fascia. screw at the bottom of the wheel well (white). Then remove the two (2) push pins located above the screw (gray).
- Page 5 BX2258 2012-14 Honda CR-V Installation Instructions 6. Carefully pry the wheel well trim back. 7. Pull the corners of the fascia out away With a Phillips screwdriver remove the from the vehicle. one (1) screw that is located towards the top portion of the wheel well.
- Page 6 BX2258 2012-14 Honda CR-V Installation Instructions 9. Using a 12MM socket, remove the four (4) bolts on the bumper core. There is one (1) on the top, one (1) on each side and one (1) on the bottom. Do this on both the sides of the vehicle.
- Page 7 BX2258 2012-14 Honda CR-V Installation Instructions P.S. D.S. 12. On the passenger side, cut straight down to remove the bottom portion. On the driver side, notch up 2-1/2” and straight out. P.S. D.S. 13. Additional cutting is required on the rubber mounts located next to the radiator. Mark each per image above and notch accordingly.
- Page 8 BX2258 2012-14 Honda CR-V Installation Instructions 15. On the passenger side, snap the coolant 16. Slide the tubes of the baseplate into the line out of the bracket and carefully move rectangular tubinf of the vehicle frame. over and out of the way.
- Page 9 BX2258 2012-14 Honda CR-V Installation Instructions 19. Insert a 1/2”-13 x 1-1/2” bolt, 1/2” lock 20. Make sure the coolant line does not and flat washer into the bottom hole. interfere with the attachment tab. Then Use a 1/2”-13 nut plate on the inside of snap the coolant line back into the the frame.
- Page 10 Also, as a commitment to our customers, should you visit our factory, you can stay at our full service Blue Ox® campground at no charge along with enjoying a factory tour. Again, thank you for being our customer and for the confidence you have shown in the performance of our products.
-
Page 11: General Information
The illustrations below show the possible arrangements recommended by Blue Ox®. Each permanent baseplate safety cable must have an adequate weight rating for the towing system. The weight rating of the two (2) cables together will not qualify. - Page 12 BLUE OX ORIGINAL PURCHASERS THREE YEAR LIMITED WARRANTY Automatic Equipment Manufacturing Company (“Automatic”) warrants to the original (first) retail purchaser that this product, manufactured by Automatic, shall be free from defect in material and workmanship under normal use and service for a period of three years from the date of delivery.
