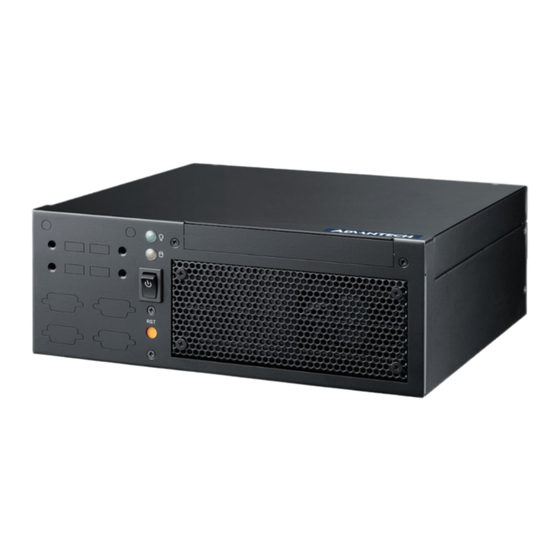

Advantech AIMB-B2205 Series User Manual

Advantech AIMB-B2205 Series User Manual

Embedded mini-itx chassis computer
Table of Contents

Advertisement

Quick Links

User Manual
AIMB-B2205 Series
Embedded Mini-ITX Chassis
Computer
嵌入式 Mini-ITX 微型计算机
嵌入式 Mini-ITX 微型電腦

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIMB-B2205 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech AIMB-B2205 Series

  • Page 1 User Manual AIMB-B2205 Series Embedded Mini-ITX Chassis Computer 嵌入式 Mini-ITX 微型计算机 嵌入式 Mini-ITX 微型電腦...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 4 從購買之日起,研華為原購買商提供兩年的產品品質保證。但對那些未經授權的維修 人員維修過的產品並不進行品質保證。研華對於不正確的使用、災難、錯誤安裝產生 的問題有免責權利。 如果研華產品出現故障,在保固期內我們提供免費維修或更換服務。對於保固外產品, 我們將會酌收材料費、人工服務費用。請聯繫您的銷售人員瞭解詳細情況。 如果您認為您購買的產品出現了故障,請遵循以下步驟: 收集您所遇到的問題的資訊 (例如,CPU 頻率、使用的研華產品及其它軟體、硬 體等) 。請注意螢幕上出現的任何不正常資訊顯示。 打電話給您的供應商,描述故障問題。請參考手冊,產品和任何有幫助的資訊。 如果您的產品被診斷發生故障,請從您的供應商那裏獲得 RMA (Return Material Authorization) 序號。這可以讓我們儘快的進行故障產品的回收。 請仔細的包裝故障產品,並在包裝中附上完整的售後服務卡片和購買日期證明 (如銷售發票) 。我們對無法提供購買日期證明的產品不提供保固服務。 把相關的 RMA 序號寫在外包裝上,並將其運送給銷售人員。 Packing List/ 包装清单 / 包裝清單 Before setting up the system, check that the items listed below are included and in good condition.
  • Page 5  4 x 用于底部安装支架的 M4 螺丝 (P/N: 1930003238)  4 x 用于安装母板的 M3*6L 螺丝 (P/N: 1939000361)  8 x 安装 HDD 的 M3 螺丝 (P/N: 1930004607)  1 x 用于 HDD 的麦拉 (P/N: 1990009411T000)  1 x 带麦拉的 HDD 支架 (P/N: 1960057977N000, 1990009411T000) ...
  • Page 6 Declaration of Conformity/ 符合性声明 / 符合性聲明 This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclo- sure products.
  • Page 7 若需技術支援,請諮詢經銷商或經驗豐富的無線電 / 電視技術人員 Technical Support and Assistance/技术支持与服务/技 術支援與服務 Visit the Advantech website at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 8 的同一種或者同等型號的電池進行替換。請按照製造商的指示處理舊電 池。 Document Feedback/ 意见反馈 / 意見回饋 To assist us in making improvements to this manual, we welcome comments and constructive criticism. Please send all such - in writing - to: support@advantech.com 为了使手册更加完善,欢迎您对我们的手册进行评价并提出宝贵意见。请将您的意见 发送至:support@advantech.com 為了使手冊更加完善,歡迎您對我們的手冊進行評價並提出寶貴意見。請將您的意見 發送至:support@advantech.com AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 9 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 10 请仔细阅读此安全操作说明。 请妥善保存此用户手册供日后参考。 用湿抹布清洗设备前,请从插座拔下电源线。请不要使用液体或去污喷雾剂清洗 设备。 对于使用电源线的设备,设备周围必须有容易接触到的电源插座。 请不要在潮湿环境中使用设备。 请在安装前确保设备放置在可靠的平面上,意外跌落可能会导致设备损坏。 设备外壳的开口是用于空气对流,从而防止设备过热。请不要覆盖这些开口。 当您连接设备到电源插座上前,请确认电源插座的电压是否符合要求。 请将电源线布置在人们不易绊到的位置,并不要在电源在线覆盖任何杂物。 请注意设备上的所有警告和注意标语。 如果长时间不使用设备,请将其同电源插座断开,避免设备被超标的电压波动损 坏。 请不要让任何液体流入通风口,以免引起火灾或者短路。 请不要自行打开设备。为了确保您的安全,请由经过认证的工程师来打开设备。 如遇下列情况,请由专业人员来维修: 电源线或者插头损坏; 设备内部有液体流入; 设备曾暴露在过于潮湿的环境中使用; 设备无法正常工作,或您无法通过用户手册来使其正常工作; 设备跌落或者损坏; 设备有明显的外观破损。 请不要把设备放置在超出我们建议的温度范围的环境,即不要低于 -20°C (- 4°F)或高于 60°C (140°F) ,否则可能会损坏设备。 注意:计算机配置了由电池供电的实时时钟电路,如果电池放置不正确,将有爆 炸的危险。因此,只可以使用制造商推荐的同一种或者同等型号的电池进行替 换。请按照制造商的指示处理旧电池。 若产品出货未配电源装置 , 请参考操作手册中的相关说明 , 需要选用经过 UL 认 证的电源供应器供电 , 额定输出为 12 V,5 A 并且可在 40°C 环境温度下操作的 电源。...
  • Page 11 如遇下列情況,請由專業人員來維修: 電源線或者插頭損壞; 設備內部有液體流入; 設備曾暴露在過於潮濕的環境中使用; 設備無法正常工作,或您無法通過用戶手冊來使其正常工作; 設備跌落或者損壞; 設備有明顯的外觀破損。 請不要把設備放置在超出我們建議的溫度範圍的環境,即不要低於 -20°C (-4 °F)或高於 60°C (140°F) ,否則可能會損壞設備。 注意:電腦配置了由電池供電的即時時鐘電路,如果電池放置不正確,將有爆 炸的危險。因此,只可以使用製造商推薦的同一種或者同等型號的電池進行替 換。請按照製造商的指示處理舊電池。 若產品出貨未附帶電源裝置,請參考操作手冊中的相關說明 , 需要選用由 UL 認 證的電源供應器供電 , 額定輸出為 12 V,5 A 並且可在 40°C 環境溫度下操作之 電源。 根據 IEC 704-1:1982 的規定,操作員所在位置的聲壓級不可高於 70dB(A)。 免責聲明:該安全指示符合 IEC 704-1 的要求。研華公司對其內容的準確性不承擔任 何法律責任。...
  • Page 12 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 13: Table Of Contents

    Contents/ 目录 / 目錄 Chapter General Information 概述 產品資訊 ......1 Specifications/ 产品规格 / 產品規格 ........2 Table 1.1: General Features of AIMB-B2205/AIMB-B2205 系列一 般特性.........2 Environmental Specification/ 环境规格 / 環境規格 ....3 Table 1.2: Environmental Specification/ 环境规格 / 環境規格 ...3 Power Supply Options/ 电源选项 / 電源選項 ......4 Table 1.3: Power Supply Options/ 电源选项...
  • Page 14 系統操作 ......13 The Front Side/ 机箱前部 / 機箱前部 ......14 3.1.1 Power Button/ 电源按钮 / 電源開關......14 Figure 3.1 Power button location/ 电源按钮位置 / 電源開關位置1 4 3.1.2 Reset Button/ 电源重置按钮 / 電源重置按鈕....14 Figure 3.2 Reset button/ 电源重置按钮 / 電源重置按鈕 ..14 3.1.3 LED Indicators/LED 指示灯...
  • Page 15: Chapter 1 General Information 概述 產品資訊

    Chapter General Information 概述 產品資訊...
  • Page 16: Specifications/ 产品规格 / 產品規格

    Specifications/ 产品规格 / 產品規格 Table 1.1: General Features of AIMB-B2205/AIMB-B2205 系列一般特性 Chassis Construction Heavy-duty steel 机箱结构 重型刚 機箱結構 重型鋼 (HDD 1 supports max. 12.5 mm height; HDD 2 supports max.9.5 mm height Disk Drive Bay Internal 2.5" HDD 1 最高支持 12.5 mm 厚度; HDD2 最高支 磁盘驱动支架...
  • Page 17: Environmental Specification/ 环境规格 / 環境規格

    2 pcs for AIMB-B2205-15ZE (7 cm/ 39.45 CFM each), 1 pcs for AIMB-B2205-00YE (7 cm/ 39.45 CFM) AIMB-B2205-15ZE 带 2 个 (每个尺寸为 7 Cooling System System Fan cm/ 39.45 CFM ) 冷却系统 系统风扇 AIMB-B2205-00YE 带一个 (每个尺寸为 7 冷卻系統 系統風扇 cm/ 39.45 CFM) AIMB-B2205-15ZE 帶...
  • Page 18: Power Supply Options/ 电源选项 / 電源選項

    Power Supply Options/ 电源选项 / 電源選項 Table 1.3: Power Supply Options/ 电源选项 / 電源選項 Input Output Specifications & Mini-Load Watts Part No. 输入 输出 规格 & 最小负载 輸入 輸出 規格 & 最小負載 +3.3 V @ 10 A +3.3 V @ 0.3 A +5 V @ 13 A +5 V @ 1.0 A 96PS-A150WFX-1...
  • Page 19: Chapter 2 System Setup And Maintenance 系统安装和维护 系統安裝和維護

    Chapter System Setup and Maintenance 系统安装和维护 系統安裝和維護...
  • Page 20: Removing The Chassis Cover/移除机箱顶盖/移除 機箱上蓋

    Removing the Chassis Cover/移除机箱顶盖/移除 機箱上蓋 Figure 2.1 Removing the chassis cover/ 移除机箱顶盖 / 移除機箱上蓋 Installing & Changing the Motherboard/ 安装和 更换母板 / 安裝和更換主機板 Figure 2.2 Installing the motherboard/ 安装母板 / 安裝主機板 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 21: Installing The Hdd & Odd/ 安装 Hdd & Odd/ 安裝 Hdd & Odd

    Installing the HDD & ODD/ 安装 HDD & ODD/ 安裝 HDD & ODD Figure 2.3 Installing HDD-1 & Mylar/ 安装 HDD-1 & 麦拉 / 安裝 HDD-1 & 麥拉 Figure 2.4 Installing HDD-2/ 安装 HDD-2/ 安裝 HDD-2 7 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 22: 裝 Odd & Hdd 支架

    Figure 2.5 Install ODD / 安装 ODD/ 安裝 ODD Figure 2.6 Installing ODD & HDD Bracket/安装ODD & HDD支架/安裝ODD & HDD支架 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 23: Installing The I/O Shield /安装I/O挡板/安裝I/O擋 板

    Installing the I/O Shield /安装I/O挡板/安裝I/O擋 板 Figure 2.7 Installing IO Shielding/ 安装 IO 挡板 / 安裝 IO 擋板 Installing the Add On Card/ 安装外接卡 / 安裝外接 卡 Figure 2.8 Remove dummy bracket / 移除 dummy 支架 9 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 24: Pcie & Pci 卡

    Figure 2.9 Installing PCIE & PCI CARD/ 安装 PCIE & PCI 卡 / 安裝 PCIE & PCI 卡 Installing the power supply/安装系统电源/安裝系 統電源 Figure 2.10 Installing power supply bracket/ 安装电源支架 / 安裝電源支架 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 25: Installing Bottom Mounting Brackets/安装机箱底 座支架 / 安裝機箱底座支架

    Figure 2.11 Installing System power supply/ 安装系统电源 / 安裝系統電源 Installing Bottom Mounting Brackets/安装机箱底 座支架 / 安裝機箱底座支架 Figure 2.12 Installing Bottom Mounting Brackets/ 安装机箱底座支架 / 安裝機箱底 座支架 11 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 26 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 27: Chapter 3 Operation

    Chapter Operation 系统操作 系統操作...
  • Page 28: The Front Side/ 机箱前部 / 機箱前部

    The Front Side/ 机箱前部 / 機箱前部 3.1.1 Power Button/ 电源按钮 / 電源開關 Figure 3.1 Power button location/ 电源按钮位置 / 電源開關位置 3.1.2 Reset Button/ 电源重置按钮 / 電源重置按鈕 Figure 3.2 Reset button/ 电源重置按钮 / 電源重置按鈕 3.1.3 LED Indicators/LED 指示灯 /LED 指示燈 Table 3.1: Definition of LED indicators/LED 指示灯定义 /LED 指示燈定義 Icon Description Light...
  • Page 29: The Rear Side/ 机箱后部 / 機箱後部

    The Rear Side/ 机箱后部 / 機箱後部 3.2.1 Replacing the System Fans/ 更换系统风扇 / 更換系統風扇 Figure 3.3 Loosen the rear cover screws/ 卸下后盖螺丝 / 卸下後蓋螺絲 Figure 3.4 Replacing the system fans/ 更换系统风扇 / 更換系統風扇 15 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 30: The Bottom Side/ 机箱底部 / 機箱底部

    The Bottom Side/ 机箱底部 / 機箱底部 3.3.1 Removing the Bottom Cover/ 机箱底盖 / 機箱底蓋 Figure 3.5 Removing the Bottom Cover/ 移除机箱底盖 / 移除機箱底蓋 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 31: Exploded Diagram 分解图 分解圖

    Appendix Exploded Diagram 分解图 分解圖...
  • Page 32: Exploded Diagram Of Aimb-B2205-15Ze /Aimb-B2205-15Ze 分解图 /Aimb- B2205-15Ze 分解圖

    Exploded Diagram of AIMB-B2205-15ZE /AIMB- B2205-15ZE 分解图 /AIMB-B2205-15ZE 分解圖 Fan Bracket/ 风扇支架 / 風扇支架 Power Supply/ 电源 / 電源 System Fans/ 系统风扇 / 系統風扇 HDD 2/ 硬盘 2/ 硬碟 2 Bottom Chassis/ 底部机箱 / 底部機箱 HDD Holder/HDD 支架 Bottom Cover/ 底盖 / 底蓋 ODD &...
  • Page 33: Aimb-B2205-00Ye Exploded Diagram & Parts List/Aimb-B2205-00Ye 分解 图 & 部件列表 /Aimb-B2205-00Ye 分解圖 & 部件列表

    AIMB-B2205-00YE Exploded Diagram & Parts List/AIMB-B2205-00YE 分解图 & 部件列表 /AIMB- B2205-00YE 分解圖 & 部件列表 Fan Bracket/ 风扇支架 / 風扇支 HDD 2/ 硬盘 2/ 硬碟 2 架 System Fans/系统风扇/系統風 HDD Holder/HDD 支架 扇 Bottom Chassis/ 底部机箱 / 底 ODD & HDD Holder/ODD & HDD 支架 部機箱...
  • Page 34 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
  • Page 35: Motherboard & Power Supply Options 母板 & 电源选项 主機板 & 電源選項

    Appendix Motherboard & Power Supply Options 母板 & 电源选项 主機板 & 電源選項...
  • Page 36 Motherboard & Power Options / 母板 & 电源选项 / 主機板 & 電源選項 Table B.1: Motherboard & Power Options/ 母板 & 电源选项 / 主機板 & 電源選項 Chassis Model Name Motherboard Expansion Slot Power Supply 机箱型号名 母板 扩展槽 电源 機箱型號 主機板 擴充槽 電源...
  • Page 37 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2019 www.advantech.com.cn 使用前请检查核实产品的规格。本手册仅作为参考。 产品规格如有变更,恕不另行通知。 未经研华公司书面许可,本手册中的所有内容不得通过任何途经以任何形式复制、翻...
  • Page 38 AIMB-B2205 User Manual/ 用户手册 / 用戶手冊...
