Summary of Contents for Carel boss micro BMBST00DP0

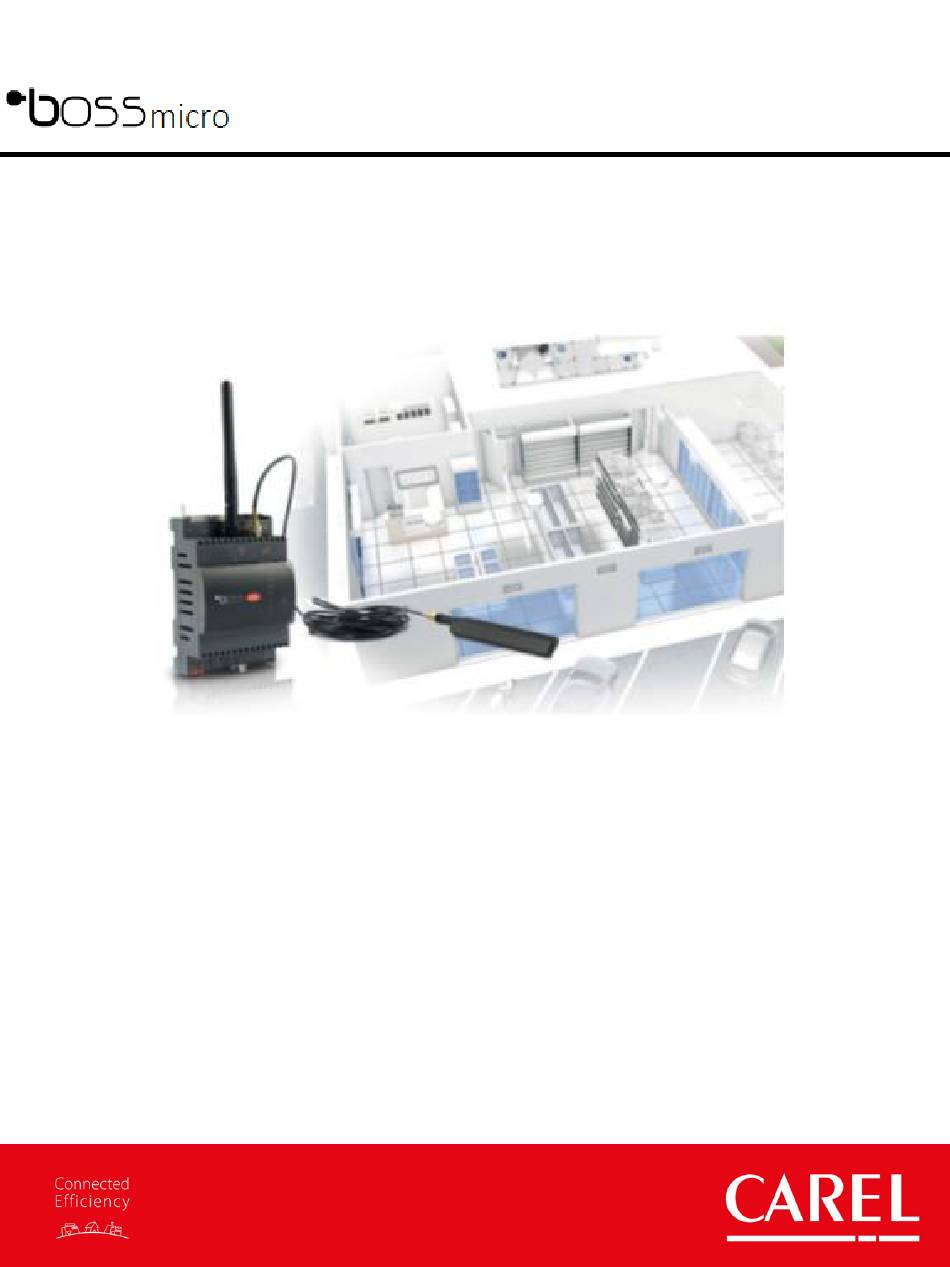

- Page 1 Hardware Guide Total Connectivity for High Efficiency Control Solutions...

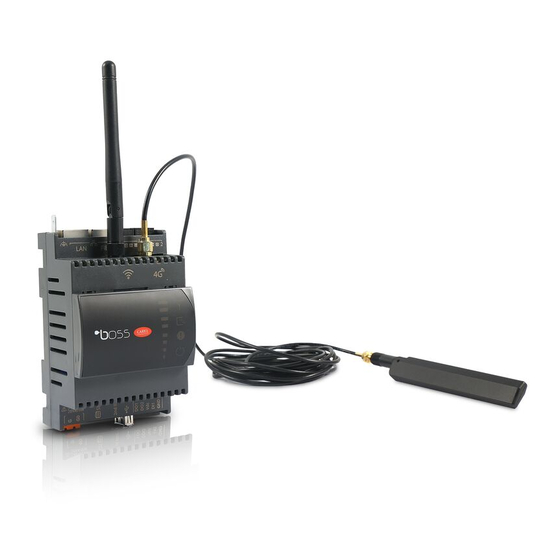

- Page 2 Models and Connections Model Description BMBST00DP0 boss micro 15 device with WIFI and 4G BMBST00FP0 boss micro 15 device with WIFI Accessories BMEPS00AU Power supply 24VDC 1.5A BMESTRLA00 Boss family 3x relay expansion module BMBSTEWA00 WIFI antenna 3m extension BMBSTEGA00 4G antenna 3m extension...
- Page 3 Connections BMESTRLA00 - Boss mini 3x relay expansion Optional relay expansion for external alarm notification from boss micro. Can be programmed for other uses where relay activation is required. Connection is made by screw terminals using standard low voltage wiring. Attention: wiring is depending on type of power supply to boss micro! 24Vac Power supply: relay module, 24Vdc Power supply: relay module,...
-
Page 4: Main Features
Main Features • Built in WIFI: Access to local mobile devices. Site personnel and service technicians connect to the boss’ own Wi-Fi connection and can scan the QR code to access the boss’ pages. Connectivity to wireless Modbus Gateway. Further details on page 20 •... - Page 5 First Access Procedure Connecting over LAN port: • Apply power to the boss micro unit • Follow the steps to activate the 2nd IP address on page 8 • Connect your PC via LAN ethernet connection • Open browser and insert https://172.16.0.33 •...
- Page 6 Default IP Connection Default IP connection setup for boss micro This is useful when resetting the network settings You will need: • boss micro and power supply • Windows PC or laptop • Ethernet cable To setup a direct connection on boss micro LAN port, you need to first setup your PC network to match the path of the default IP address of 172.16.0.33 .
-
Page 7: Connection Via Wifi
Connection via WIFI boss’s local WIFI connection is suited for easy connection with local mobile or tablet devices. Note: This connection is not for connecting the boss to the internet. To connect, scan using your device’s WIF for your unique boss device and connect directly. By default the SSID is “boss-”... - Page 8 Connecting boss micro to the Internet The following information is intended for the IT professional in order to achieve connectivity of the boss unit to the local network. Internet network connection is via standard CAT5/6 ethernet cable. (The WIFI on the boss family is for local WIFI networking only) The Field ethernet port is for Bacnet/ Modbus communications.
- Page 9 The above information is given as general information to help IT professionals achieve the clients request for connectivity to LAN. Carel Australia is unable to provide further guidance on how to set up the TCP/IP network, this is the job of the IT personnel.
- Page 10 4G connectivity Initial connection setup for boss micro Part Number: BMBST00DP0, boss micro 4G with WIFI Accessory: BMBSTEGA00, 3m External 4G Antenna General Note: − SIM card is not provided, standard size data SIM required − Before installation review local 3G/4G reception −...
- Page 11 4G connectivity Boss micro setup: Use the WIFI access or the LAN port with temporary IP access to connect to the boss micro and access the System administration After the successful login navigate to the Network configuration in the main menu. If the main menu doesn’t appear please open it up with a click on the “burger”...
- Page 12 4G connectivity In the Modem settings it’s possible to setup advanced SIM settings, please check with SIM provider/ service account setup: • User/ Password – depending on security requirements • APN – Access Point Name, depending on the SIM provider and data plan •...
-
Page 13: Troubleshooting
Troubleshooting LED indicator: 4G modem Status • Green: 4G modem active • Green flashing: temporary IP on LAN port enabled I/O Status • Green: Digital Input closed • OFF: Digital Input open Alarm Status • Red flashing: Alarm active • Yellow: Device not initialized (start-up not finalised) System ON Signal and Relay Status... - Page 14 Notes...
- Page 15 CAREL Australia Pty.Ltd ACN. 067 528 269 Head Office - Sydney Technical Support PH. (02) 8762 9200 FAX (02) 9764 6933 Ph: (02) 8762 9200 Email: cst.au@carel.com Melbourne Office Sales PH. (03) 9550 0898 FAX (03) 9550 0878 Ph: (02) 8762 9200 Email: sales.au@carel.com...
