WHITE MAGIC
MODELS: WW JB 629 –13 A & WW JB 629 –H3A
Fully Automatic Washing Machine
PARTS &SERVICE Manual
White Magic – AWD6800
MODEL:
WW JB 629 –13 A (WHITE)
AND WW JB 629 –H3A (GREY)
This document is only intended for qualified technicians who are aware of the respective safety regulations.
Releaded Date 27
h
Feb, 2001
Subject to modification
Document No. WOI/WM/2001/001
PAGE 1 of 44
Advertisement
Related Manuals for Whirlpool White Magic
Summary of Contents for Whirlpool White Magic
- Page 1 WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A Fully Automatic Washing Machine PARTS &SERVICE Manual White Magic – AWD6800 MODEL: WW JB 629 –13 A (WHITE) AND WW JB 629 –H3A (GREY) This document is only intended for qualified technicians who are aware of the respective safety regulations.
- Page 2 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A CONTENTS MODEL: WW JB 629 –13 A and WW JB 629 –H3A Sl_No DESCRIPTION PAGE NO External views Introduction & special features Specifications A look at the control panel...
- Page 3 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.

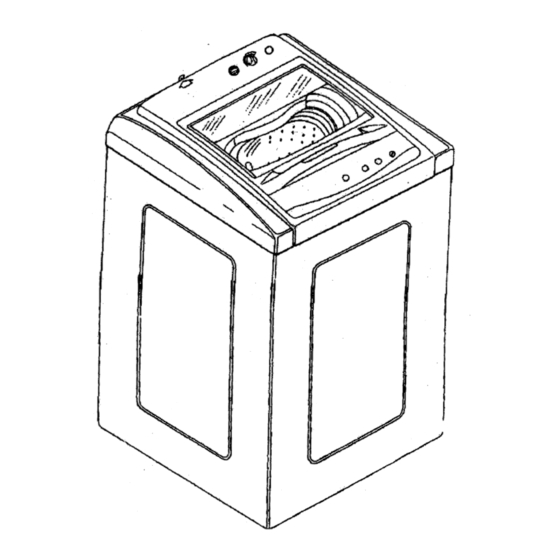

- Page 4 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A REAR VIEW FRONT VIEW 1. Introduction This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27...
- Page 5 WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A Whirlpool White magic is the new generation of top loading dual action agitator type fully automatic washing machine with the following distinctive features • 6.2 Kg of dry clothes capacity.
- Page 6 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A Model description : White Magic. Dimensions Unpacked 570 mm (W) x 585 mm (D) x 1020mm (H) 38 Kg. Packed 615 mm (W) x 623 mm (D) x 1037mm (H) 44 Kg.
- Page 7 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A 2.18 Basket : Double walled (Plastic + Stainless steel). 2.20 Water level switch : Rotary type with 4 indications(Extra low, Low, Medium, High) for variable water selection between 25 and 60 liters.
- Page 8 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A A LOOK AT THE CONTROL PANEL The following are the knobs/switches available at the control panel: The water inlet select, water level select and power switches are on the top rear of the M/c where as the program, option, start pause and cancel controls are available on the top front of the M/c (part of the escutcheon).
- Page 9 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A The level of water is to be varied depending on the volume of clothes to be washed. The clothes should get fully immersed for proper wash action. Adequate water enhances washing effectiveness as free cloth movement, roll over action will give better washing.
- Page 10 Spin Press fifth time Spin • Agitronic soak is a unique option available in white magic, which will enhance the wash performance. • Wash only option can be used as a water saver feature for two wash loads. • Wash, rinse option can be used if customer does not prefer spin dry clothes.
- Page 11 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A From the above details on the various controls available, it is clear that the user can choose the combination of various course SOAK, WASH, RINSE AND SPIN and program NORMAL, SPEEDY, DELICATE AND HEAVY.
- Page 12 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A Before installing the machine make sure of the following facilities Electrical requirements A 220 Volts, 5Amps socket with proper earth and fuse is required.
- Page 13 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A 8. The machine is now with thermocouple packing at the bottom, which is to be removed by lifting the machine. 9. Then remove the thermocole and the machine will rest on castor (Classic) or foot (Excel).
- Page 14 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 15 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 16 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 17 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 18 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 19 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 20 SAP M ODEL NO. Sl_No Sap No. Description 1120 1121 P0143600100 LID ASSY. (GREY) WHITE MAGIC P0143600200 LID ASSY. (WHITE) WHITE MAGIC P0153300400 TOP WMAGIC AWD6800 SEC OPNS (GREY) P0153301000 TOP WMAGIC AWD6800 SEC OPNS (WHITE) P0143410400 CONTROL PANEL - WHITE MAGIC...
- Page 21 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 22 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 23 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A TOP ASSEMBLY SAP M ODEL NO. Sl_No Sap No. Description 1120 1121 P012531020A WATER INLET VALVE (TM) P014354010C PCB ASSY. ALAVINCI - ALPHA P014341010A...
- Page 24 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 25 Description 1120 1121 P010114020F SUSP.ASSY. (REAR) P011114010A SUSP. ASSEMBLY (FRONT) P010110030A STRAP-SNUBBER P0143210200 CABINET ASSY. (WHITE) - WHITE MAGIC P0143210100 CABINET ASSY. (GREY) -WHITE MAGIC P0101004100 COVER CABINET - GREY P010100400I COVER CABINET - WHITE P010770010C FOOT P0125800000 DANGLER -FILL HOSE P0110000000 DRAIN HOSE ASSY.(D=32, L=800)
- Page 26 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 27 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A BASKET AND AGITATOR ASSEMBLY SAP M ODEL NO. Sl_No Sap No. Description 1120 1121 P0143150400 BLUE DISPENSER ASSY. - WM -WHITE P0143100200 DUAL ACTION AGITATOR SUB ASSY.
- Page 28 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 29 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A TUB AND TUB SUPPORT ASSEMBLY SAP M ODEL NO. Sl_No Sap No. Description 1120 1121 P010112000C TUB ASSY. P010110100A HOSE-TUB OVER FLOW P0152100100 HOSE - TUB TO DV ( HEATER) P0129110100 DRIVE ASSY.
- Page 30 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 31 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A MOTOR AND MOTOR PLATE ASSEMBLY SAP M ODEL NO. Sl_No Sap No. Description 1120 1121 P010111460A DRIVE BELT P010111180B DUMP VALVE ASSY. P0101111200 CUP WASHER - PULLEY SPLUTCH...
- Page 32 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A CHART NO. - 1 WATER NOT FILLING Is M/c switch on? Switch on the M/c Water at the tap end? Ensure water at the tap...
- Page 33 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A IS PCB DEFECTIVE? (Check any loose contact and then on START mode check 220V AC at the end of two wire of Replace PCB valve inlet using a multimeter.If not, indicates...
- Page 34 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A Is Pressure switch Replace Pressure switch defective? Is air dome clogged? Clean air dome Is PCB Compatible / Replace PCB Defective CHART NO. - 3...
- Page 35 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A Dump valve hook / Connect hook / PIP PIP came out Clogged DV / Hose Clean the related tub to DV / Hose tub...
- Page 36 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A CHART NO. - 4 NO SPIN Is lid open? Close the lid Lid switch defective? Replace lid switch Defective brake Replace brake solenoid solenoid?
- Page 37 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A Defective capacitor Replace capacitor Defective splutch Replace splutch assembly? assembly Defective Motor / Replace motor / Drive Belt? drive belt NO AGITATION Defective pressure...
- Page 38 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A Defective wiring Replace wiring harness? harness Defective Capacitor Replace capacitor Replace Motor Defective Motor Assembly Arrest the leak Leaky dump valve Replace drive belt...
- Page 39 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 40 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A This document is only intended for qualified technicians who are aware of the respective safety regulations. Releaded Date 27 Feb, 2001 Subject to modification Document No.
- Page 41 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A...
- Page 42 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A...
- Page 43 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A...
- Page 44 Whirlpool of India WHITE MAGIC MODELS: WW JB 629 –13 A & WW JB 629 –H3A...
