Berkley Jensen 280393 Assembly Instructions Manual

14x12 hardtop gazebo with cedar wood post
Hide thumbs

Advertisement

Quick Links

Download this manual

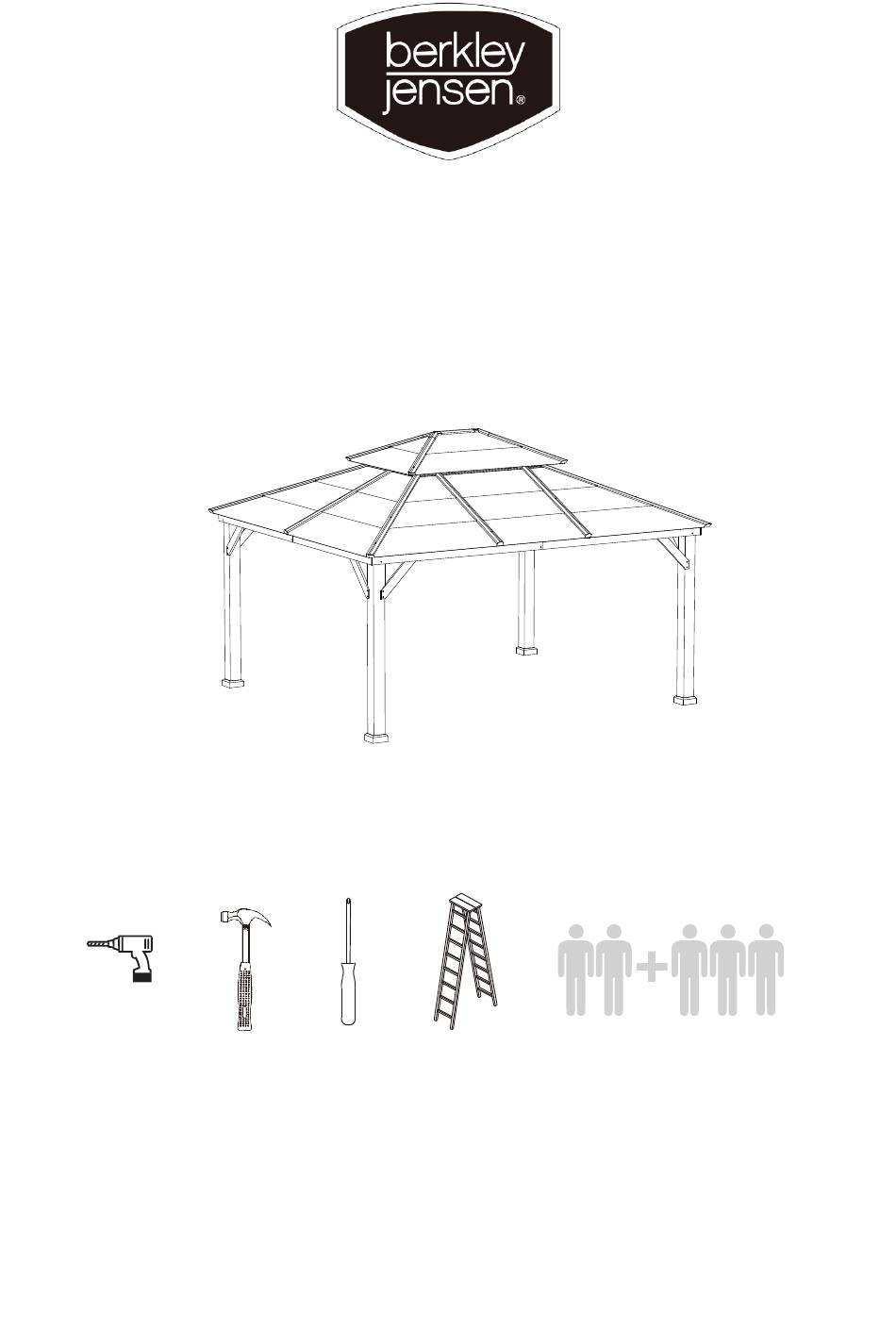

ASSEMBLY INSTRUCTIONS
Note: The gazebo needs to be installed in cooperation with four people.
The following tools are not included and needed for assembly:
Drill
If you have comments or questions, please contact BJ's Wholesale Club at 1-800-934-1204.
If you have any issues with the product, do not return the product back to the store.
For any questions, replacement parts or issues about our product, call Sunjoy Customer
Service 1(866) 578 6569. For further assistance, please email us at bj@sunjoygroup.com.
HARDTOP GAZEBO
WITH CEDAR WOOD POST
A RT ICLE # 280393
Hammer
Screwdriver
14'x12'
Ladder
5 people

Advertisement

loading
Need help?

Need help?

Do you have a question about the 280393 and is the answer not in the manual?

Questions and answers

Related Manuals for Berkley Jensen 280393

Summary of Contents for Berkley Jensen 280393

  • Page 1 14’x12’ HARDTOP GAZEBO WITH CEDAR WOOD POST A RT ICLE # 280393 ASSEMBLY INSTRUCTIONS Note: The gazebo needs to be installed in cooperation with four people. The following tools are not included and needed for assembly: Drill Hammer Screwdriver Ladder 5 people If you have comments or questions, please contact BJ’s Wholesale Club at 1-800-934-1204.

  • Page 2: Important Safety Instructions

    2 / 38 Important Safety Instructions Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo. Caution! Always keep children under close supervision while they are using or around this product. Never leave children unattended.

  • Page 3: Part List

    3 / 38 Part List Description Label Part Number Part Image Post P000200227 Lateral Left Long P000400506 Beam Lateral Right Long P000400507 Beam Outer Long Left P000400946 Beam(Long) Outer Long Right P000400947 Beam(Long) Inner Long Beam P000400510 Inner Short Beam P000400511 (Long Side) Inner Short...
  • Page 4 4 / 38 Big Roof Sloping P00060196701 Beam Big Roof Middle P00060197301 Beam Left Mosquito Netting Rod (Short P00570034703 Side) Right Mosquito Netting Rod (Short P00570034803 Side) Left Mosquito Netting Rod P00570034903 (Oversize Long Side) Right Mosquito Netting Rod P00570035003 (Oversize Long Side) Small Roof...
  • Page 5 5 / 38 Small Roof Lower P00070104201 Panel (Short Side) Small Roof Lower P00070104401 Panel (Long Side) Big Roof Inclined P00080035601 Beam Cap Small Top Cover P00090015201 Big Roof Upper Top Beam (Short P00060199301 Side) Big Roof Upper Top Beam (Long P00060198501 Side) Big Roof Middle...
  • Page 6 6 / 38 Big Roof Upper Panel (Short Side) P00070096601 Big Roof Upper Roof Panel (Long P00070104501 Side) 1 Big Roof Upper Roof Panel (Long P00070104601 Side) 2 Big Roof Middle Upper Roof Panel P00070104701 (Long Side) Big Roof Middle Panel (Short Side) P00070097601 Big Roof Middle...

  • Page 7: Hardware Pack

    7 / 38 Big Roof Inclined P00080033801 Beam Cap Big Roof Middle P00080034901 Beam Cap Hardware Pack Part Number Label Description Part Image H100010047 Bolt M6*20 250+13 H100010059 Bolt M6*45 24+2 H010010449 Bolt M10*205 H100010054 Bolt M8*25 24+2 H100010055 Bolt M8*35 16+1 Screw H030050058...
  • Page 8 8 / 38 Flat Washer H050080007 16+1 Flat Washer H050080008 24+2 Non-slip Nuts H040050026 H040090004 T-Nut M8*8 24+2 H040090005 T-Nut M8*20 16+1 H090990002 M3 Drill H070010003 Stake Φ8*180 M6 Wrench H090010017 Allen Key M8 H090030005 M10 Wrench H090010015...
  • Page 9 9 / 38 Install the post base.
  • Page 10 10 / 38 Install the T-Nut.
  • Page 11 11 / 38 Connect Inner Beam.
  • Page 12 12 / 38 Connect the Outer Beam.
  • Page 13 13 / 38 Tightenl the Screw.
  • Page 14 14 / 38 Connect the Lower Connector for Middle Beam to Beam. Locating hole...
  • Page 15 15 / 38 Connect the Beam to the post.
  • Page 16 16 / 38 Install the Lower Connector for Slanting Beam.
  • Page 17 17 / 38 Install the Arc Support. d1=d2 Rt∠90 Assembly Tip on Step 8: Please measure to make sure the length of d1 is equal to d2 before moving to next step to ensure a square frame and best results. Keep the beam at right angles to the post, the post at right angles to the ground, and keep the beam horizontal.
  • Page 18 18 / 38 Connect the Big Roof Short Connector Tube (EV) to Big Roof Long Frame (DL) with the Big Top Corner Connector (CE).
  • Page 19 19 / 38 Install the Big Roof Sloping Beam.
  • Page 20 20 / 38 Install the Big Roof Middle Beam.
  • Page 21 21 / 38 Install Mosquito Netting Rod.
  • Page 22 22 / 38 Install the Small roof and the hook.
  • Page 23 23 / 38 Connected the installed 14 step to the installed 1-13 step.
  • Page 24 24 / 38 Install the Small Roof Top Beam.
  • Page 25 25 / 38 Install the Small Roof Panel Flashing.
  • Page 26 26 / 38 Install the Small Roof Upper Panel.
  • Page 27 27 / 38 Install the Small Roof Lower Panel.
  • Page 28 28 / 38 Install the Big Roof Inclined Beam Cap (FF) & Small Top Cover (DV).
  • Page 29 29 / 38 Install the Big Roof Middle Beam.
  • Page 30 30 / 38 Install the Big Roof Upper Top Beam (DX, DW) & Big Roof Middle Top Beam (BY).
  • Page 31 31 / 38 Install the Big Roof Upper Top Beam (EA) & Big Roof Middle Top Beam (BY, DY).
  • Page 32 32 / 38 Install the Big Roof Lower Top Beam.
  • Page 33 33 / 38 Install the Big Roof Upper Panel.
  • Page 34 34 / 38 Install the Big Roof Middle Panel.
  • Page 35 35 / 38 Install the Big Roof Lower Panel.
  • Page 36 36 / 38 Install the Big Roof Inclined Beam Cap & Big Roof Middle Beam Cap.
  • Page 37 37 / 38 Secure the assembled gazebo to the lawn with the stakes (HS).

  • Page 38: Cleaning And Maintenance

    38 / 38 Cleaning and Maintenance Caution! Check all screws and nuts periodically for tightness, fastening them again as required.  Disassemble the gazebo in the reverse order of the assembly steps. Always disassemble the  gazebo completely. A partially disassembled gazebo is not stable enough to resist wind and bad weather, and therefore can be damaged and/or cause damage.
