Berkley Jensen 254274 Assembly Instructions Manual

12'x14' steel hardtop gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual

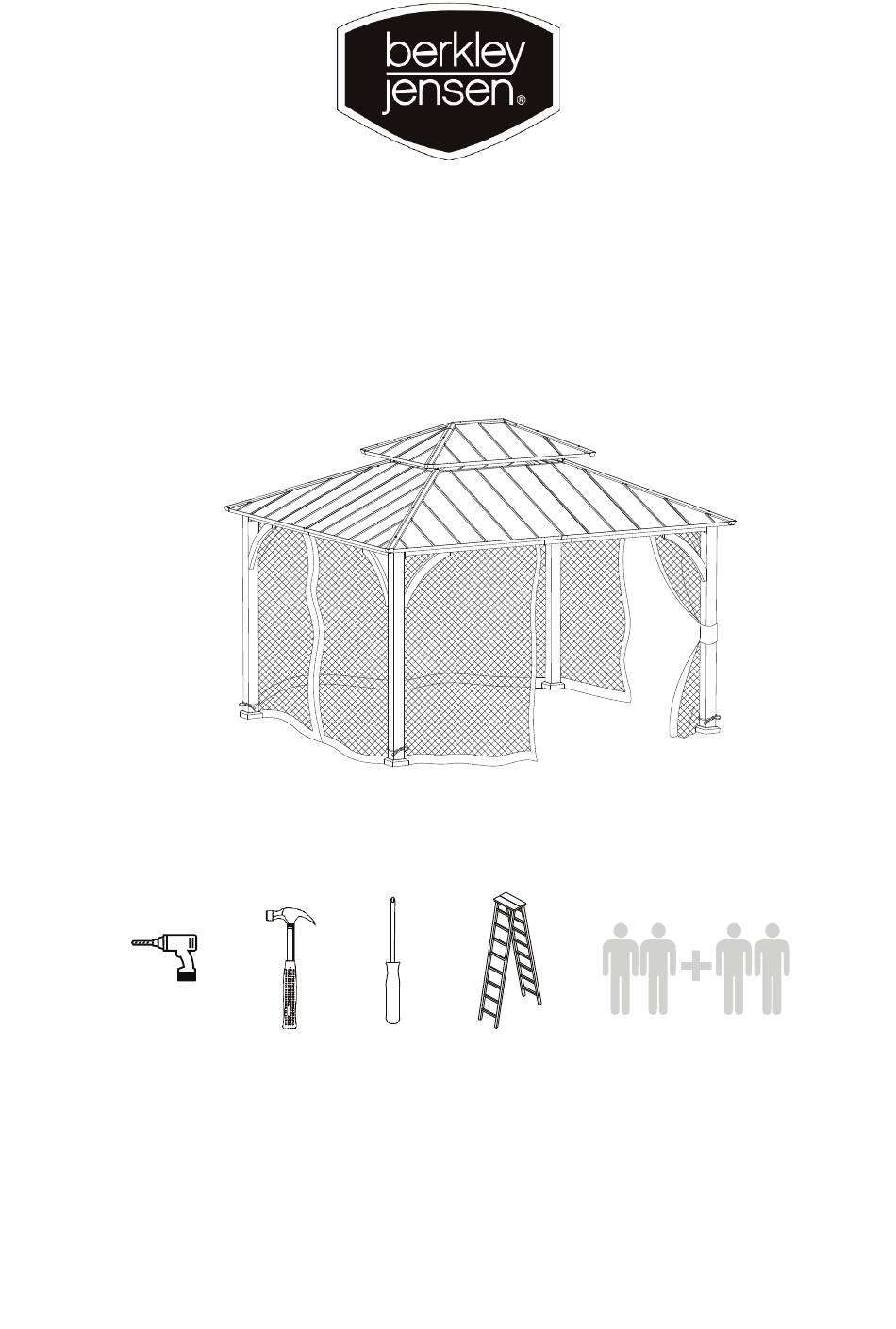

12'X14' STEEL HARDTOP GAZEBO
ASSEMBLY INSTRUCTIONS
Note: The gazebo needs to be installed in cooperation with four people.
The following tools are not included and needed for assembly:
If you have comments or questions, please contact BJ's Wholesale Club at 1-800-934-1204.
If you have any issues with the product, do not return the product back to the store.
For any questions, replacement parts or issues about our product, call Sunjoy Customer
Service 1(866) 578 6569. For further assistance, please email us at bj@sunjoygroup.com.
A R T I C L E # 2 5 4 274
Drill
Hammer
Screwdriver
Ladder
4 people

Advertisement

loading
Need help?

Need help?

Do you have a question about the 254274 and is the answer not in the manual?

Questions and answers

Related Manuals for Berkley Jensen 254274

Summary of Contents for Berkley Jensen 254274

  • Page 1 12’X14’ STEEL HARDTOP GAZEBO A R T I C L E # 2 5 4 274 ASSEMBLY INSTRUCTIONS Note: The gazebo needs to be installed in cooperation with four people. The following tools are not included and needed for assembly: Drill Hammer Screwdriver...

  • Page 2: Important Safety Instructions

    2 / 31 Important Safety Instructions Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo. Caution! Always keep children under close supervision while they are using or around this product. Never leave children unattended.

  • Page 3: Part List

    3 / 31 Part List Description Label Part Number Part Image Post P000200570 Stake cover P006100210 Stake base P000100409 Bottom oblique P00050024901 bar connector Left long cross P00040115701 beam Right long cross P00040115801 beam Left short cross P000401106 beam Right short cross P000401107 beam Cross beam...
  • Page 4 4 / 31 Description Label Part Number Part Image Mosquito netting P00570034901 bar 3 Mosquito netting P00570035001 bar 4 Mosquito netting P00570034701 bar 1 Mosquito netting P00570034801 bar 2 Small roof P00050156401 connector Small roof P00060105801 oblique bar Hook P005800001 Small roof middle P00060195901 Small roof short...
  • Page 5 5 / 31 Description Label Part Number Part Image Short beam 2 P00060200001 Long edge bar 2 P00060201201 Long edge bar 3 P00060201601 Short edge bar 1 P00060201301 Short edge bar 2 P00060201701 Big roof panel 1 P00070103501 Big roof panel 3 P00070102101 Big roof panel 4 P00070102601...
  • Page 6 6 / 31 Description Label Part Number Part Image Small roof panel 4 P00070093801 Small roof panel 5 P00070093701 Small roof oblique P00080018901 bar cover Long beam 1 P00060200901 Long edge bar 1 P00060201801 Big roof panel 2 P00070103601 Mosquito netting P00120023801...

  • Page 7: Hardware Pack

    7 / 31 Hardware Pack H100010047 Bolt M6*20 428+22 H100010046 Bolt M6*40 16+1 P005100264 Ring 60+3 H070010003 H090010017 Wrench M6...
  • Page 8 8 / 31 Install the post base.
  • Page 9 9 / 31 Connect the Left short cross beam to Right long cross beam.
  • Page 10 10 / 31 Connect the Installed cross beam to the post.
  • Page 11 11 / 31 Connect the Installed cross beam to the post.
  • Page 12 12 / 31 Install the four curve support.
  • Page 13 13 / 31 Connect the top roof long bar to top roof short bar use the top roof corner.
  • Page 14 14 / 31 Install the oblique bar.
  • Page 15 15 / 31 Install the middle bar.
  • Page 16 16 / 31 Install the Mosquito netting bar.
  • Page 17 17 / 31 Install the Small roof and the hook.
  • Page 18 18 / 31 Connected the installed 10 step to the installed 1-9 step.
  • Page 19 19 / 31 Install the small roof short edge bar & small roof long edge bar.
  • Page 20 20 / 31 Install the Small roof short edge bar & Small roof long edge bar.
  • Page 21 21 / 31 Install the small roof panel.
  • Page 22 22 / 31 Connect the small roof oblique bar cover to the small roof top cover.
  • Page 23 23 / 31 Install the Middle bar.
  • Page 24 24 / 31 Install the Short beam & long beam.
  • Page 25 25 / 31 Install the Long edge bar.
  • Page 26 26 / 31 Install the panel.
  • Page 27 27 / 31 Tighten the bolt.
  • Page 28 28 / 31 Install the Big roof oblique bar cover.
  • Page 29 29 / 31 Install the Mosquito netting. Please match the zippers for different panels as shown in picture...
  • Page 30 30 / 31 Secure the assembled gazebo to the lawn with the stakes (HS).

  • Page 31: Cleaning And Maintenance

    31 / 31 Cleaning and Maintenance Caution! Check all screws and nuts periodically for tightness, fastening them again as required. Disassemble the gazebo in the reverse order of the assembly steps. Always disassemble the gazebo completely. A partially disassembled gazebo is not stable enough to resist wind and bad weather, and therefore can be damaged and/or cause damage.
