Berkley Jensen 254273 Assembly Instructions Manual

Steel hardtop gazebo

Advertisement

STEEL HARDTOP GAZEBO
ASSEMBLY INSTRUCTIONS
Note: The gazebo needs to be installed in cooperation with four people.
The following tools are not included and needed for assembly:
If you have comments or questions, please contact BJ's Wholesale Club at 1-800-934-1204.
If you have any issues with the product, do not return the product back to the store.
For any questions, replacement parts or issues about our product, call Sunjoy Customer
Service 1(866) 578 6569. For further assistance, please email us at bj@sunjoygroup.com.
A R T I C L E # 2 5 4 273
Drill
Hammer
10'x12'
Screwdriver
Ladder
4 people

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 254273 and is the answer not in the manual?

Questions and answers

Carl Schroeder
March 31, 2025

Need replacement parts

1 comments:
Mr. Anderson
March 31, 2025

The replacement parts available for Berkley Jensen part number 254273 include:

- Roof panels: Panel 4 (AY P00070101401), Panel 5 (BA P00070101601), Panel 6 (BB P00070101001), Panel 7 (BC P00070101201)
- Oblique roof panel: BD P00080034401
- Bar cover with mosquito netting: BE P001200263
- Hardware Pack:
- H1 Bolt M6×20 (H100010047): 338+17 pieces
- H2 Bolt M6×40 (H100010046): 12+1 pieces
- HR Ring (P005100264): 52+3 pieces
- HS component (H070010003): 8 pieces
- HW Wrench M6 (H090010017)

These parts are listed as components of the gazebo and can be considered for replacement.

This answer is automatically generated

Melanie Sweet
July 26, 2025

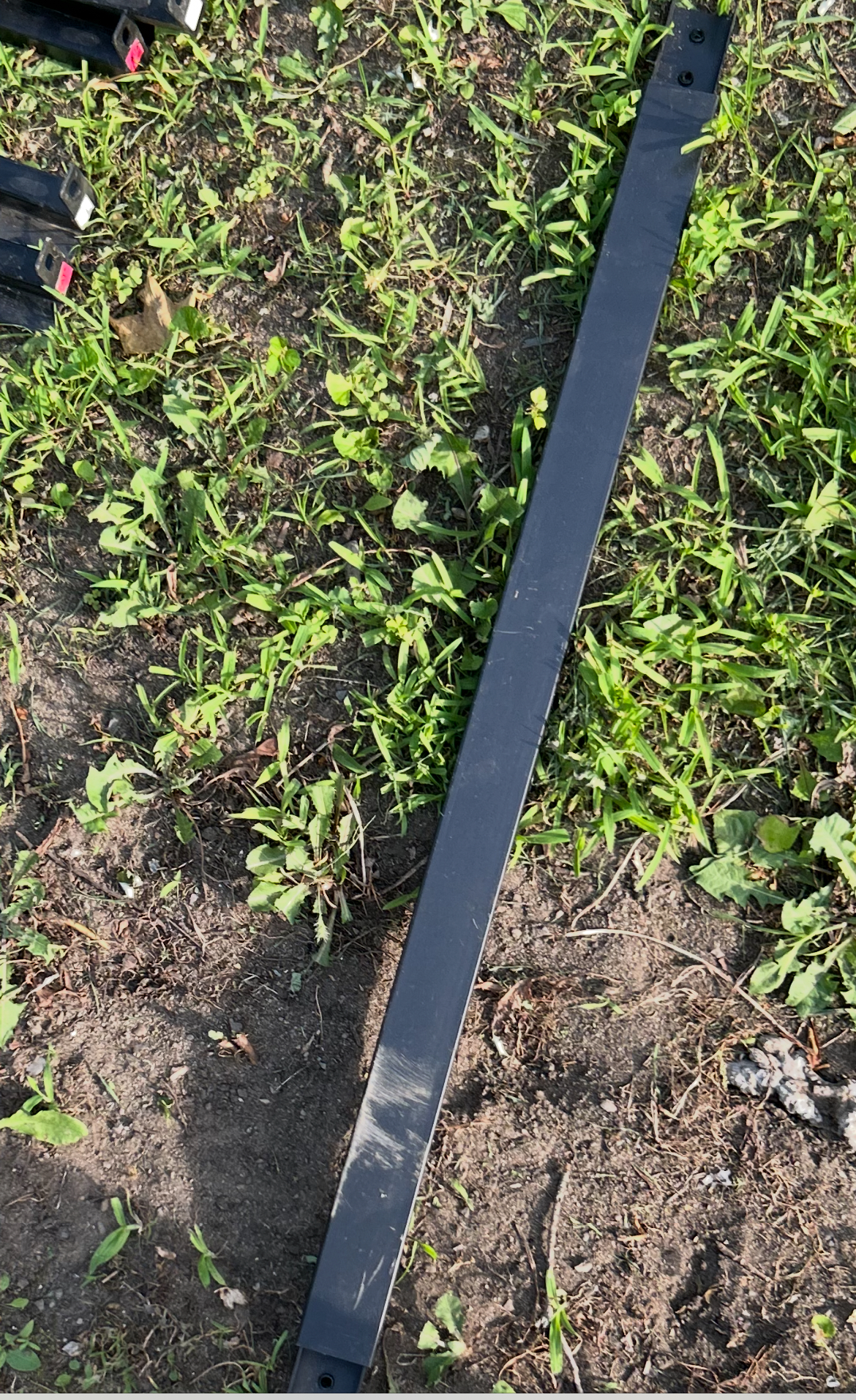

Missing one top roof short bar p00050157301 would like to purchase

User image 68855ee511c66
Melanie Sweet
July 26, 2025

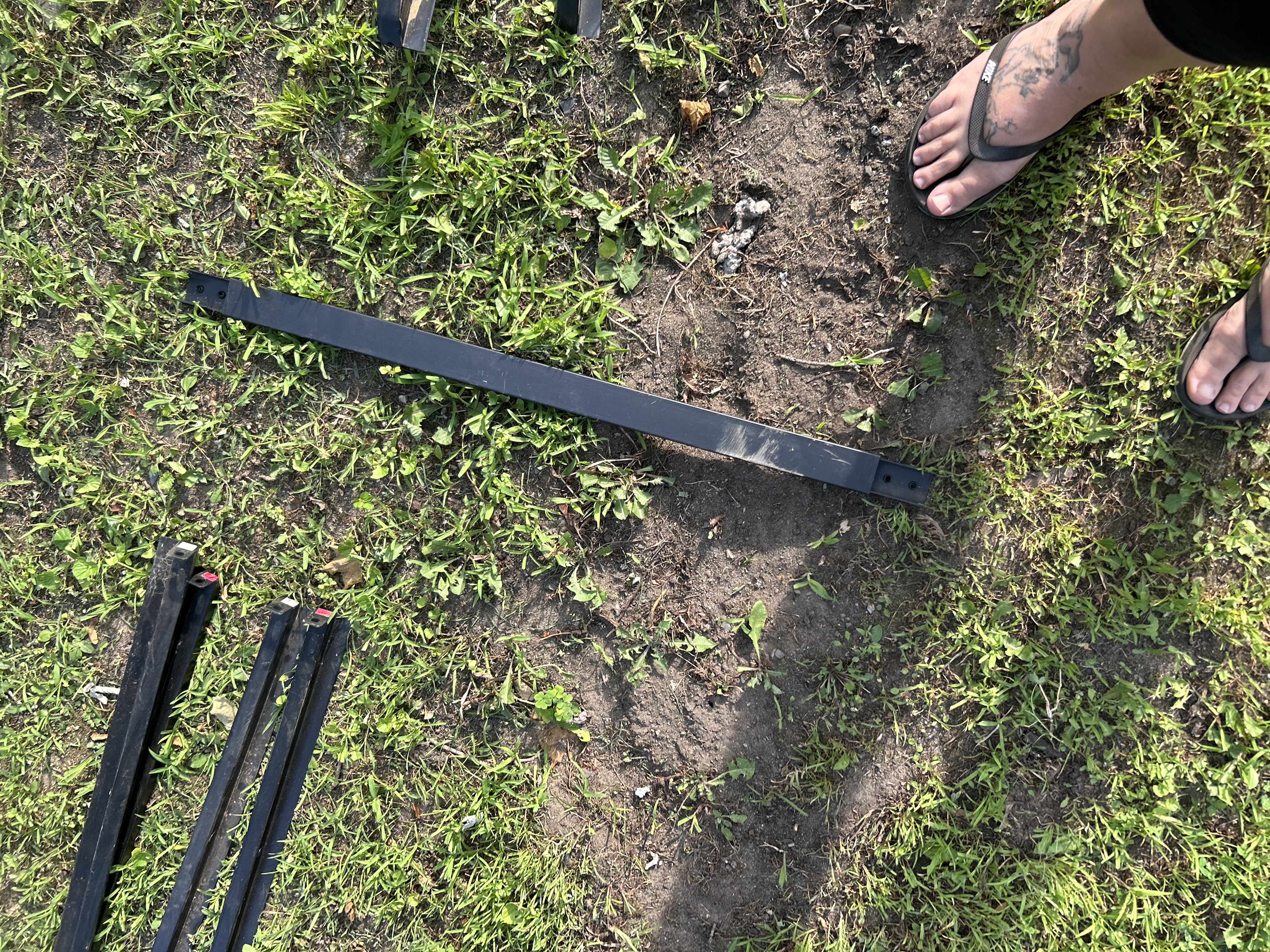

Missing a piece

User image 68855e4462d6b
Greg A Steinmetz
June 26, 2025

Hi. Is part number P00050156301 available to be ordered for Berkley Jensen Sunjoy 10x12 Steel gazebo model 254273 ?

Shannon Jopson
March 15, 2025

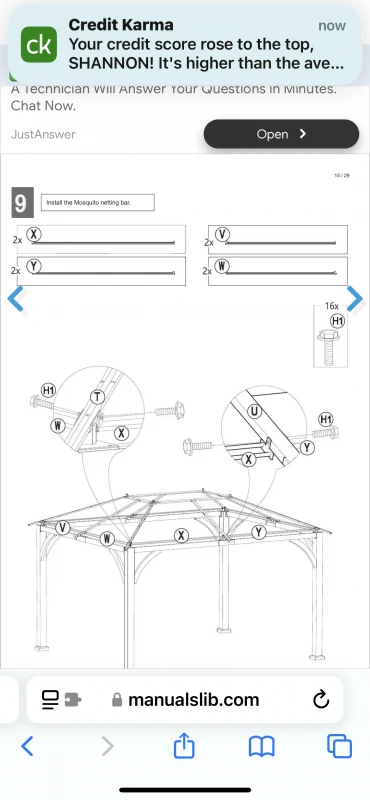

Can I order replacement parts? We need 2 of item X, part number P00570034701

User image 67d5829760f1e

Summary of Contents for Berkley Jensen 254273

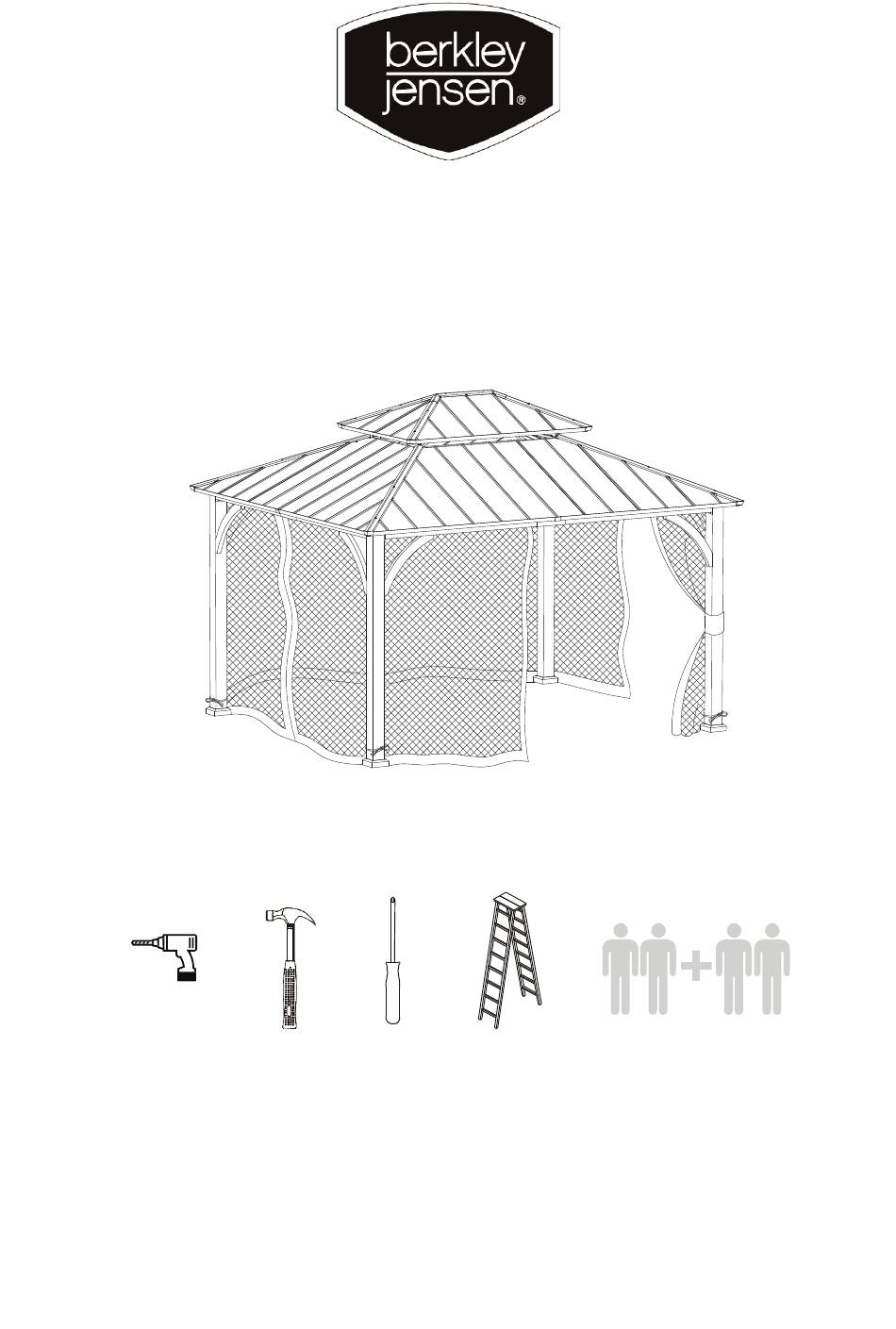

  • Page 1 10’x12’ STEEL HARDTOP GAZEBO A R T I C L E # 2 5 4 273 ASSEMBLY INSTRUCTIONS Note: The gazebo needs to be installed in cooperation with four people. The following tools are not included and needed for assembly: Drill Hammer Screwdriver...
  • Page 2 2 / 29 Important Safety Instructions Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo. Caution! Always keep children under close supervision while they are using or around this product. Never leave children unattended.
  • Page 3 3 / 29 Part List Description Label Part Number Part Image Post P000200570 Stake cover P006100210 Stake base P000100409 Bottom oblique P00050024901 bar connector Left long cross P000401106 beam Right long cross P000401107 beam Left short cross P000401104 beam Right short cross P000401105 beam Cross beam...
  • Page 4 4 / 29 Mosquito netting P00570034501 bar 1 Mosquito netting P00570034601 bar 2 Mosquito netting P00570034701 bar 3 Mosquito netting P00570034801 bar 4 Small roof P00050156301 connector Small roof P00060023601 oblique bar Hook P005800001 Small roof short P00060202101 edge bar Small roof long P00060202301 edge bar...
  • Page 5 5 / 29 Big roof short bar 4 P00060201601 Big roof long bar 3 P00060201301 Big roof long bar 4 P00060201701 Big roof panel 1 P00070103501 Big roof panel 2 P00070102101 Big roof panel 3 P00070102601 Big roof panel 4 P00070101401 Big roof panel 5 P00070101601...
  • Page 6 6 / 29 Hardware Pack H100010047 Bolt M6*20 338+17 H100010046 Bolt M6*40 12+1 P005100264 Ring 52+3 H070010003 H090010017 Wrench M6...
  • Page 7 7 / 29 Install the post base.
  • Page 8 8 / 29 Connect the Left short cross beam to Right long cross beam.
  • Page 9 9 / 29 Connect the Installed cross beam to the post.
  • Page 10 10 / 29 Connect the Installed cross beam to the post.
  • Page 11 11 / 29 Install the four curve support.
  • Page 12 12 / 29 Connect the top roof long bar to top roof short bar use the top roof corner.
  • Page 13 13 / 29 Install the oblique bar.
  • Page 14 14 / 29 Install the middle bar.
  • Page 15 15 / 29 Install the Mosquito netting bar.
  • Page 16 16 / 29 Install the Small roof and the hook.
  • Page 17 17 / 29 Install the Small roof long edge bar.
  • Page 18 18 / 29 Install the Small roof panel.
  • Page 19 19 / 29 Install the Small roof oblique bar cover (AK) & Small roof top cover (AL).
  • Page 20 20 / 29 Install the Big roof short bar (AM, AM) & Big roof long bar (AP, AQ).
  • Page 21 21 / 29 Install the Big roof long bar.
  • Page 22 22 / 29 Install the Big roof panel.
  • Page 23 23 / 29 Install the Big roof panel.
  • Page 24 24 / 29 Install the Big roof panel.
  • Page 25 25 / 29 Install the Big roof panel.
  • Page 26 26 / 29 Install the Big roof oblique bar cover.
  • Page 27 27 / 29 Install the Mosquito netting. Please match the zippers for different panels as shown in picture...
  • Page 28 28 / 29 Secure the assembled gazebo to the lawn with the stakes (HS).
  • Page 29 29 / 29 Cleaning and Maintenance Caution! Check all screws and nuts periodically for tightness, fastening them again as required. Disassemble the gazebo in the reverse order of the assembly steps. Always disassemble the gazebo completely. A partially disassembled gazebo is not stable enough to resist wind and bad weather, and therefore can be damaged and/or cause damage.
