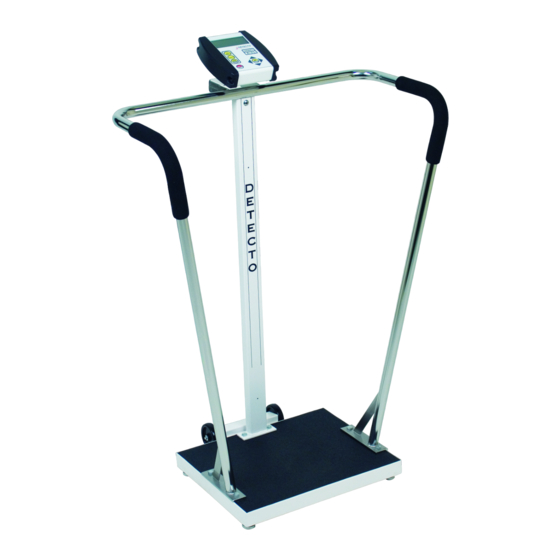

- Page 1 Waist-High Stand-On Scale Models 6855, 6855KGEU 6856 & 6856KGEU Operating Instructions...
-
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment generates uses and can radiate radio frequency and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. - Page 4 1930-M458-O1 Waist-High 685X Series...
-
Page 5: Specifications
WAIST-HIGH STAND-ON SCALE Thank you for purchasing our model 6855 / 6855KGEU or 6856 / 6856KGEU Waist-High Stand-On Scale. It has been manufactured with quality and reliability at our factory in Webb City, MO USA. Your scale has been tested before leaving our factory to insure accuracy and dependability for years to come. -
Page 6: Unpacking Instructions
UNPACKING INSTRUCTIONS Remove staples or cut along bottom of carton. Lift carton off pallet. Check for any damage incurred in shipping. If scale has been damaged, place a claim with the carrier. It is the responsibility of the purchaser to file all claims for any damages or loss incurred during transit. -
Page 7: Operation
OPERATION DO NOT operate the keypad with pointed objects (pencils, pens, etc). Damage to keypad resulting from this practice is NOT covered under warranty. To Weigh 1. Set scale on any hard, level, flat surface or low-cut carpet. 2. Press ON / OFF key to turn on indicator. -
Page 8: Height Rod Instructions
HEIGHT ROD INSTRUCTIONS Height Rod Hole Location Please check Height Rod hole locations before installing Height Rod. Some models may require holes to be drilled. Please follow the measurements for drilling holes if necessary. After holes have been drilled, please follow installation instructions. - Page 9 HEIGHT ROD INSTRUCTIONS, CONT. Height Rod Operating Guide 1. Before patient steps onto scale platform, spoon (B) should be rotated to horizontal position, and raised well above patient's apparent height. 2. Patient may now step onto scale platform. Spoon (B) should be held horizontal and above patient's head.
-
Page 10: Part Identification
PART IDENTIFICATION Indicator Alternate Mounting Configuration 1930-M458-O1 Waist-High 685X Series... - Page 11 PART IDENTIFICATION, CONT. 1930-M458-O1 Waist-High 685X Series...
- Page 12 PART IDENTIFICATION, CONT. 1930-M458-O1 Waist-High 685X Series...
- Page 13 PART IDENTIFICATION, CONT. ITEM PART DESCRIPTION 6855 6856 NUMBER 1930-D330-0A WEIGHBRIDGE ASSY 1930-D445-OA WEIGHBRIDGE ASSY (6856) 1930-C338-08 MAT W/ADHESIVE 1930-C452-08 MAT W/ADHESIVE (6856) 6007-0034 HEX HEAD SCREW 5/16-18 UNC-2A X 3/4” 6024-0050 LOCK WASHER 5/16” 6013-0275 HEX NUT 5/16-18 UNC-2B 1930-C143-0A HANDRAIL ASSEMBLY 1930-C450-0A...
-
Page 14: Statement Of Limited Warranty
(1) year from date of shipment. Detecto shall be the sole judge of what constitutes a defect. - Page 15 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
- Page 16 1930-M458-O1 Waist-High 685X Series...
