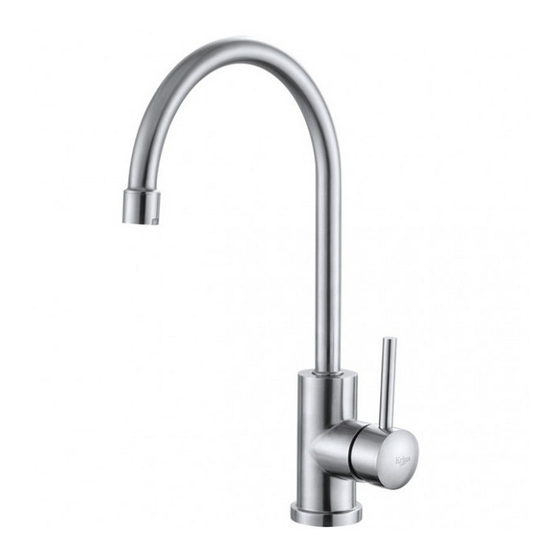

- Page 5 I N S TA L L AT I O N MA N UA L Single Handle Kitchen Faucet KPF-2160 www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. August 16, 2016...
- Page 6 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
- Page 7 Make sure you have all necessary parts by checking the diagram and parts 10 1/8” 8 5/16” (257mm) (21mm) list. If any part is missing or damaged, please contact Kraus Customer 1 15/16” Service at 800-775-0703 for a replacement ∅ 50mm) 1 3/8”...
-

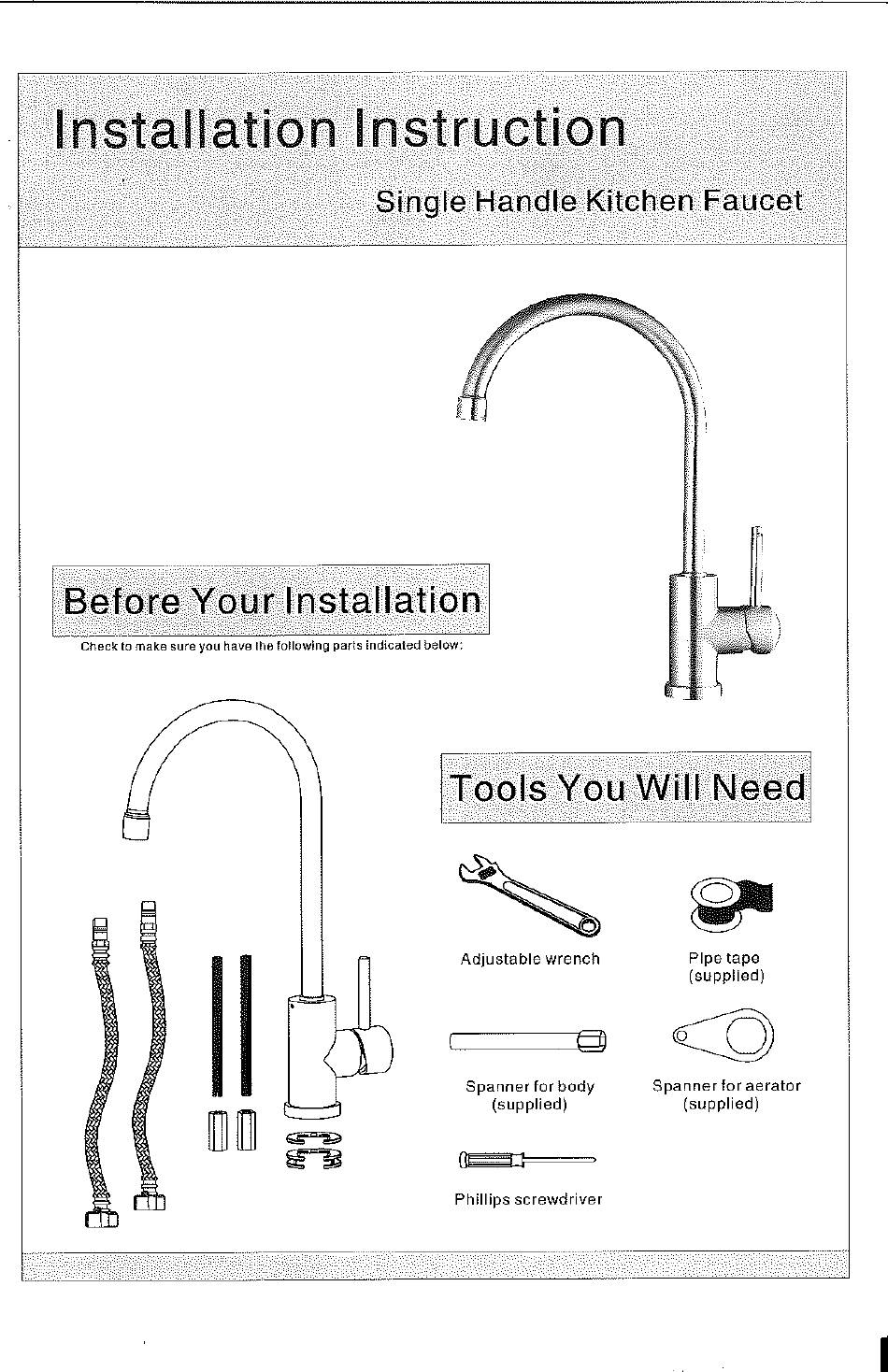

Page 8: Your Installation
Diagram and Parts List e Your Installation Tools You Will Need A. Aerator Assembly E. Metal U –Washer A1 Aerator Cover F. Mounting Screws A2 Aerator G. Mounting Nuts A3 Washer H. Spacer (Optional) For B. Faucet Body Topmount Stainless Steel Sinks C. - Page 9 Faucet Dimensions (3/4”) Ø19mm (7-5/8”) 195mm (1-5/8”) Ø 42mm (2-1/4”) Ø 53.5mm...
- Page 10 Step 1: Remove mounting hardware Attach mounting screws (F) at base of faucet (B). Secure with flathead screwdriver. Attach waterlines (I). Hand tighten only Step 2: Install faucet and mounting hardware Insert faucet body (B) on deck or sink with base o-ring (C) attached...
- Page 11 Step 3: Secure mounting hardware Attach rubber & metal u-washers (D&E) on mounting screws D&E Installer Tip: Spacer (J) is Optional used when installing on topmount stainless steel sinks Step 4: Connect waterlines Adjust faucet body (B). Tighten mounting nuts (G) with spanner (J)
- Page 12 Step 5: Flush spray hose Connect and tighten waterlines (I) to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON) Step 6: Check for leaks Remove aerator assembly (A) and turn faucet on for 60 seconds to flush any debris...
-
Page 13: Care And Maintenance
Do not clean with soaps, acid, polish, abrasives, or harsh cleaners Do not use cloth with a coarse surface Push Unscrew the aerator and clean when necessary Left Open Hot Water *This installation manual is subject to change without further notice. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance... - Page 14 Replacement Parts struction Aerator Assembly Lever le Handle Kitchen Faucet Set Screw Handle Cartridge Cover Locking Nut Cartridge Set Screw Base O-Ring 10. Rubber U-Washer 11. Metal U-Washer 12. Mounting Screws 13. Mounting Nuts 14. Spacer 15. Hot & Cold Waterlines 16.
-
Page 15: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under Locking nut (6) has Unscrew the lever (2) - Page 16 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 17 www.kraususa.com...
- Page 20 Please take a moment to share your experience. Visit http://www.kraususa.com/review to let us know what you think about your new Kraus product. Contact Us to Learn More 1.800.775.0703 / www.kraususa.com / customerservice@kraususa.com Like & Follow KrausUSA Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
- Page 21 I N S TA L L AT I O N MA N UA L Soap Dispensers KSD-30 KSD-33 KSD-35 KSD-41 KSD-42 SD-20 SD-25 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. August 16, 2016...
- Page 22 Thank you for your purchase We would like to take this opportunity to thank you for choosing Kraus. We hope that you are completely satisfied with your purchase, and enjoy it for years to come. If you have any questions, or require technical assistance, please contact us at 800.775.0703 and one of our representatives will be happy to help.
-
Page 23: Prior To Installation
Toll-Free: 800.775.0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. -
Page 24: Tools Required
GDA-1 Diagram and Parts List: a. Pump b. Dispenser Base c. Rubber Washer A d. Rubber Washer B e. Mounting Nut f. Dispenser Bottle TOOLS REQUIRED: *Adjustable Wrench... - Page 25 Step 1 Disassemble soap dispenser...
- Page 26 Step 2 Install dispenser base (b) with rubber washer A (c) attached into the hole in the countertop. Re-install rubber washer B (d) and mounting nut (e) on the dispenser base (b) from underneath the countertop. Tighten mounting nut (e) with adjustable wrench until snug...
- Page 27 Step 3 Screw the dispenser bottle (f ) to the dispenser base (b) from underneath the countertop. Tighten as required. Fill the dispenser bottle (f ) from the top with 12 ounces of soap...
- Page 28 Step 4 Insert pump (a) into dispenser base (b) from the top. Press the pump several times to make sure soap is evenly distributed Press...
- Page 29 Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 31 www.kraususa.com...
- Page 32 Please take a moment to share your experience. Visit http://www.kraususa.com/review to let us know what you think about your new Kraus product. Contact Us to Learn More 1.800.775.0703 / www.kraususa.com / customerservice@kraususa.com Like & Follow KrausUSA Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance www.kraususa.com...
