ZiLOG Z8 Encore! Quick Start Manual page 3

3. Slide the new plug configuration into the slot until it snaps into place.
4. Plug the power supply into an electrical outlet.
Serial Port
Smart
Cable
Hewlett Packard Power Cord Method
1. Attach a power cord (purchased separately) featuring an AC plug at one end and a
Hewlett Packard socket on the other end to the Hewlett Packard power cord
receptacle at the plug end of the power supply.
2. Plug the power supply into an electrical outlet.
Installing the ZDS II Z8 Encore!
Perform the following steps to install the software tools:
1. Load the ZDS II CD into the CD-ROM drive of the host PC. The CD launches
DemoShield automatically and provides a menu to install the product and
QS002802-0703
Downloaded from Elcodis.com electronic components distributor
Evaluation
Board
P2
J1

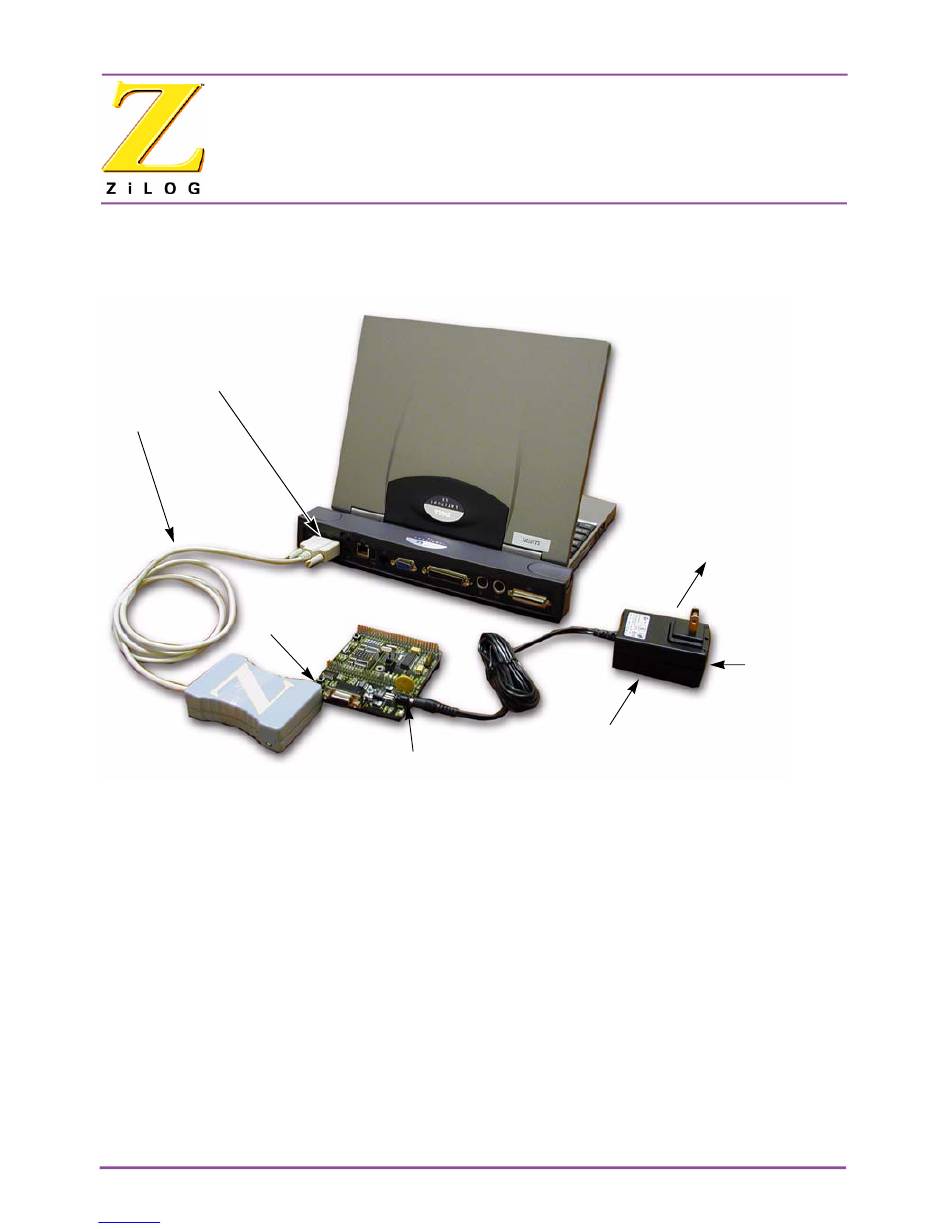

Figure 1. Evaluation Board External Connections
Z8 Encore!
Evaluation Kit Quick Start Guide
Host PC
Universal
Power Supply
®
Software
Installing the ZDS II Z8 Encore!" Software
®
Z8F642 MCU
Page 3
To Electrical
Outlet
HP Power
Cord
Receptacle
