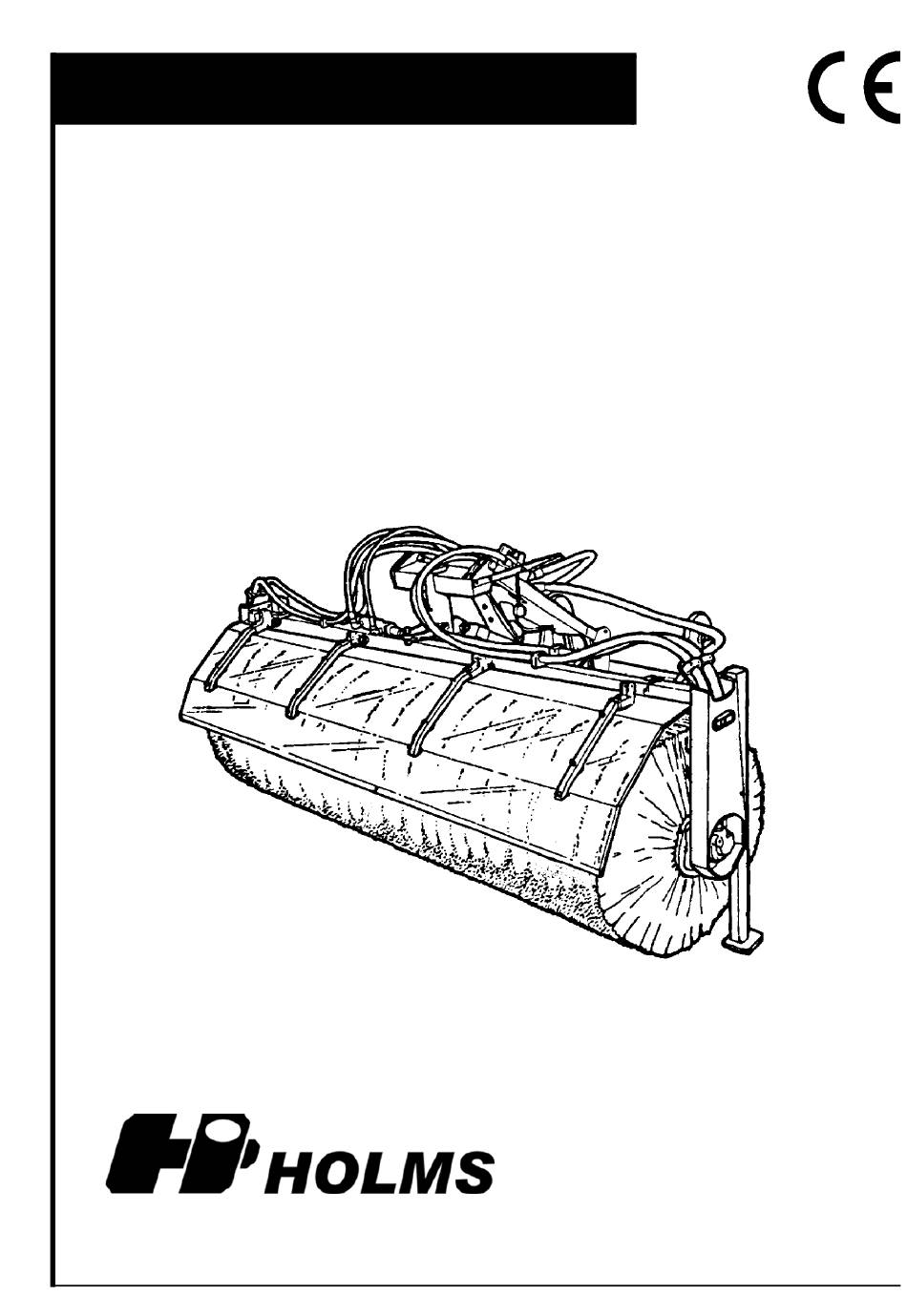

- Page 1 SPARE PART LIST SAHL-L Hydraulic broom for truck From serial No: 5159 Box 924 S-591 29 Motala Sweden • Tel + 46 141-22 41 00 • Fax + 46 141-22 41 90 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06...
-
Page 2: Table Of Contents
• Check that the carrier is appropriate to the attachment (hydraulic flow, stability etc.) When ordering spare parts or by other contacts with Holms or your local dealer, always inform about the attachment type and series No. This number you will find on the machine plate. -
Page 3: Product Facts
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06... -
Page 4: Generally About The Sweeper
(plastic). Do not make any modifications, changes, rebuilt work etc. which are not approved by Holms Industri AB. We also ask you to pay attention to spare parts not approved by us. © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06... -
Page 5: Operator Instruction
The sweepers ground pressure can be adjusted for different requirements. The adjustment is done by means of the rigging Picture 7. Rigging screw screw. Attention! Do not use the carrier lifting or tilting function for ground pressure setting. © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06... -
Page 6: Sweeping
3. Put down the sweeper to the ground and continue until the bracket loosen from the carrier. 4. Put the transport catch in transport position (picture 4). Picture 11. Supports in parking position 5. Loosen the quick couplings and the cable. © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06... -
Page 7: Maintenance
A couple of times a year, the bar tube bearing shall be greased. Clean the nipple and fill in until the grease pierces. Picture 13A. Rigging screw Picture 13B . Bar tube bearing © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06... -
Page 8: Change Of Brushes
5. Angle the sweeper roll from the bar tube and pull the roll out from the carrier housing on the other gable side. Picture 16. Bracket - hydraulic hoses Picture 17. Removing the bolts Picture 18. Removing gable side © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06... -
Page 9: Change Of Brushes
Attention! Put the brush element pin alternating in the two grooves in order to get a proper brush shape. 12. Fasten the other end ring with screws. Picture 22. Distance ring Picture 23. Location of the brush element pins © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06... -
Page 10: Mounting Of Sweeper Roll
5. Pull down the front brush protector and lock it with the locking pin. Picture 25. Mounting gable side Picture 26. Gable side bolts Picture 27. Bracket for hydraulic hoses Picture 28. Locking of brush protector © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 5/4/06...
