HOLMS SU Operator's Instruction

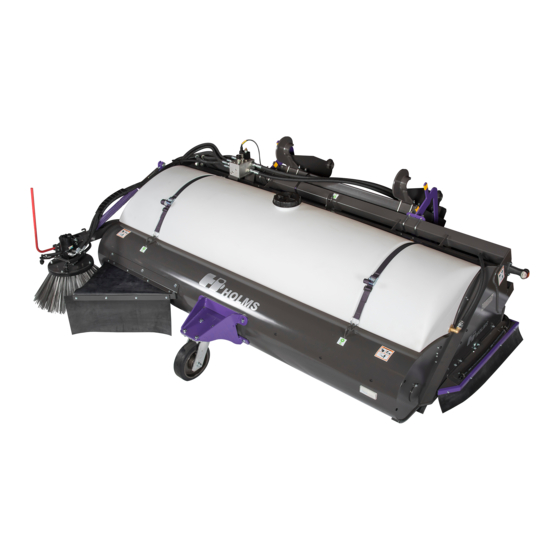

Pick-up sweeper 1,85/2,15m
Hide thumbs Also See for SU:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator instruction
SU
Pick-up sweeper
1,85/2,15m
From serial No: 226.
Box 924 S-591 29 Motala Sweden
+46 141-22 41 00
+46 141-22 41 90
Engelska
© HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HOLMS SU

Summary of Contents for HOLMS SU

  • Page 1 Operator instruction Pick-up sweeper 1,85/2,15m From serial No: 226. Box 924 S-591 29 Motala Sweden +46 141-22 41 00 +46 141-22 41 90 Engelska © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.

  • Page 2: Table Of Contents

    Important safety regulations .......8 Change of brushes ........8-10 Dismounting of sweeper roll ....8 Change of brushes ....9 Mounting of sweeper roll .....10 Other servicing ..........10 Mounting hydraulic hose .....10 Mounting of bearing .....10 © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.

  • Page 3: Foreword

    Do not make any modifications, changes, rebuilt work etc. which are not approved by Holms Industri AB. We also ask you to pay attention to spare parts not approved by us. © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.

  • Page 4: Product Facts

    Added weight with sidebrush (kg) Max oilflow (l/min) 30-80 30-80 Centre of gravity, A in sketch (empty, no sidebrush) (mm) Centre of gravity, B in sketch (empty, no sidebrush) (mm) 1. Centre of gravity © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.

  • Page 5: Generally

    This gives minimal brush wear and insensitiveness to unevenness, grooves, kerb stones etc. Holms SU is in standard design equipped with a 240 l. water tank and an electric driven water pump. The attachment hooks are attached by screws to the chassi which makes side shift possible, and it´s also easy to shift be-...

  • Page 6: Operator Instruction

    Lift up the machine, tilt it backwards and the waste comes out. See fig. 6. Rotate the broom in a low rpm. for a short time to make the broom free of waste. © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.

  • Page 7: Disconnecting From Carrier

    See fig. 7. Side brush (extra equipment) 8. Side brush Holms SU can be equipped with a side brush for even better result close to cerb stones etc. It can be mounted on the right or the left side. Driving Put down the sidebrush by removing the pin A (fig 8) lift off the brush from the hanging B remount the pin A.

  • Page 8: Maintenance

    3. Loosen the front attachment for the slewing bracket, both sides. Pos.D fig.10. Only the screws are loosend from the outside and the slewing bracket can remaine on the anchor plate, fig.11. © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.

  • Page 9: Change Of Brushes

    8. To get the whole core "dressed" double brushes without dis- tance ring at the end may be nessesary in order to receive agreement of length. 9. Fasten the end ring with the three strain springs. Fig. 11. © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.

  • Page 10: Mounting Of Sweeper Roll

    2. The hoses shall then follow the inside of the chassis. See Fig. 12. Mounting of bearings 12. Remounting of hose The machine's bearings are made of maintenance-free materi- al. However, they shall be lubricated in remounting. © HOLMS INDUSTRI AB, ALL RIGHTS RESERVED 060406.
