Setup for 2706-P9x-SC
Please follow these instructions to setup the P9x display.
PC
IP: 192.168.1.x
1

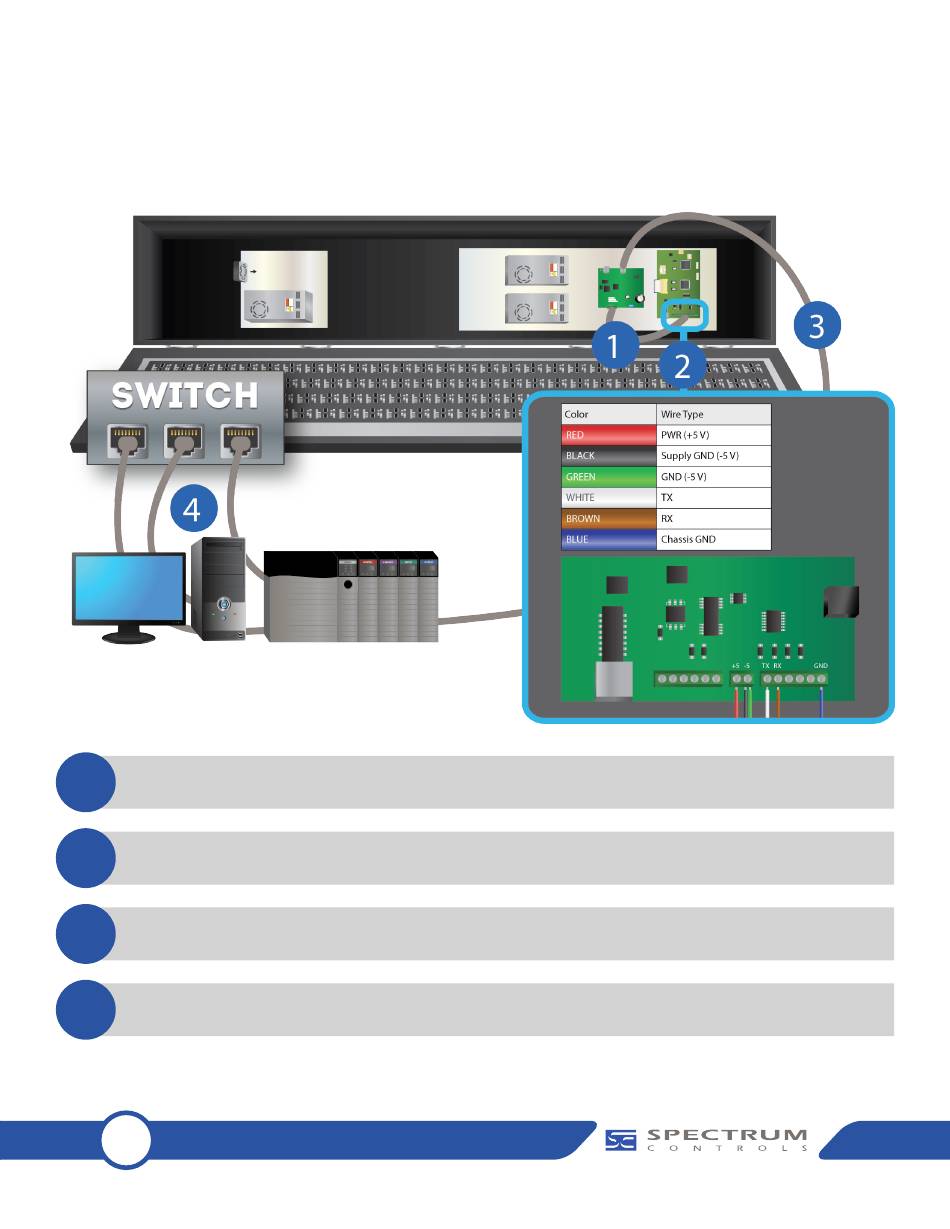

Connect the display to the communications module using supplied cable.
2
Wire the comms module as shown in the above wiring diagram.
3
With a CAT5 cable, connect the comms module to an unmanaged switch.
4
Connect the unmanaged switch to both your PC and PLC with a CAT5 cable.
IMPORTANT – PC & PLC must be in the 192.168.1.x subnet!
05
www.spectrumcontrols.com
Copyright ©2015 Spectrum Controls, Inc., all rights reserved. Part No. 0100249-04 Rev 9/2015
PLC
IP: 192.168.1.x
2706-PENETK2-SC
Eth1: 192.168.1.100
