Setup for 2706-P22R-SC

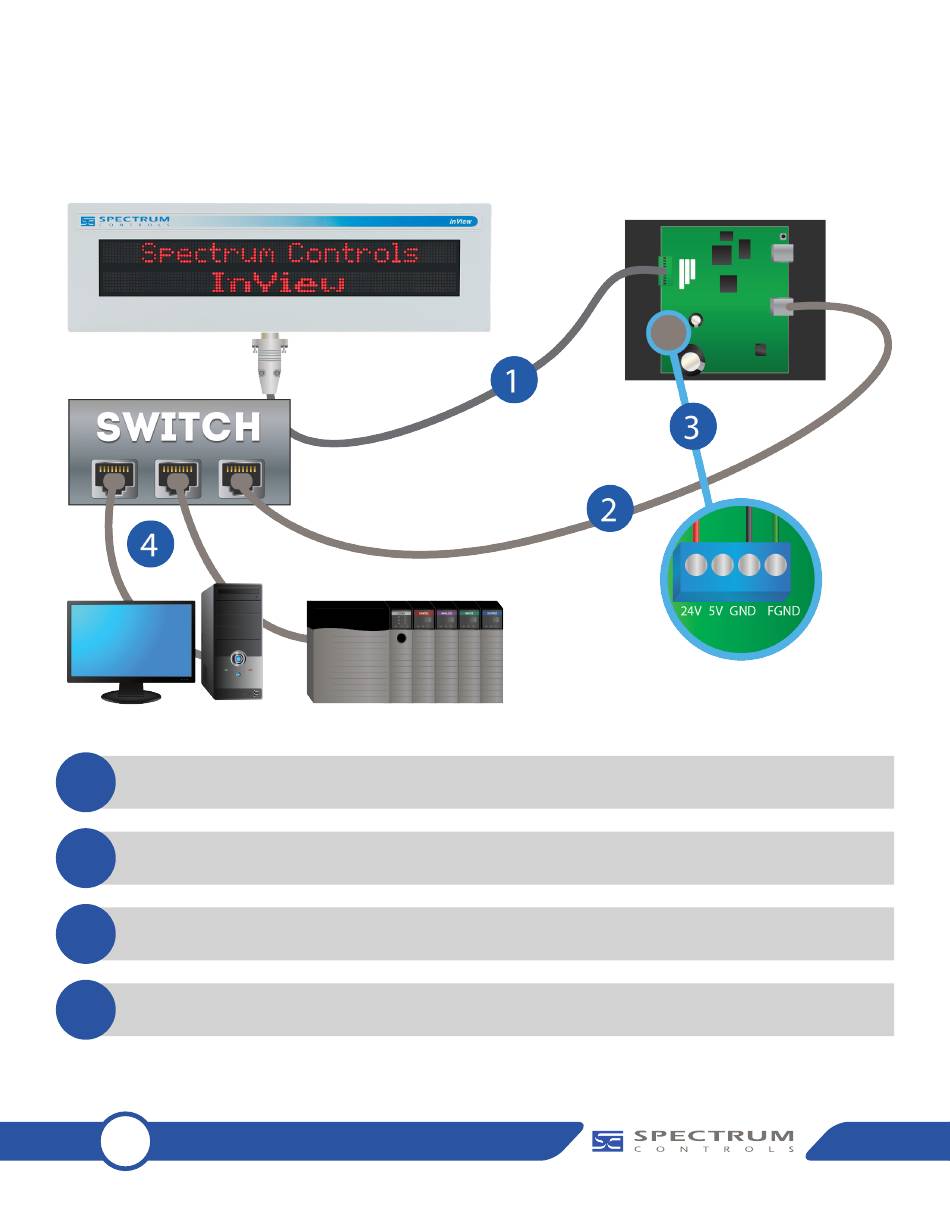

Please follow these instructions to setup the P22R display.
PC
IP: 192.168.1.x
1
Connect the display to the communications module using supplied cable.
2
With a CAT5 cable, connect the comms module to an unmanaged switch.
3
Connect 24 VDC to comms module.
4
Connect the unmanaged switch to both your PC and PLC with a CAT5 cable.
IMPORTANT – PC & PLC must be in the 192.168.1.x subnet!
02
www.spectrumcontrols.com
Copyright ©2015 Spectrum Controls, Inc., all rights reserved. Part No. 0100249-04 Rev 9/2015
DB9 connector
IP: 192.168.1.x
Copyright ©2015 Spectrum Controls, Inc., all rights reserved. Rev 2/2015
2706-PENETP2-SC
PLC
Eth1: 192.168.1.100
