KNX
Control 9 Client, Control 9 KNX
5 Information for electrically skilled persons
5.1 Fitting and electrical connection
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
Before working on the device, disconnect all the corresponding miniature
circuit breakers. Cover up live parts in the working environment.
Mounting and connecting the device
(31) KNX connection – only for Control 9 KNX
(32) Ethernet connection
(33) Mains connection
(34) Ventilation openings
(35) Connection for Audio input and output
(36) Connection for analogue video input
(37) USB-2.0 connections
i Recommendation: Install at eye-level, for optimal reading.
For wall-flush mounting: use a Control-9 installation housing.
For mounting in an installation housing for information terminals: use an adapter frame.
82576732

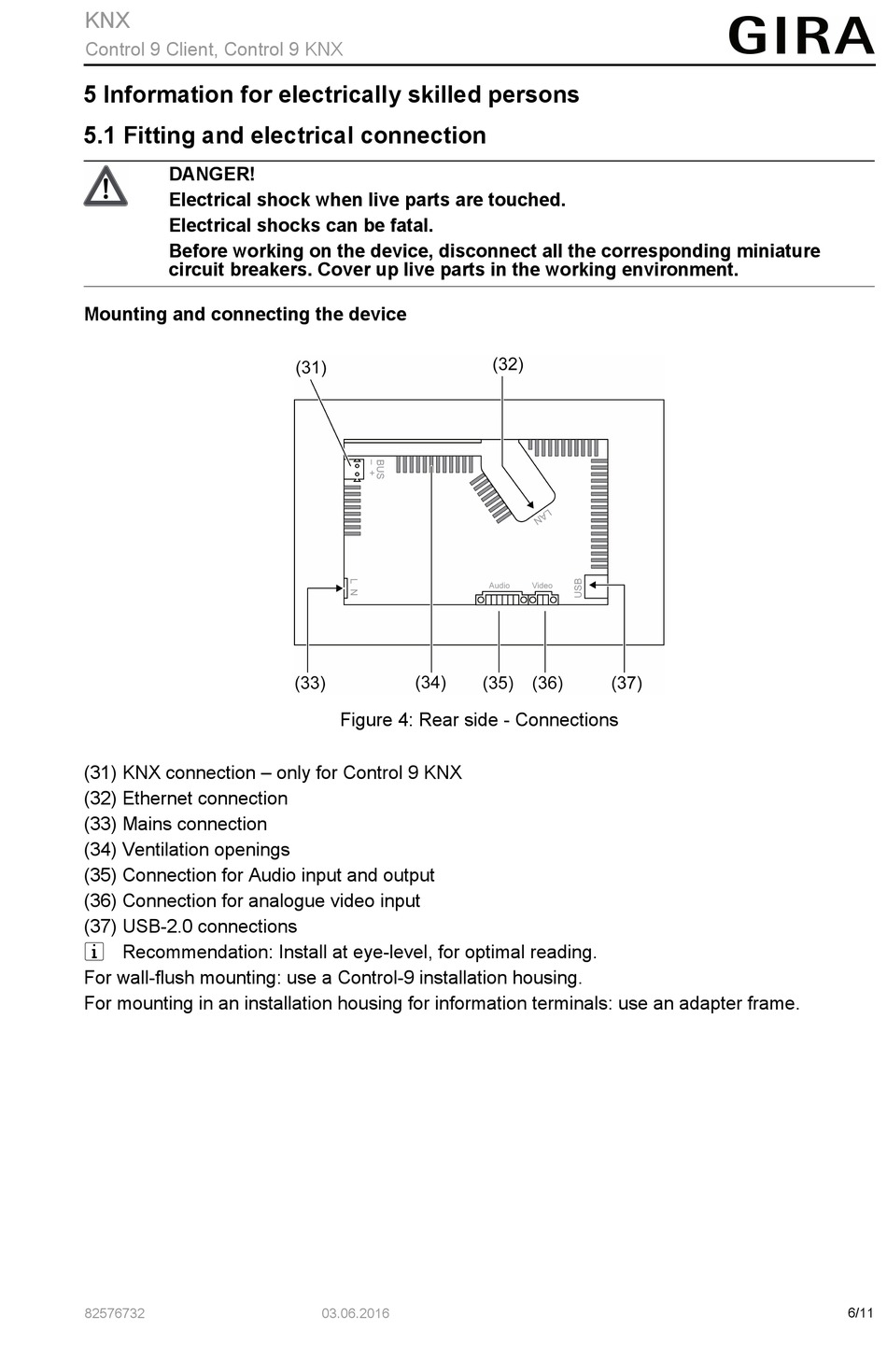

Figure 4: Rear side - Connections
