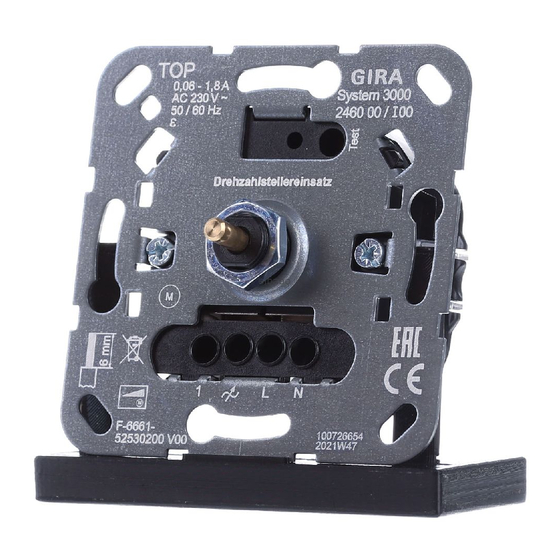

Speed regulator insert

Advertisement

Quick Links

System 3000
speed regulator insert
speed regulator insert
Order no.: 2460 00
Operating instructions
1

Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage. The load
is not electrically isolated from the mains even when the device is switched off.
These instructions are an integral part of the product, and must remain with the end customer.
2

Intended use

Speed controller for controlling the speed of single-phase motors e.g. induction or shaded
pole motors
Mounting in appliance box according to DIN 49073
Operation with suitable cover
3

Product characteristics

Product characteristics
Device is operating in leading edge phase control
Operation without neutral conductor possible
Switch-on via soft start to maximum speed
Minimum speed can be saved permanently
Connection of extensions possible
Electronic short-circuit protection with permanent switch-off after approx. 100 ms
Electronic over-temperature protection
4

Operation

Switching motor or adjusting speed
The operation on the main device and the 3-wire rotary extension is identical.
Press the control button briefly: Motor switches on or off.
Turn the control button to the right: Speed is increased.
Turn the control button to the left: Speed is reduced.
Basic operation using 2-wire extension with push-button top or push-button
Press briefly: Motor switches on or off.
Press and hold: The speed is changed as long as the button is pressed, at maximum up
to the respective end value.
Push-button: The adjustment direction is changed with each new long actuation.
82404702
01.04.2021
1 / 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the System 3000 2460 00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gira System 3000 2460 00

  • Page 1 System 3000 speed regulator insert speed regulator insert Order no.: 2460 00 Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock.
  • Page 2 System 3000 speed regulator insert Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Mortal danger of electric shock. Disconnect the device. Cover up live parts. Fitting and electrical connection = 1,8 A 16 A Figure 1: Connection diagram with optional extensions Button Test LED display Rotary axle...
  • Page 3 System 3000 speed regulator insert Figure 2: Clampable conductor cross-section ■ Connect the device according to the wiring diagram (Figure 1). Observe the clampable conductor cross-sections (Figure 2). ■ Install the device in the appliance box. The motor can be switched by briefly pressing the Test button (1). ■...
  • Page 4 The warranty is provided in accordance with statutory requirements via the specialist trade. Please submit or send faulty devices postage paid together with an error description to your re- sponsible salesperson (specialist trade/installation company/electrical specialist trade). They will forward the devices to the Gira Service Center. 82404702 01.04.2021...
  • Page 5 System 3000 speed regulator insert Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 82404702 01.04.2021 5 / 5...
