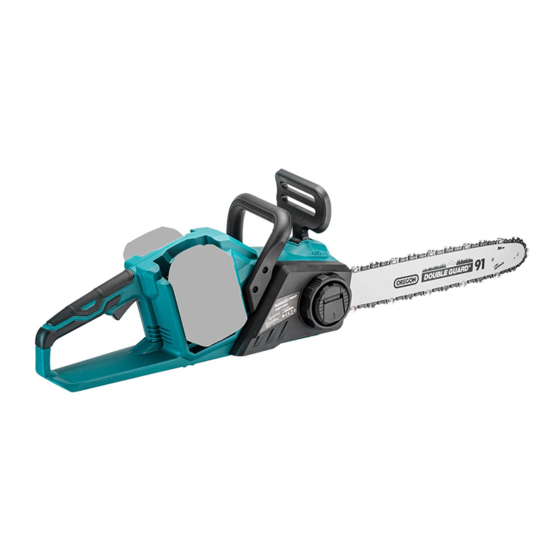

BorMann Pro BBP4500 Manual
Hide thumbs Also See for Pro BBP4500:

Advertisement

Available languages

Available languages

Quick Links

BBP4500
036432
en
v2.1
Art Nr:
el
WWW.BORMANNTOOLS.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro BBP4500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BorMann Pro BBP4500

  • Page 1 BBP4500 036432 v2.1 Art Nr: WWW.BORMANNTOOLS.COM...
  • Page 2: Technical Data

    DESCRIPTION OF MAIN PARTS / ΠΕΡΙΓΡΑΦΗ ΚΥΡΙΩΝ ΤΜΗΜΑΤΩΝ Technical Data * The manufacturer reserves the right to make minor changes to product design and technical specifications without prior notice Model BBP4500 unless these changes significantly affect the performance and safety of the products. The parts described / illustrated in the pages of the manual that you hold in your hands may also concern other models of the manufacturer's product line with similar features Rated voltage 40 Volt...
  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS WARNING ! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and /or serious personal injury. Work area safety 1. Keep work area clean and well lit. Cluttered or dark areas invite accidents. 2.
  • Page 4 4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
  • Page 5 9. Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain. 10.
  • Page 6: Functional Description

    11. Follow your local regulations relating to disposal of battery. 12. Use the batteries only with the appropriate BORMANN products. Installing the batteries to non-compliant products may result in a fire, excesssive heat, explosion, or leak of electrolyte.
  • Page 7 Tool / battery protection system The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life. The tool will automatically stop during operation if the tool or battery is placed under one of the following conditions: Overload protection : when the battery is operated in a manner that causes it to draw an abnormally high current, the tool automatically stops without any indication.
  • Page 8: Checking The Chain Brake

    Checking the chain brake 1.Press the lock-off lever, then pull the switch trigger, push the Hold the chain saw with both hands when switching it on. Hold the rear handle front hand guard backwards with your finger at the same time. with your right hand, the front handle with your left.
  • Page 9 3. Remove the sprocket cover then remove the saw chain and guide bar To install the saw chain, perform the following steps: from the chain saw body. 1. Make sure the direction of the chain. The arrow mark on the chain shows the direction of the chain.
  • Page 10: Adjusting Saw Chain Tension

    7. Turn the lever clockwise until the sprocket cover is secured then re- turn it to the original position 1. Lever Adjusting saw chain tension Carry out the procedure of installing or removing saw chain in a clean place free from sawdust and the like. Do not tighten the saw chain too much. Excessively high The saw chain may become loose after many hours of use.
  • Page 11: Operation

    OPERATION Lubrication Saw chain is automatically lubricated when the tool is in operation. Check the amount of remaining oil in the oil tank periodically through the trans- parent oil tank window. To refill the tank, lay the chain saw on its side, pull up the lever and turn anticlockwise to remove the oil tank cap.
  • Page 12: Maintenance

    If you cannot cut the timber right through with a single stroke: Apply light When you cut a wood under tension, cut the pressured side (A) first. Then pressure to the handle and continue sawing and draw the chain saw back make the final cut from the tensioned side (B).
  • Page 13: Periodic Maintenance

    5. Always fit a new locking ring when replacing the sprocket. 4. Replacing the sprocket: Before fitting a new saw chain, check the condition of the sprocket. Beware that a worn sprocket will damage a new saw chain. Have the sprocket re- placed in this case.
  • Page 14: Troubleshooting

    Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, seek help in an Authorized Service Centers, always using apropriate replacement parts for repairs (Bormann replacement parts).
  • Page 15 ΓΕΝΙΚΕΣ ΟΔΗΓΙΕΣ ΑΣΦΑΛΕΙΑΣ ΠΡΟΕΙΔΟΠΟΙΗΣΗ! ΔΙΑΒΑΣΤΕ ΚΑΙ ΚΑΤΑΝΟΗΣΤΕ ΟΛΕΣ ΤΙΣ ΟΔΗΓΙΕΣ. Εάν δεν ακολουθήσετε τις οδηγίες που αναφέρονται παρακάτω, μπορεί να προκληθεί ηλεκτροπληξία, πυρκαγιά ή/και σοβαρός τραυματισμός. Ασφάλεια στο χώρο εργασίας 1. Διατηρείτε το χώρο εργασίας καθαρό και καλά φωτισμένο. Οι ακατάστατοι ή σκοτεινοί χώροι προκαλούν ατυχήματα. 2.
  • Page 16 Xρήση και φροντίδα ηλεκτρικών εργαλείων 1. Μην χρησιμοποιείτε δύναμη στο ηλεκτρικό εργαλείο. Χρησιμοποιήστε το σωστό ηλεκτρικό εργαλείο για την εκάστοτε εφαρμογή. Το σωστό ηλεκτρικό εργαλείο θα κάνει τη δουλειά καλύτερα και ασφαλέστερα με τον ρυθμό για τον οποίο έχει σχεδιαστεί. 2.
  • Page 17 EIΔΙΚΕΣ ΠΡΟΕΙΔΟΠΟΙΗΣΕΙΣ ΑΣΦΑΛΕΙΑΣ ΑΛΥΣΟΠΡΙΟΝΟΥ ΜΠΑΤΑΡΙΑΣ 1. Κρατήστε όλα τα μέρη του σώματος μακριά από την αλυσίδα του πριονιού όταν το αλυσοπρίονο λειτουργεί. Πριν ξεκινήσετε να εργάζεστε με το αλυσοπρίονο, βεβαιωθείτε ότι η αλυσίδα του πριονιού δεν έρχεται σε επαφή με οτιδήποτε. Μια στιγμή απροσεξίας κατά το χειρισμό αλυσοπρίονων μπορεί να...
  • Page 18 11. Ακολουθήστε τους τοπικούς κανονισμούς σχετικά με την διάθεση/απόρριψη των μπαταριών. 12. Χρησιμοποιείτε μόνο τις αντίστοιχες για το συγκεκριμένο εργαλείο μπαταρίες BORMANN. Η τοποθέτηση μπαταριών σε μη συμβατά προϊόντα μπορεί να οδηγήσει σε πυρκαγιά, υπερθέρμανση, έκρηξη, ή και διαρροή ηλεκτρολύτη.
  • Page 19 ΠΡΟΣΟΧΗ: Χρησιμοποιείτε μόνο γνήσιες μπαταρίες BORMANN. Η χρήση μη γνησίων μπαταριών BORMANN ή μπαταριών που έχουν τροποποιηθεί μπορεί να οδηγήσει σε έκρηξη της μπαταρίας προκαλώντας πυρκαγιά, τραυματισμό και ζημιές. Θα ακυρώσει επίσης την εγγύηση για το εργαλείο και τον φορτιστή.
  • Page 20 'Ενδειξη στάθμης μπαταρίας 1. Λυχνίες ένδειξης 2. Κομβίου ελέγχου Πατήστε το κομβίο ελέγχου στην μπαταρία για να εμφανιστεί η τρέχουσα στάθμη της μπαταρίας. Λυχνίες ένδειξης Στάθμη ΟΝ ΠΡΑΣΙΝΟ ΠΟΡΤΟΚΑΛΙ 100% 75% έως ΚΟΚΚΙΝΟ 25% έως 50% ΠΟΡΤΟΚΑΛΙ ΚΟΚΚΙΝΟ 10% έως 25% ΚΟΚΚΙΝΟ...
  • Page 21 'Ελεγχος φρένου αλυσίδας 1. Πιέστε το μοχλό ασφάλισης, στη συνέχεια τραβήξτε τον ΠΡΟΣΟΧΗ: Κρατάτε το αλυσοπρίονο και με τα δύο χέρια όταν το ενεργοποιείτε. Κρατήστε διακόπτη-σκανδάλη, σπρώξτε ταυτόχρονα το μπροστινό την πίσω λαβή με το δεξί σας χέρι και την μπροστινή λαβή με το αριστερό σας χέρι. Η λάμα προστατευτικό...
  • Page 22 3. Αφαιρέστε το κάλυμμα του γραναζιού και, στη συνέχεια, αφαιρέστε Για να τοποθετήσετε την αλυσίδα, εκτελέστε τα ακόλουθα βήματα: την αλυσίδα και την λάμα από το σώμα του αλυσοπρίονου. 1. Βεβαιωθείτε ότι η κατεύθυνση της αλυσίδας είναι σωστή. Το σημάδι βέλους...
  • Page 23 7. Γυρίστε το μοχλό δεξιόστροφα μέχρι να ασφαλίσει το κάλυμμα του γραναζιού και, στη συνέχεια, επαναφέρετέ τον στην αρχική του θέση. 1. Mοχλός Ρύθμιση τάσης αλυσίδας ΠΡΟΣΟΧΗ: Πραγματοποιήστε τη διαδικασία τοποθέτησης ή αφαίρεσης της αλυσίδας αλυσοπρίονου σε καθαρό χώρο απαλλαγμένο από πριονίδια και παρόμοια. Μην τεντώνετε...
  • Page 24 Λειτουργία Λίπανση Η αλυσίδα λιπαίνεται αυτόματα όταν το εργαλείο βρίσκεται σε λειτουργία. Ελέγχετε περιοδικά την ποσότητα του εναπομείναντος λαδιού στο δοχείο λαδιού μέσω του διαφανούς παραθύρου του δοχείου λαδιού. Για να ξαναγεμίσετε το δοχείο, ξαπλώστε το αλυσοπρίονο στο πλάι, τραβήξτε το...
  • Page 25 Αν δεν μπορείτε να κόψετε το ξύλο με ένα μόνο χτύπημα: 'Οταν κόβετε ένα ξύλο υπό τάση (ήτοι τεντωμένο), κόβετε πρώτα την εφαρμόστε ελαφριά πίεση στη λαβή, συνεχίστε το πριόνισμα και πιεσμένη πλευρά. Στη συνέχεια, κάντε την τελική κοπή από την τραβήξτε...
  • Page 26: Περιοδική Συντήρηση

    5. Τοποθετείτε πάντα νέο δακτύλιο ασφάλισης όταν αντικαθιστάτε το 4. Αντικατάσταση γραναζιού γρανάζι. Πριν τοποθετήσετε μια νέα αλυσίδα στο αλυσοπρίονο, ελέγξτε την κατάσταση του γραναζιού (οδοντωτού τροχού). ΠΡΟΣΟΧΗ: ένα φθαρμένο γρανάζι θα καταστρέψει μια καινούρια αλυσίδα. Στην περίπτωση αυτή αντικαταστήστε το γρανάζι. 1.
  • Page 27 Επίλυση αναδυόμενων προβλημάτων Πριν εξετάσετε το ενδεχόμενο επισκευής, συνιστάται από πλευράς σας να κάνετε πρώτα έναν γενικό έλεγχο. Εάν διαπιστώσετε ύπαρξη τεχνικού προβλήματος το οποίο δεν εξηγείται στις οδηγίες χρήσης, μην επιχειρήσετε να αποσυναρμολογήσετε το εργαλείο. Αντ' αυτού, ζητήστε βοήθεια σε ένα Εξουσιοδοτημένο Κέντρο...
