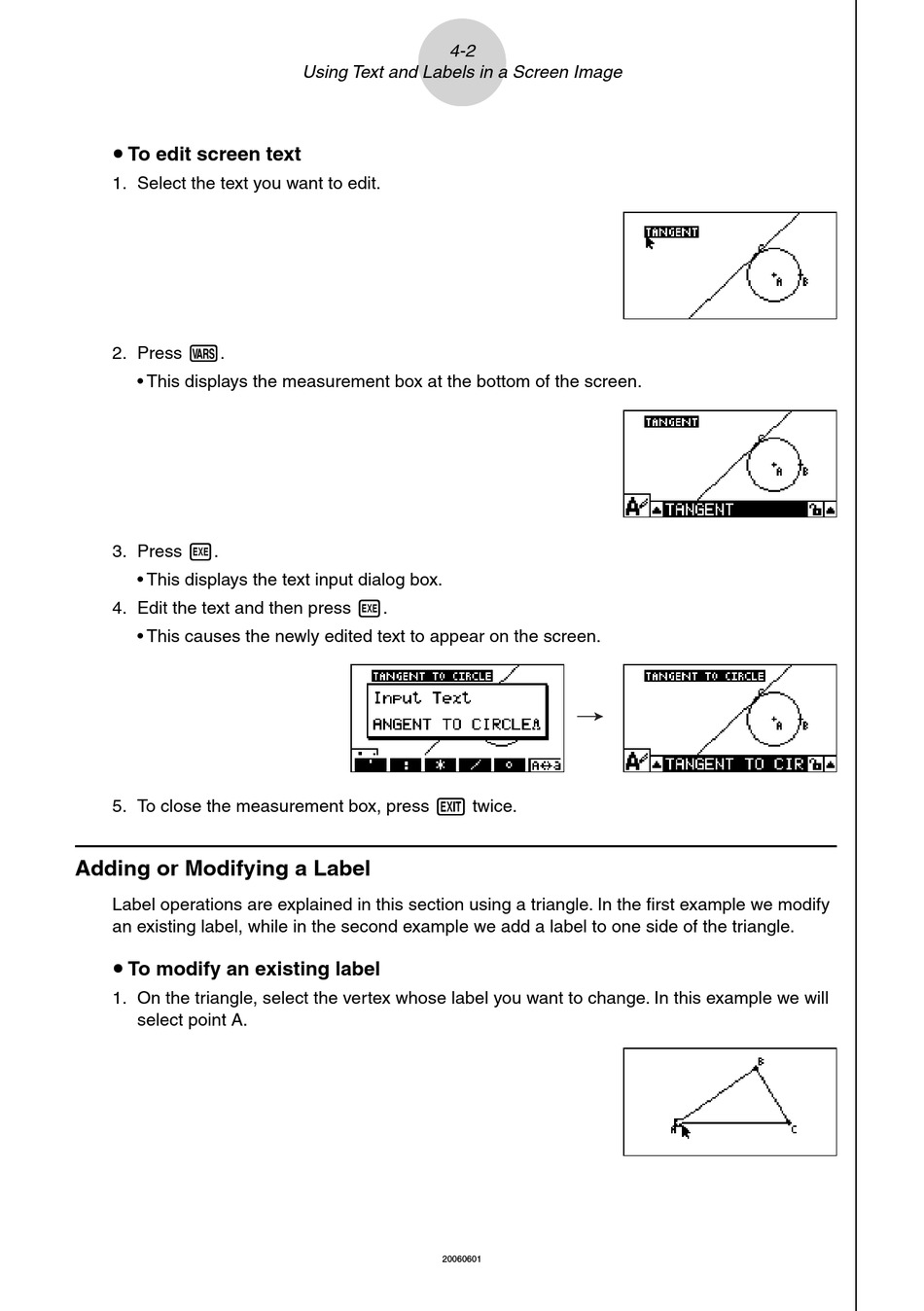

Casio Geometry User Manual page 39

u To edit screen text
1. Select the text you want to edit.
2. Press J.
• This displays the measurement box at the bottom of the screen.
3. Press w.
• This displays the text input dialog box.
4. Edit the text and then press w.
• This causes the newly edited text to appear on the screen.
5. To close the measurement box, press J twice.
Adding or Modifying a Label
Label operations are explained in this section using a triangle. In the fi rst example we modify
an existing label, while in the second example we add a label to one side of the triangle.
u To modify an existing label
1. On the triangle, select the vertex whose label you want to change. In this example we will
select point A.
4-2
Using Text and Labels in a Screen Image
20060601
/ /
