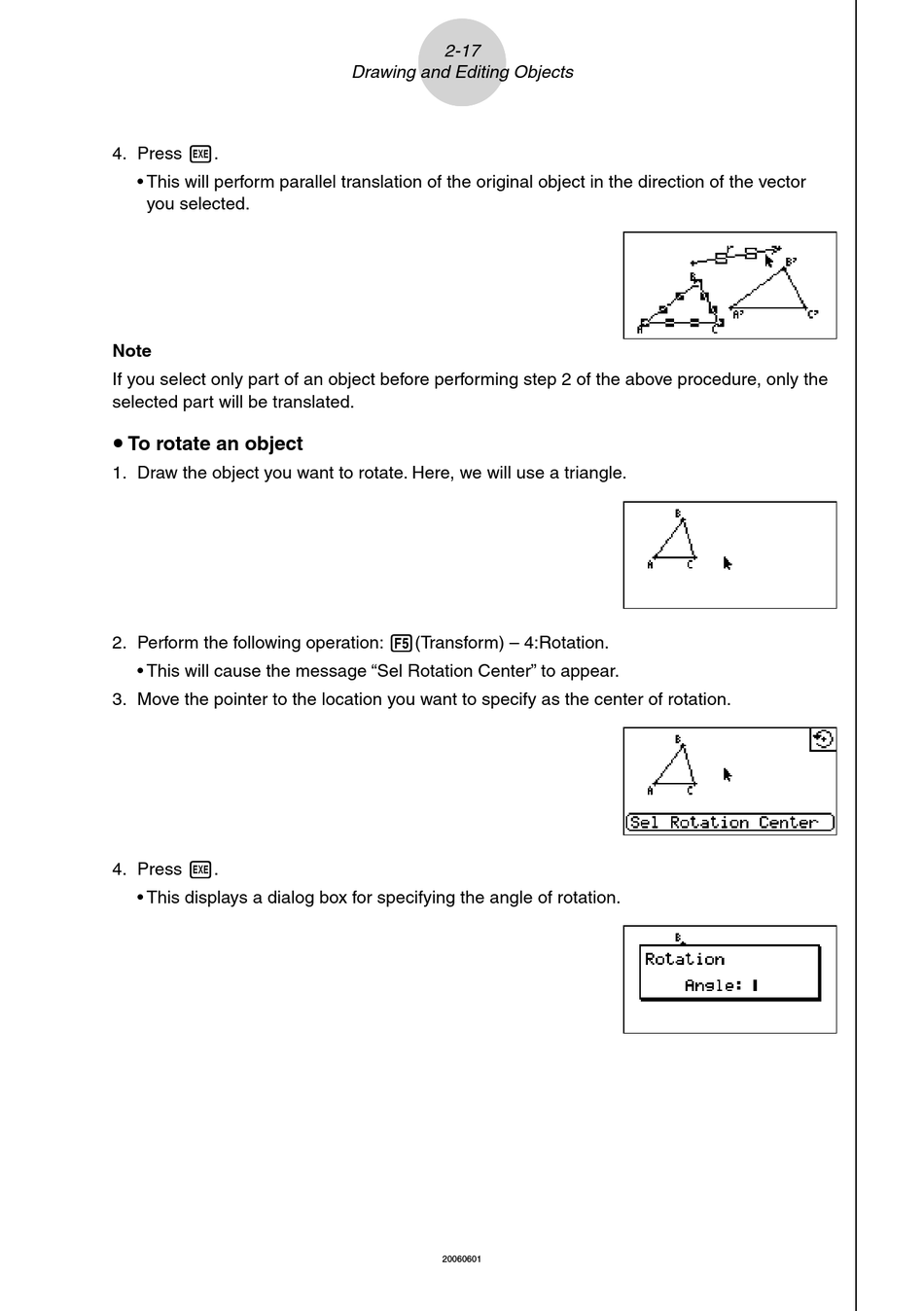

Casio Geometry User Manual page 27

4. Press w.
• This will perform parallel translation of the original object in the direction of the vector
you selected.
Note
If you select only part of an object before performing step 2 of the above procedure, only the
selected part will be translated.
u To rotate an object
1. Draw the object you want to rotate. Here, we will use a triangle.
2. Perform the following operation: 5(Transform) – 4:Rotation.
• This will cause the message "Sel Rotation Center" to appear.
3. Move the pointer to the location you want to specify as the center of rotation.
4. Press w.
• This displays a dialog box for specifying the angle of rotation.
2-17
Drawing and Editing Objects
20060601
