- Page 1 Shenzhen Linshang Technology Co.,Ltd. Gloss Meter User Manual V3.1 Please read the manual carefully before you use. 1-4-2019 Page 1 of 16...

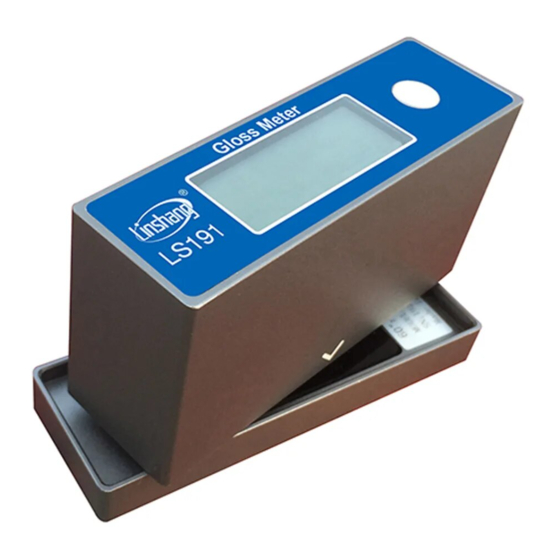

- Page 2 Shenzhen Linshang Technology Co.,Ltd. Instruction for use Thank you for choosing and using LS191/LS192 gloss meter. In order to better use the product, please read the manual carefully before you use. The "gloss meter" mentioned herein refers to specular gloss meter.
-
Page 3: Table Of Contents
Shenzhen Linshang Technology Co.,Ltd. Table of Contents I: About the meter ................. 4 II: Structure ................... 6 III: Technical parameters ..............6 IV: Operation ..................7 1．Powering on ........................7 2．Auto Calibration ........................9 3．Measurement ........................12 4．Powering off ........................13 V: Maintenance .................. -
Page 4: I: About The Meter
Shenzhen Linshang Technology Co.,Ltd. I: About the meter LS191/LS192 accords with the following standards: ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807 All indexes of the meter meet the requirements of JJG 696-2002 Verification Regulation of 《 Specular Gloss Meters and Gloss Plates 》for class one working meters. - Page 5 Built in rechargeable lithium battery, with Ultra low power consumption LS191/LS192 is widely used for: Gloss measurement of materials and products in the fields of paint coatings, decorative materials, building materials, plastic...
-
Page 6: Ii: Structure
Shenzhen Linshang Technology Co.,Ltd. II: Structure III: Technical parameters Technical Unit LS191 gloss meter LS192 gloss meter parameters Angle Degree Measuring Area 9*15 9*15 Measurement 0-200 0-1000 range Resolution 0-100: ±0.2 0-100: ±0.2 Repeatability 100-200: ±0.2% 100-1000: ±0.2% 0-100: ±0.5 0-100: ±0.5... -
Page 7: Iv: Operation
Shenzhen Linshang Technology Co.,Ltd. Lithium rechargeable Lithium rechargeable Power supply battery battery Meter size 104(L) * 35(W) * 60(H) 104(L) * 35(W) * 60(H) Meter weight IV: Operation 1．Powering on Under the status of powering off, press the button of "Power" to power on the meter. - Page 8 Shenzhen Linshang Technology Co.,Ltd. Autodiagnosis interface. The meter must be power on in the “Calibration Holder”, running autodiagnosis to timely find out the system errors, improper operation and environmental changes. Once the autodiagnosis result is normal, the system will display "OK", with the meter entering into the auto calibration interface.
- Page 9 Shenzhen Linshang Technology Co.,Ltd. Then, the followings should be carried out: 1.If the standard is not clean, please clean the standard with special lens cloth, before placing the meter into the Calibration Holder. 2.If the meter is not clung to the Calibration Holder, please re-place into the Calibration Holder.
-
Page 10: 2．Auto Calibration
Shenzhen Linshang Technology Co.,Ltd. 2．Auto Calibration If the meter starts in the Calibration Holder, it will enter into calibration mode after autodiagnosis .If the autodiagonosis process is still unfinished,short press “Power” key and the meter will enter into auto calibration mode. - Page 11 Shenzhen Linshang Technology Co.,Ltd. again the meter into the Calibration Holder before calibrating. 3) The light source is permanently damaged. Please send the meter to the factory for maintenance. Special attention: 1) Use of an unclean standard will seriously influence the measuring accuracy.
-
Page 12: 3．Measurement
Shenzhen Linshang Technology Co.,Ltd. 3．Measurement Put the meter on the surface of the object. The meter will display the “Real Time value” directly. Short press "Power" and record the current measured value. Additional "1" will be automatically added to the measuring times, which will return to 1 after reaching the counting times，... -
Page 13: 4．Powering Off
Shenzhen Linshang Technology Co.,Ltd. 4．Powering off The meter can be powered off in the following two ways: In the power-on state, put the meter into the Calibration Holder. The meter will power off after the “Time” reach zero. The meter will automatically power off 3 minutes after the... -
Page 14: V: Maintenance
Shenzhen Linshang Technology Co.,Ltd. 2) Please save the Calibration Holder in a clean place after the meter is removed, so as to prevent the standard from contaminating. 3) The meter has temperature compensation function which allows calibration for a long period. Suggest to calibrate once for a week, and recalibrate if the environmental temperature is greatly changed. -
Page 15: Vi: Factory List
Shenzhen Linshang Technology Co.,Ltd. fine particles on the lens cloth to avoid damage of the standard. 3)Do not insert any object into the meter for cleaning, as it will damage the meter and influence the measuring accuracy. 4)If the meter is not used over half a year, Please charge the meter to avoid the battery is excessively discharged and damaged. -
Page 16: Vii: Service
Provide users with spare parts and lifelong maintenance services Provide the users with the meter inspection service for free Free technical support for long term Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: www.linshangtech.com Service hotline: 086-755-86263411 Email: sales21@linshangtech.com...
