3D LabPrint Piper J-3 Cub User Manual page 18

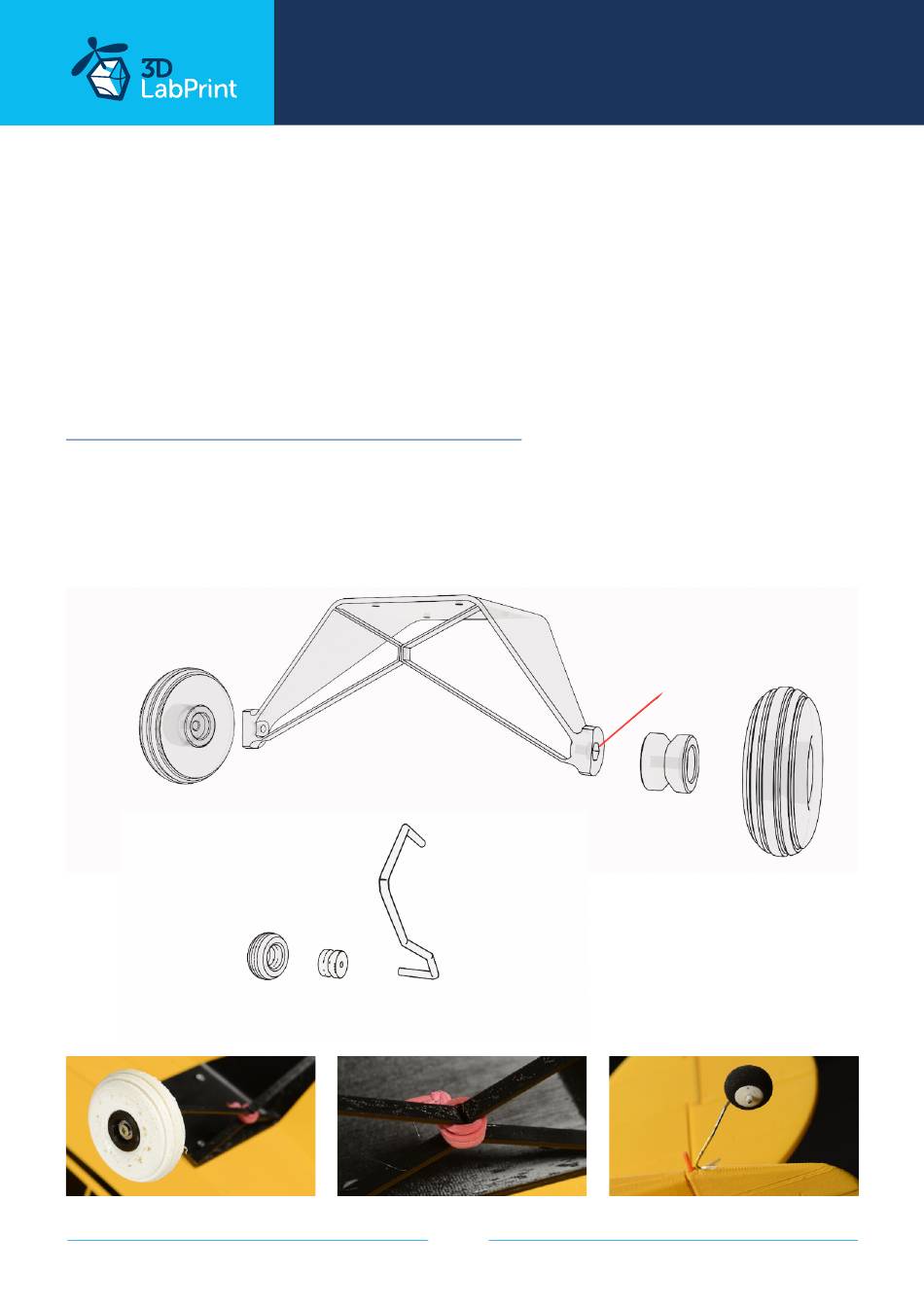

5.2.3 Landing gear assembly Piper J-3 Cub
Put gear tyres on the rims. Insert one nut into the printed chassis and use the other nut on
the wheel axle as a counter-nut. Adjust the tightening of the bolt and the counternut so that
the wheel turns freely. Tie the centre of the chassis legs together with an office rubber band.
Tie the center of the chassis legs together with an office rubber band. Use the remaining
1mm wire to shape the rear chassis to your taste. Secure the rear wheel against sliding out
with a small washer and cover with glue or crimp the small brass servo bushing with pliers.
Weave the entire rear wire into the rudder and bend towards the rear. Check the functionality
of the landing gear assembly carefully.
See video guide Piper J-3 Cub landing gear assembly
you will need: 2x M3 x 28-30mm screws for main wheel axle
4x M3 nuts + washers
Small piece of 1.5 mm steel wire for tail drag wheel axle
4x Self-tapping screw 3x10mm
office rubber band
tail wheel tyre
0,4g/0.01oz FLEX
... print your plane | www.3DLabPrint.com
main gear legs
23g/0.81oz PET
tail drag wheel axle
tail wheel disc
0,4g/0.01oz PLA
page
M4 nut inside
main gear disc (pair)
7,6g/0.27oz PLA
1,5 mm steel wire
18
gear tyre (pair)
11,6g/0.41oz FLEX
