Appendix B – Installing the SIM-Card
Please refer to Appendix A to get inside access to the device.
The SIM card reader is a lid-based type with a mechanical lock for the insertion of a mini-SIM card.
Open the hinged lid on the SIM card reader, orientate the card as shown below, and insert it into the
card reader's lid. Close the lid and slide the metal locking mechanism to the locked position, as shown
with an arrow and text on the lid until a click is heard.
To remove the card, slide the metal locking mechanism to the unlocked position as shown with an
arrow and test on the lid, and open the lid. The SIM card can now be removed.

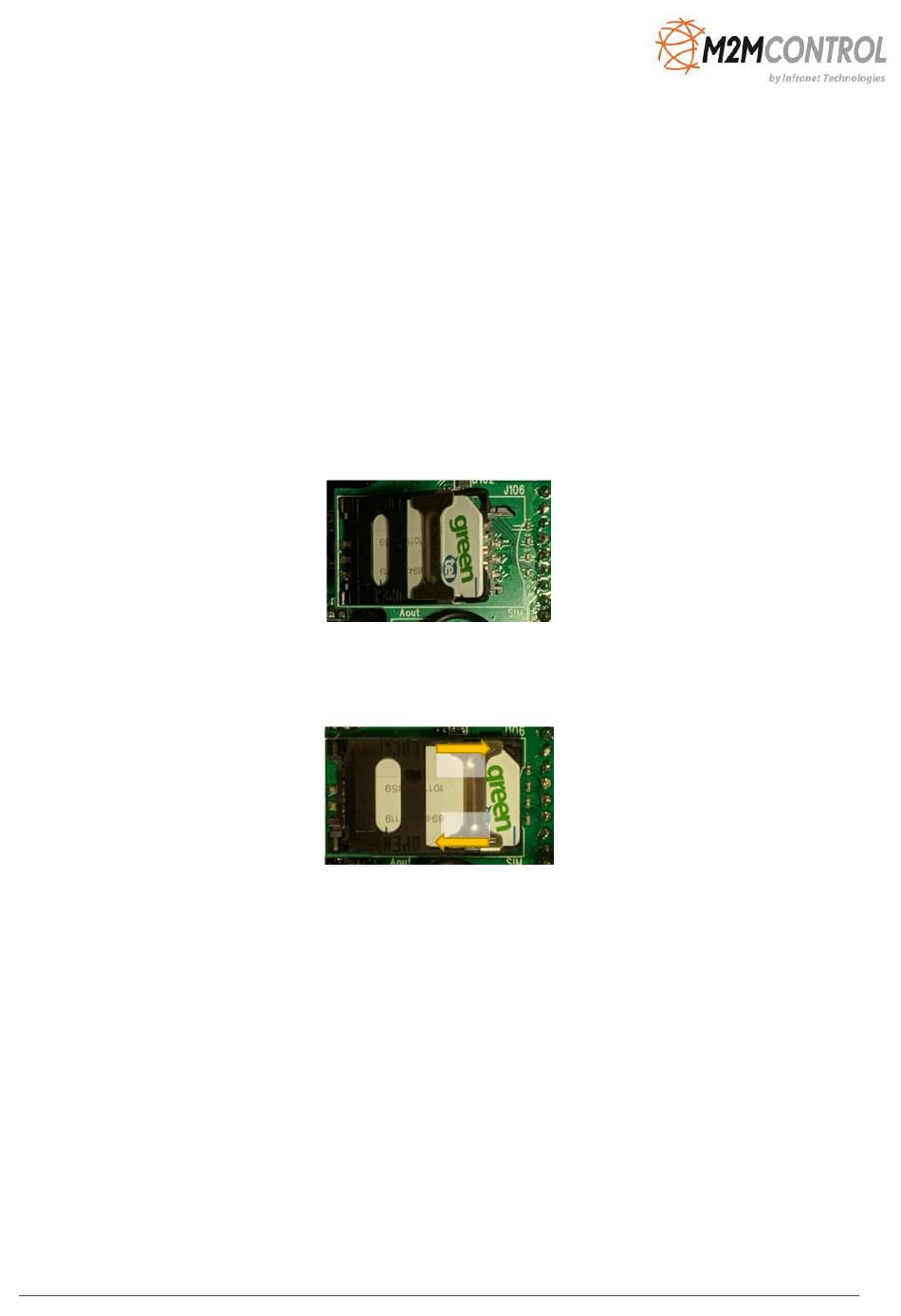

SIM card orientation
Close
Open
SIM card inserted and locked
