M2M Control CX320 Technical Manual V1.01

User interface

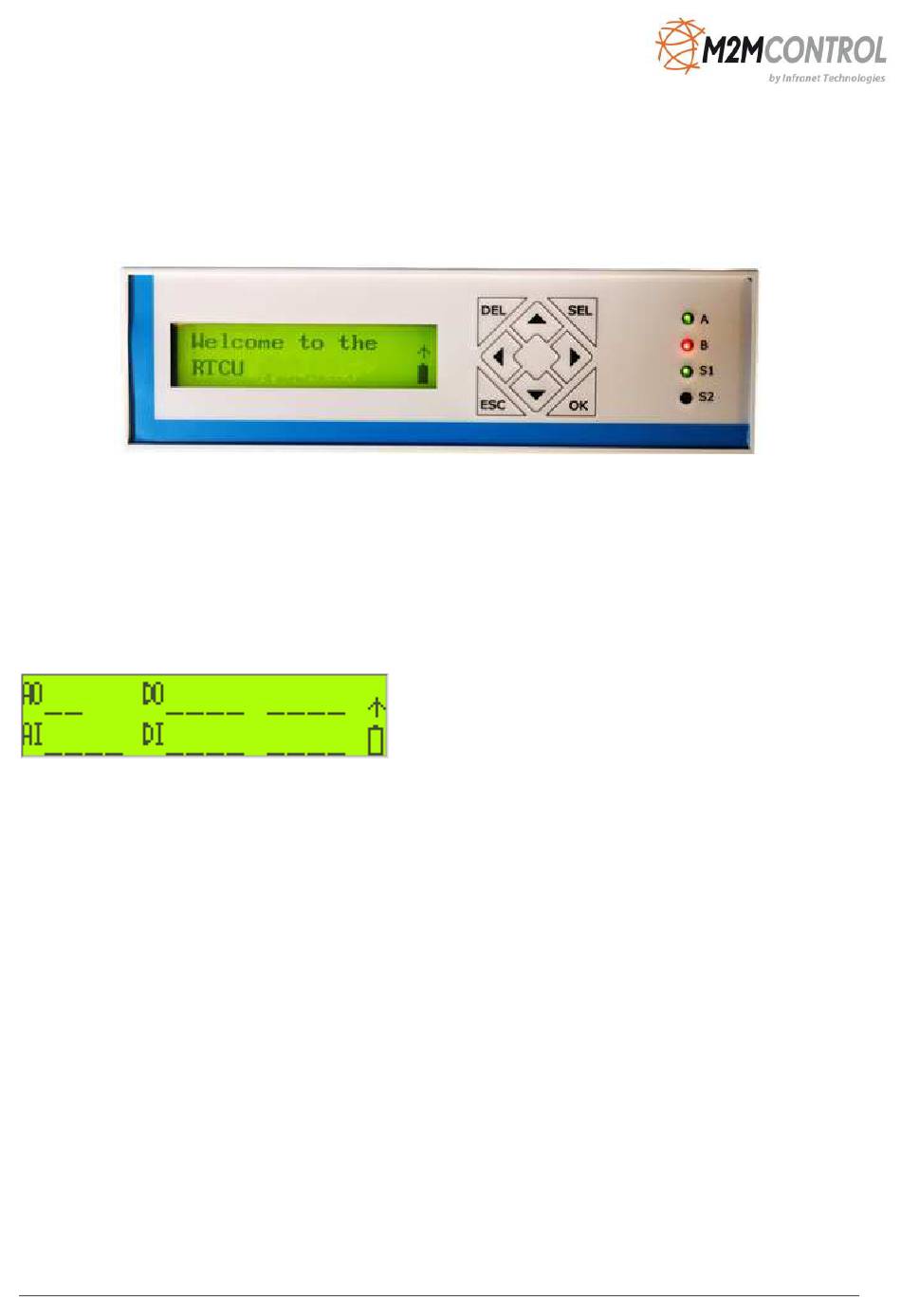

On the front of the M2M Control CX320 the user interface is found. This includes a 144x32 easy-to-
read graphical LCD, an incorporated keypad, three bi-colored LEDs, and one single color LED.

Graphical LCD display

The display mounted on the M2M Control CX320 is a 144x32 pixel graphical display. A range of
display functions is available for making graphical and alphanumerical presentations of the data, user
interaction with menus etc.
By default, the display is powered on at start-up and shows I/O status, battery level, and cellular
status as shown in the following picture:
The top half of the display shows the status of the 2 analog and the 8 digital outputs (in groups of 4),
the bottom half shows the status of the 4 analog and 8 digital inputs (in groups of 4).
Right-most 8x32 pixels are reserved for the battery level and the network status indication, while the
rest of the display is available to the user application.
Page 25 of 42
