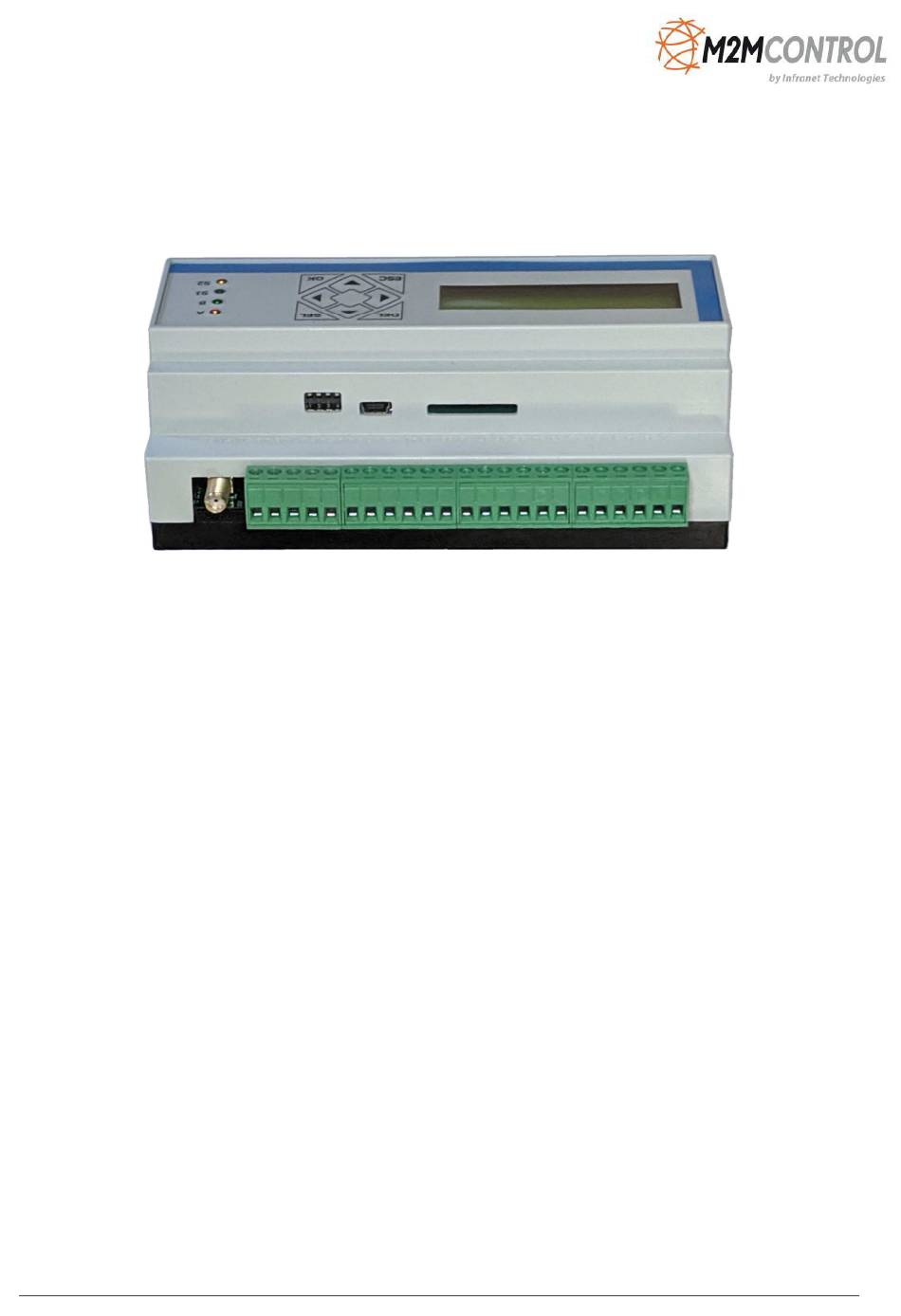

The top side of the M2M Control CX320 has connectors for power, digital inputs, digital outputs, and
an SMA female connector for an external cellular antenna.
The SD-card reader, four DIP switches, and the mini-B USB connector used as a programming/service
interface are also found on this side.
DIP 1-4
SD-Card
Mini USB-B
Cellular
Pin 49 . . . . . . . . . . . . . . . . Pin 27
Antenna
Inside the encapsulation, the SIM card and various configuration/termination jumpers are located.
Follow the instructions described in Appendix A.
