The network status and the battery level are indicated with different icons and level indicators.

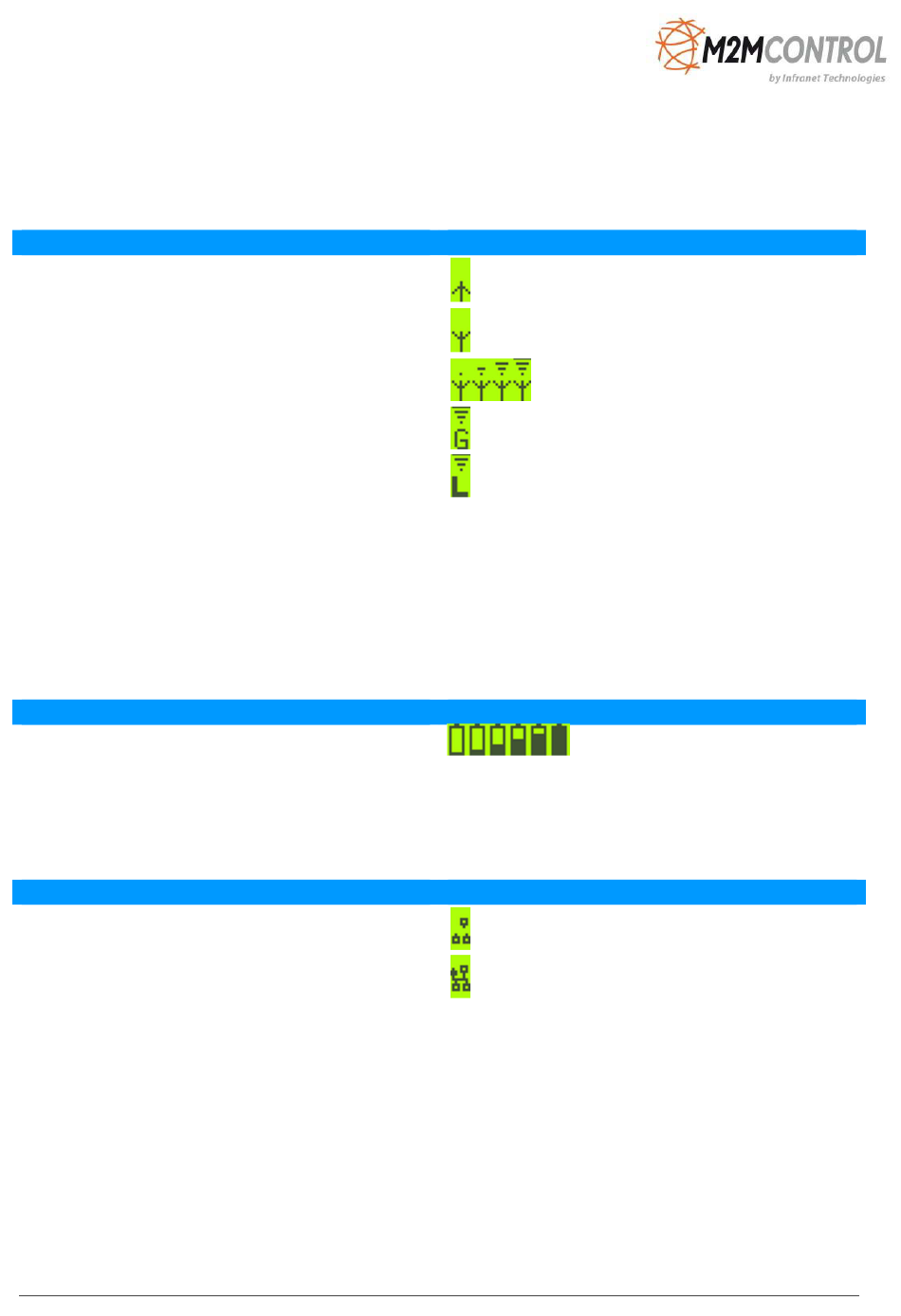

The following table describes the status of the cellular network:
Status
Cellular off
Cellular on
Cellular on and connected
Data connection over 2G or 3G
Data connection over LTE
The cellular signal level is indicated with 4 bars – also known from many mobile phones. One bar
means low signal strength, and four bars represent high signal strength. No signal strength bars
indicate that the cellular interface is powered up but is not connected to the network.
Similarly, the battery level is indicated with six levels: the fully charged battery icon means fully
charged, and the empty battery icon means low battery level. While charging the battery, the battery
icon is animated to show the charging progress.
Status
Battery level
If LAN is enabled, the upper icon will switch between cellular status and LAN status.
The following table describes the status of the LAN interface:
Status
Not connected
Connected
If the M2M Control Communication Hub (formerly: M2M Control GPRS Gateway) is enabled, the
lower icon will switch between the battery status and RCH status.
Icon
Icon
Icon
