Section 1: LightLEEDer EVO Integrated Panel Details
1.0 Enclosure
The enclosure is NEMA 1 rated and is provided with a screw cover door for surface mounting. All panels
are supplied with 4 pre‐drilled holes for easy mounting onto the wall. Enclosures come in one size of 10"
x 10" x 3" to accommodate 4 to 8 integrated relays. Enclosures are configured with both Class 2 and high
voltage sides for easy and separated routing of wires. Included is a high voltage barrier to separate Class
1 and Class 2 wiring.
1.1 Controller Board
The controller board provides the intelligence to control relays, monitor inputs, and to communicate in
various ways. The integrated components include:

Power supply used to convert the switcher supply 24 VAC into DC voltages used by the controller
and photocell.

Relay status LEDs driven by controller.

Four hardwired inputs with 24VDC for switches, occupancy sensor, or nurse call station. Accepts
momentary, momentary push button, or maintained switch types.

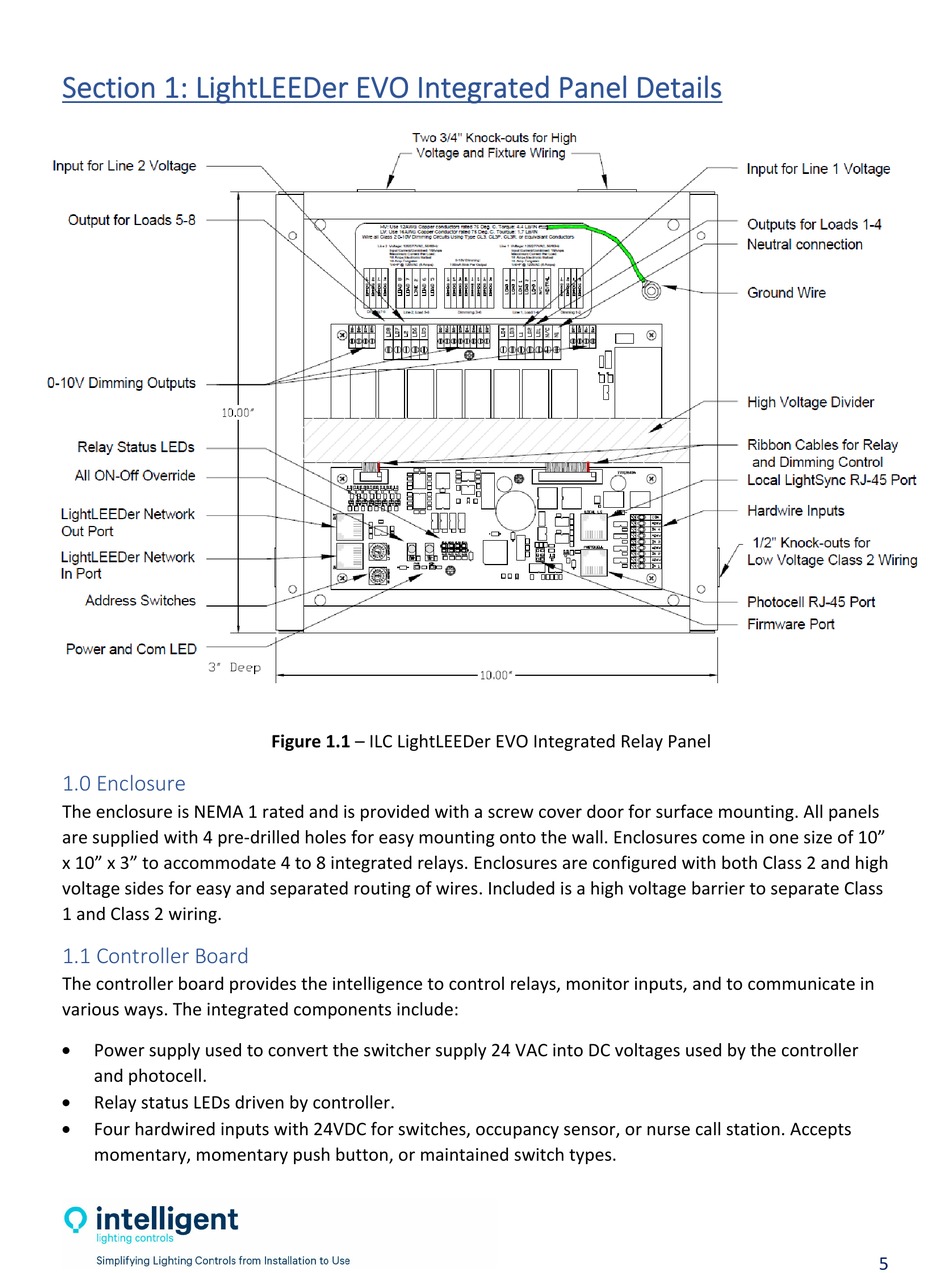

Figure 1.1 – ILC LightLEEDer EVO Integrated Relay Panel
