2.5.4 Set the Internal Clock
Clock settings must be set in the controller if the panel runs time schedules or turns on/off lights in
reference to sunrise/sunset. In the ILC LightLEEDer Software, connect to the panel with a diagnostic tool
on the network port. Once connected navigate to the virtual keypad on the "Connect" screen. From the
keypad/display push "Edit" and scroll down to the "Clock" menu. From this part of the menu, you can
set the time and date, set up the daylight‐saving time settings, set the astronomical parameters, and
view the current sunrise/sunset settings. See Section 3 for more details.
Section 3: Programming
3.0 Overview
The LightLEEDer Pro Single Panel & LightLEEDer Network Configuration Software are ILC priority
software packages designed for the ILC LightLEEDer series lighting control panels. The LL Pro Single
panel can be utilized on single panels, while the LL Pro Network Configuration Software requires an
Network Controller in the system.
Note: For programming information and software installation see LightLEEDer Pro Software Manual.
Section 4: Appendix
Appendix A: LightSync EVO‐4X/8X
In addition to the on‐board relays provided with the LightLEEDer EVO Integrated Relay Panel, additional
relays can be added with the LightSync EVO‐4X/8X Panel. The LSEVO‐X is available in 4 or 8 relay
configurations and expands any LightLEEDer controller to operate additional relays. Connect the "Local"
port of the LLEVO‐INT Controller to the "In" port of your first 4X/8X board, and the "Out" port to each
subsequent LightSync device. The LLEVO‐INT can operate up to 20 total relays, including the on‐board
relays. Refer to Figure 4.1 for LSEVO‐04X,8X address switch settings.

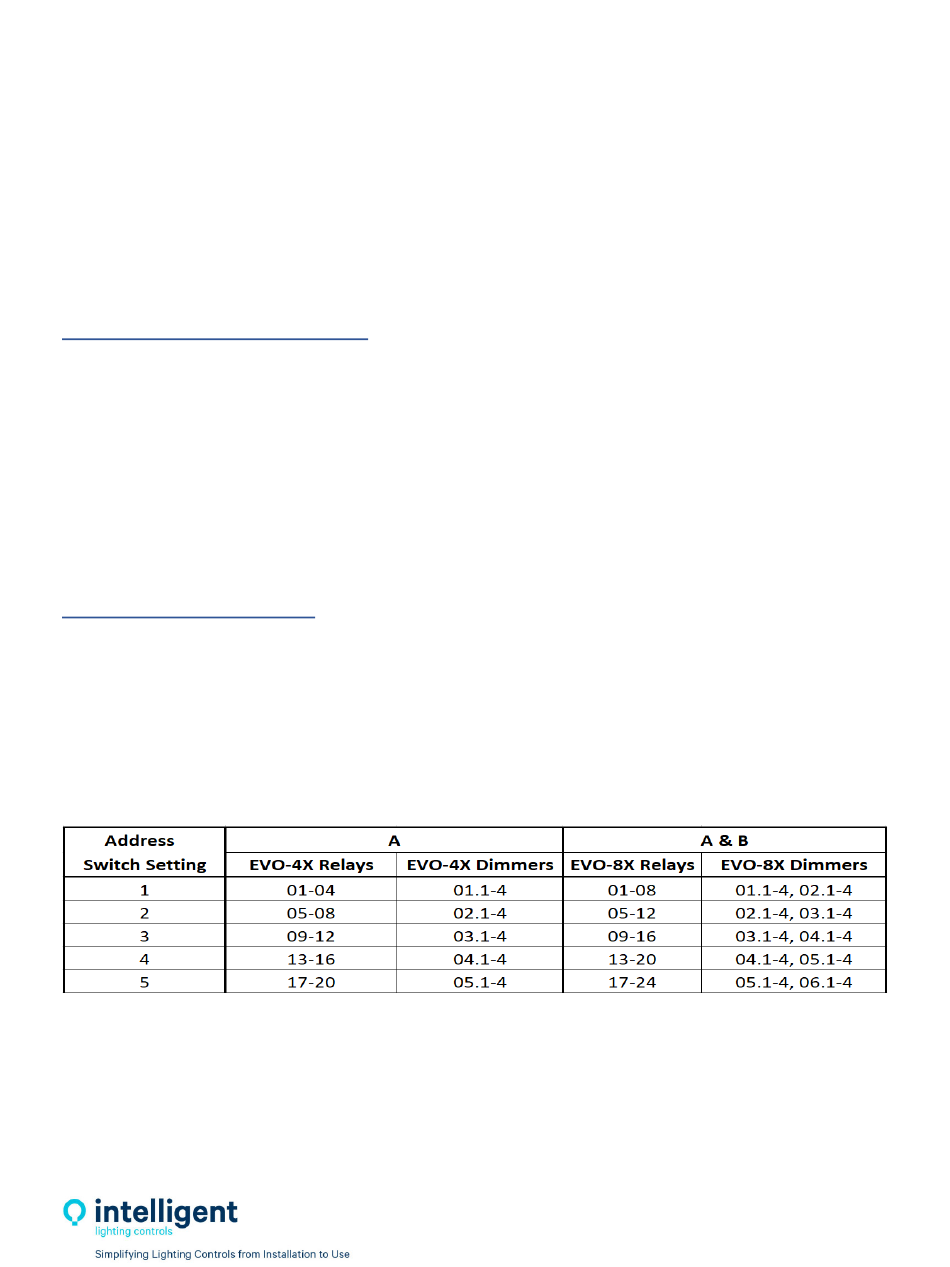

Figure 4.1 – LSEVO‐4X/8X Address Switch Settings
