2.3.5 Cable Termination and Testing
Data cables will be required to be terminated with the proper RJ45 crimp‐on connectors for the cable
being used. Follow the pin‐out shown in Figure 2.4. Be sure the color‐coded wires are terminated
exactly as shown. Always visually inspect for a completely seated crimp, as damage could occur to the
mating connector on the processor or device.

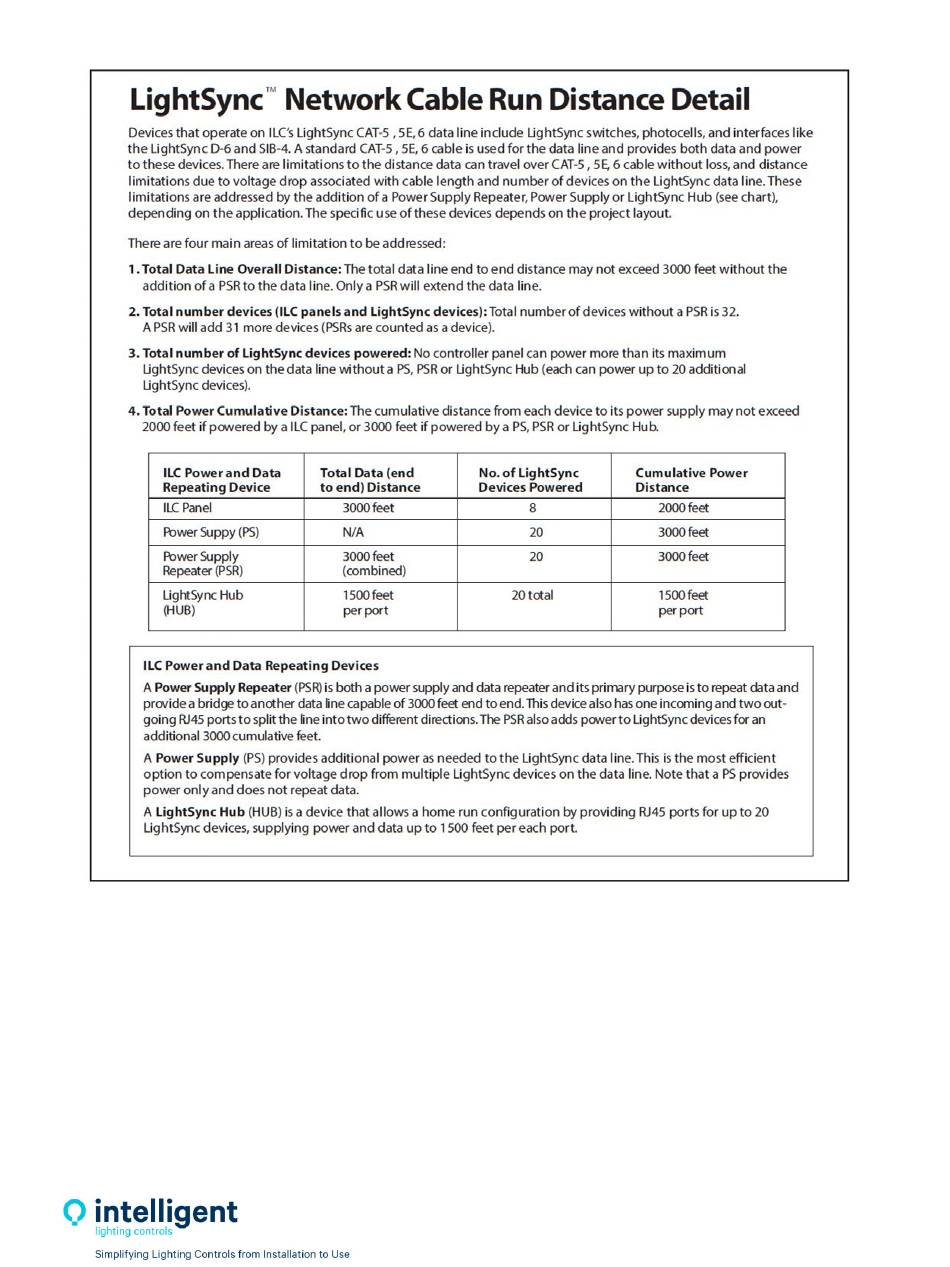

Figure 2.3 – Network Cable Run Distance Detail
