2.3 Network Cable Installation
2.3.1 Cable Installation Guidelines

Observe all ILC Data Cable Requirements and LightSync Cable Run Distance Requirements as they
pertain to your project in laying out the cable runs.

Maintain the twists of the pairs all the way to the point of termination, or no more than 1"
untwisted.

Make gradual bends of the cable, where necessary. No sharper than a 1" radius

Dress the cables neatly with cable ties. Use low to moderate pressure.

Use low to moderate force when pulling cable.

Use cable pulling lubricant for cable runs that may otherwise require great force to install.

Do not pull ANY data cable or switch wires with or along any high voltage wires.

Keep all low voltage totally separate from ALL high voltage. Failure to do so will void the ILC
warranty.

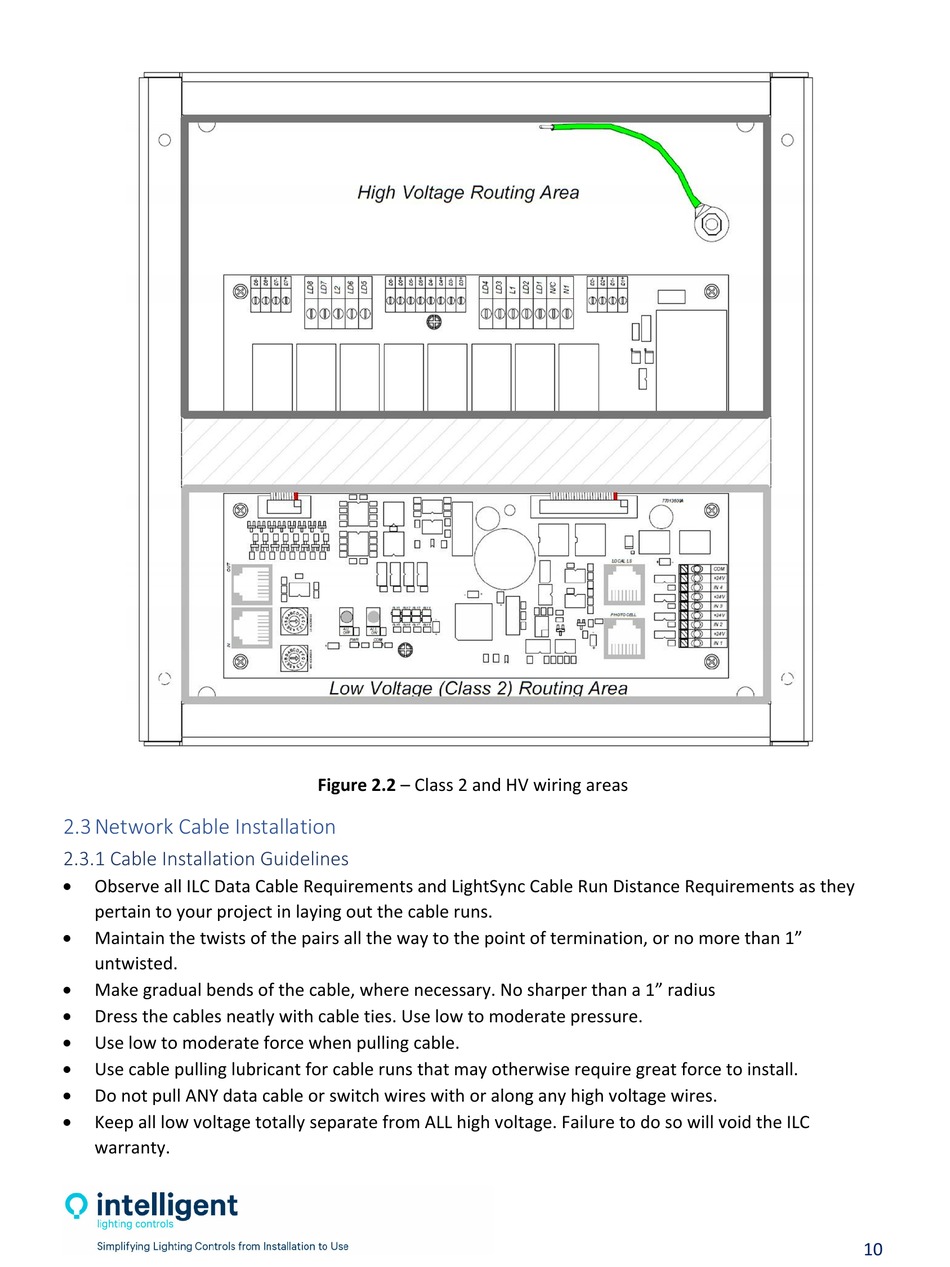

Figure 2.2 – Class 2 and HV wiring areas
