Test every cable prior to installation for shorts, opens, and inducted voltage. Be sure not to connect your
tester to a cable connected to any hardware as damage may occur.
2.3.6 Connect Cable
After cables are tested, they can be plugged into the panels and devices. Cables start at the "Out" port,
go to the next panel or device and enters the "In" port. This is continued until all devices are connected.
2.4 Pre‐Power‐Up Checklist
☐ Verify all ribbon cables between controller/output boards are well seated.
☐ Verify all high voltage wires are terminated and the high voltage barriers is installed.
☐ Verify all data cables, sensor wires, dimming wires, input wires are terminated properly.
2.5 Power‐Up and Check Out
2.5.1 Power‐Up
The controller will turn on once the Line 1 and Neutral wires are terminated and the circuit is energized.
The power LED located in the lower left should light up.
2.5.2 Verify Relay Operation
With the controller powered up press the "ALL ON" push button switch located on the lower left side of
the controller; all the relays should turn ON. Press the "ALL OFF" button and verify that all relays turned
OFF. The relays have an on‐board LED that indicates their state.
2.5.3 Clearing Memory
It is very critical to clear the memory in the controller prior to programming to eliminate any possible
unwanted mapping. In the ILC LightLEEDer Software, connect to the panel with a diagnostic tool on the
network port. Once connected navigate to the virtual keypad on the "Connect" screen. From the
keypad/display push "Edit", then scroll down to "Special Functions", then scroll down to "Firmware Re‐
vision", press both up and down scroll buttons simultaneously to enter a hidden menu, and then scroll
down to "Clear All Memory".

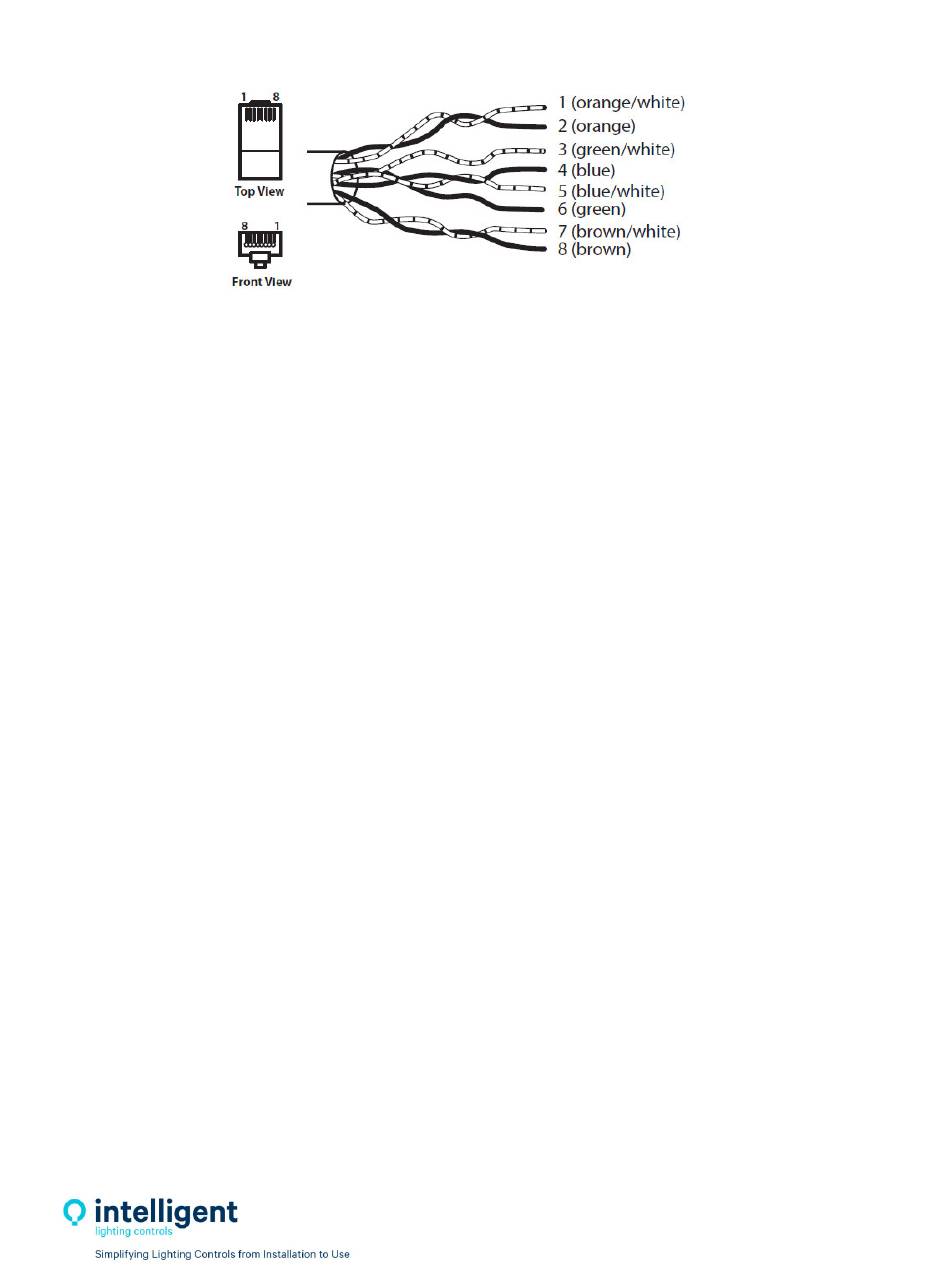

Figure 2.4 – RJ45 Cable Termination Detail
