Intelligent Lighting Controls LightLEEDer Operation Manual page 16

Appendix B: ILC Photo Sensor Head
The LightLEEDer EVO Integrated Relay Panel has a RJ45 port for connection to a single Photo Sensor
Head. Run a CAT‐5 cable from the Photocell port of the controller to the desired location of the photo
sensor. Terminate the CAT‐5 cable pairs as shown below in Figure 4.2.
Appendix C: Networked Relay Panels
LightLEEDer Network Controllers have the capability to control up to 255 LightLEEder panels including
the LightLEEDer EVO Integrated Relay Panel. The remote EVO‐INT panels are connected to the network
CAT‐5 "Out" port from the LLNC and addressed as one of the 255 LightLEEDer panels in the same
manner as all other LightLEEDer panels. All standard LightLEEDer networking operations are supported
with the LLEVO‐INT.

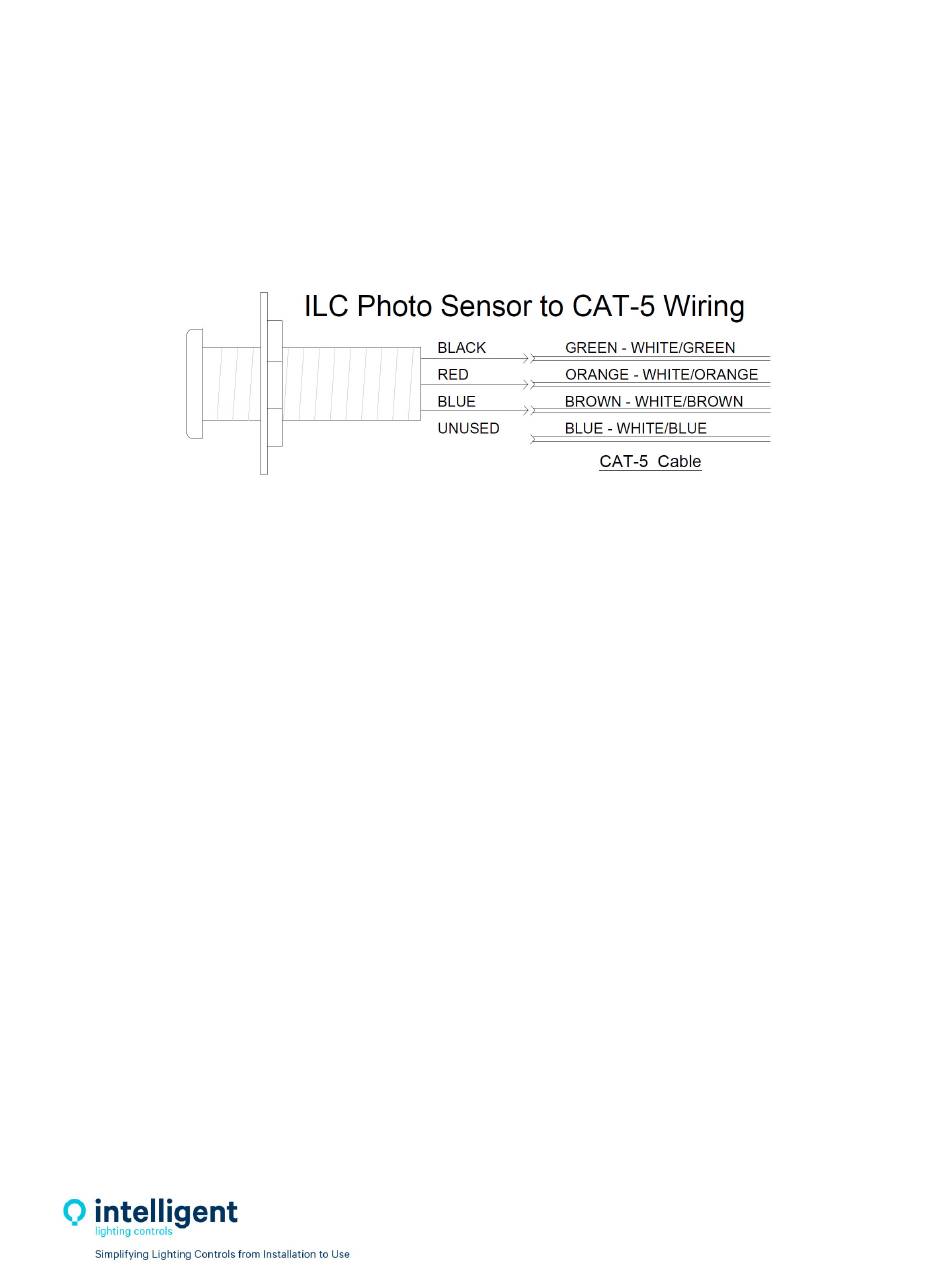

Figure 4.2 – ILC Photo Sensor Termination
15
