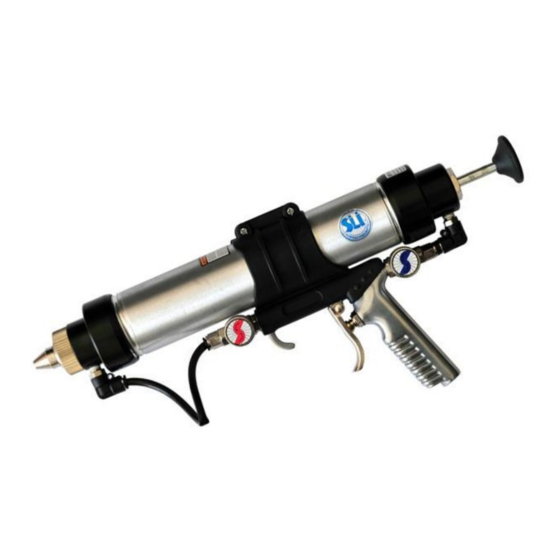

3 in 1 Air Sprayable Seam Sealer Gun
SPECYFICATION
Capacity Cartridge (mm)
Capacity Sachet (ml)
Overall Lenght (mm)
Air Consumption (cfm)
Air Pressure (psi)
Air Hose (inch)
Air Inlet (inch)
Net Weight (kgs)
& Caulking Gun (13")
ST-66413
500
300 - 600
486
6
60-90
1/4
1/4
1.3
PNEUMATIC
Vibration
Noise
ISO 8662-1
8N-1
Sound pressure
No-load:
level 65 dB
Sound power level
2.5 m/s
2
80 dB
TOOLS
Remark
Should wear an
approved ear -
protector and
gloves while
operating tool.
Advertisement
Related Manuals for Sumake ST-66413
Summary of Contents for Sumake ST-66413

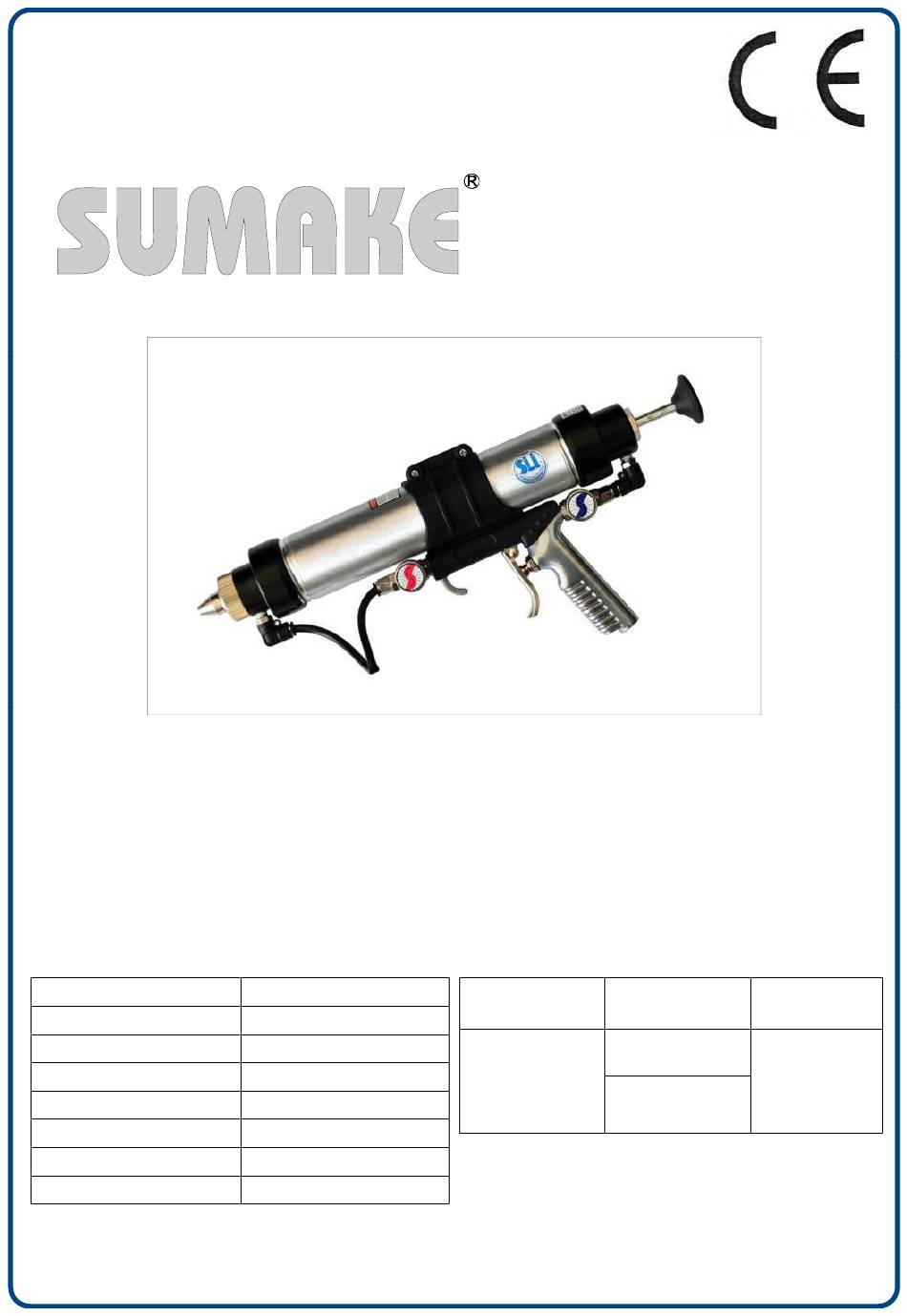

- Page 1 PNEUMATIC TOOLS 3 in 1 Air Sprayable Seam Sealer Gun & Caulking Gun (13”) ST-66413 SPECYFICATION Capacity Cartridge (mm) Vibration Noise Remark ISO 8662-1 8N-1 Capacity Sachet (ml) 300 - 600 Sound pressure Should wear an Overall Lenght (mm) No-load:...
-
Page 2: Ec Declaration Of Conformity For Machinery
EC DECLARATION OF CONFORMITY FOR MACHINERY SUMAKE INDUSTRIAL CO.,LTD. Manufacturer: Address: 4F,-NO. 351, YANGGUANG ST., NEIHU DISTRICT TAIPEI CITY 114, TAIWAN herewith declares ST-66413 that: 3 in 1 Air Sprayable Seam Sealer Gun & Caulking Gun (13”) - is in conformity with the provisions of the Machinery Directive (Directive 89/392/EEC,... - Page 3 Air Sprayable Seam Sealer Applicator Nozzle Purging A characteristic of the ir Sprayable Sealant and the Sprayable Seam Sealer Applicator Gun is that some sealant continues to flow out of the nozzle after the trigger is released. In order to control this flow of sealant, a purging method to remove the excess sealant in the nozzle was developed.
-
Page 4: Nozzle Cleaning
Nozzle Cleaning Immediately after each use, clean the glue, air and spraying nozzles. In preparation for spraying Air Sprayable Seam Sealer, always check three nozzles to ensure that cured sealant is not blocking the nozzle orifice or within the nozzle tip. Remove cured sealant blockage using a heavy gauge wire, e.g. - Page 5 How to use sprayable function and Cleaning How to assemble for cartridge 1.First to shift the spray head ass'y 2.Cutting the glue tube head 3.Then lock up the glue and spray 4.Put this full ass'y into pipe (if this head ass'y tool has push rod that will pull it back, if it is line type that will use rod to push piston to button)
-
Page 6: Part List
PART LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 66409-01 Handle 66409-20 Rod Puller 66409-02 Spring 66409-21 Lock Nut 66409-03 Throttle Valve 66409-22 Glue Nozzle 66409-04 O-Ring 66409-23 O-Ring 66409-05 O-Ring 66409-24 Spray Cover Connector 66409-06 O-Ring 66409-25 O-Ring 66409-07...
