SUMAKE

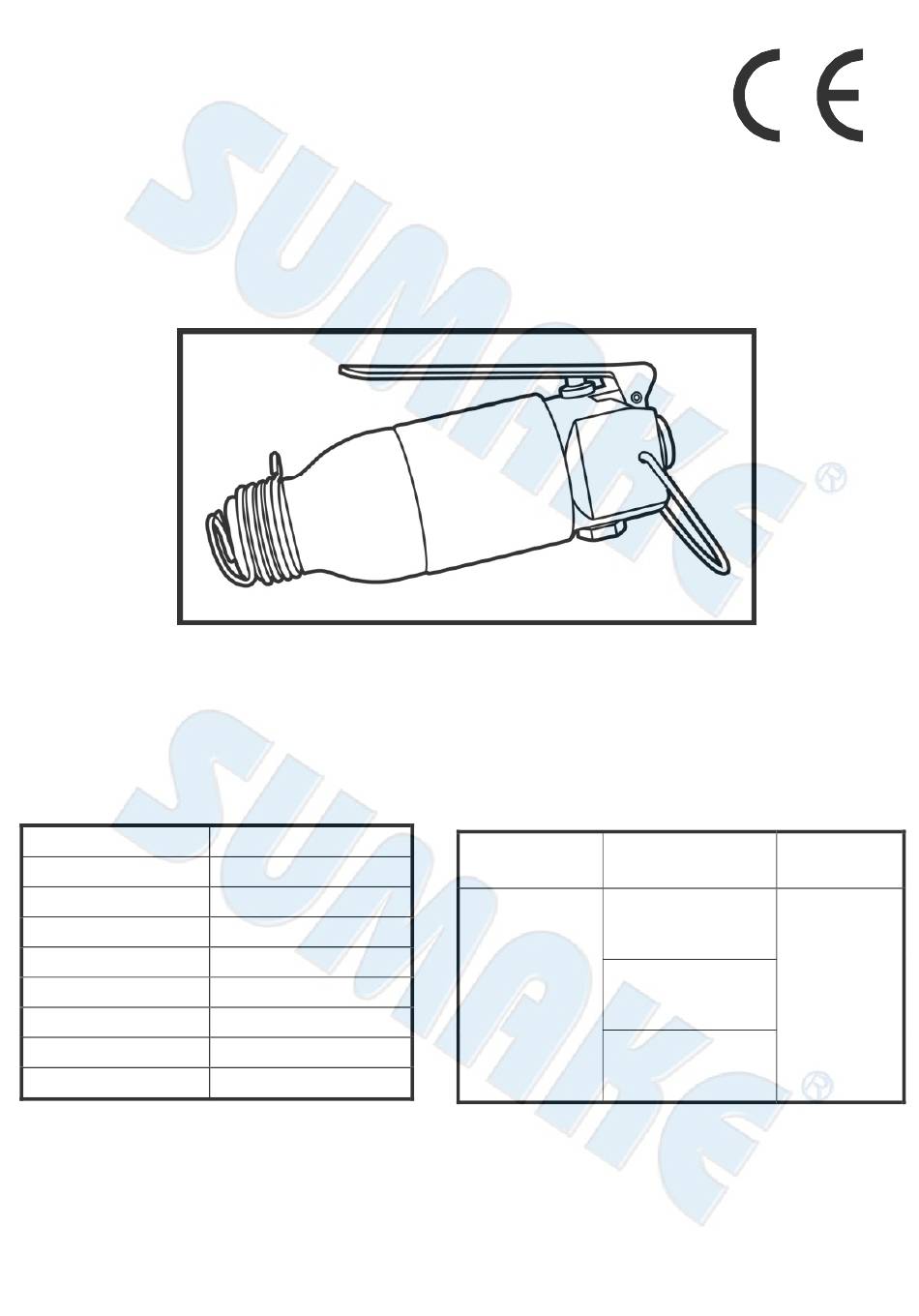

1" Air Riveting Hammer With Lever Trigger
Specification:
Blow Per Min
Piston Diameter
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Straight Type)
ST-2401SL
2,850 b.p.m.
9/16" (14.3 mm)
1-3/8" (35 mm)
14 CFM (396 L/min)
6-19/64" (160 mm)
1/4" (6.35mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.2 lbs (1.0 kg)
Noise and Vibration:
Vibration
EN ISO 28927-10
Sound Pressure Level
Load:
22.1 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 100 dB(A)
protector at
environment
load: 111 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-2401SL-S-1409B-FYF
Remark
wear ear
hearing!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-2401SL
Summary of Contents for Sumake ST-2401SL
- Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Net Weight 2.2 lbs (1.0 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2401SL-S-1409B-FYF...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1" AIR RIVETING HAMMER WITH LEVER TRIGGER (STRAIGHT TYPE) Model/ Serial No.：ST-2401SL to which this declaration applies, complies with these normative documents: ... - Page 3 * In ordering parts and components, give each part number, name and quantity. mechanism, and may cause trouble. So, install an Foreword screw air filter and an oiler between the compressor and We are the manufacturer and exporter of air tools the tool.
-
Page 4: Parts List
Valve 2401S-19 Stopper Pin 2401S-35 Valve Seat 2401S-20 Exhaust Cover 2401S-36 Bee Hive Spring *** For Button Type [ST-2401S] *** *** For Lever Trigger Type [ST-2401SL] *** 2401S-12 O-Ring (3.7x1.7) 2401SL-02 Cylinder (1") [ST-2401SL] 2401S-13 Spring 2401SL-03 Piston (1") 2401S-14A Air Inlet Plug 1/4"... - Page 5 HAMMER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
- Page 8 7. Whenever universal twist couplings (claw couplings) are used, lock pins shall be installed and whipcheck safety cables shall be used to safeguard against possible hose-to-tool and hose-and-hose connection failure. 8. Do not exceed the maximum air pressure stated on the tool. 9.
