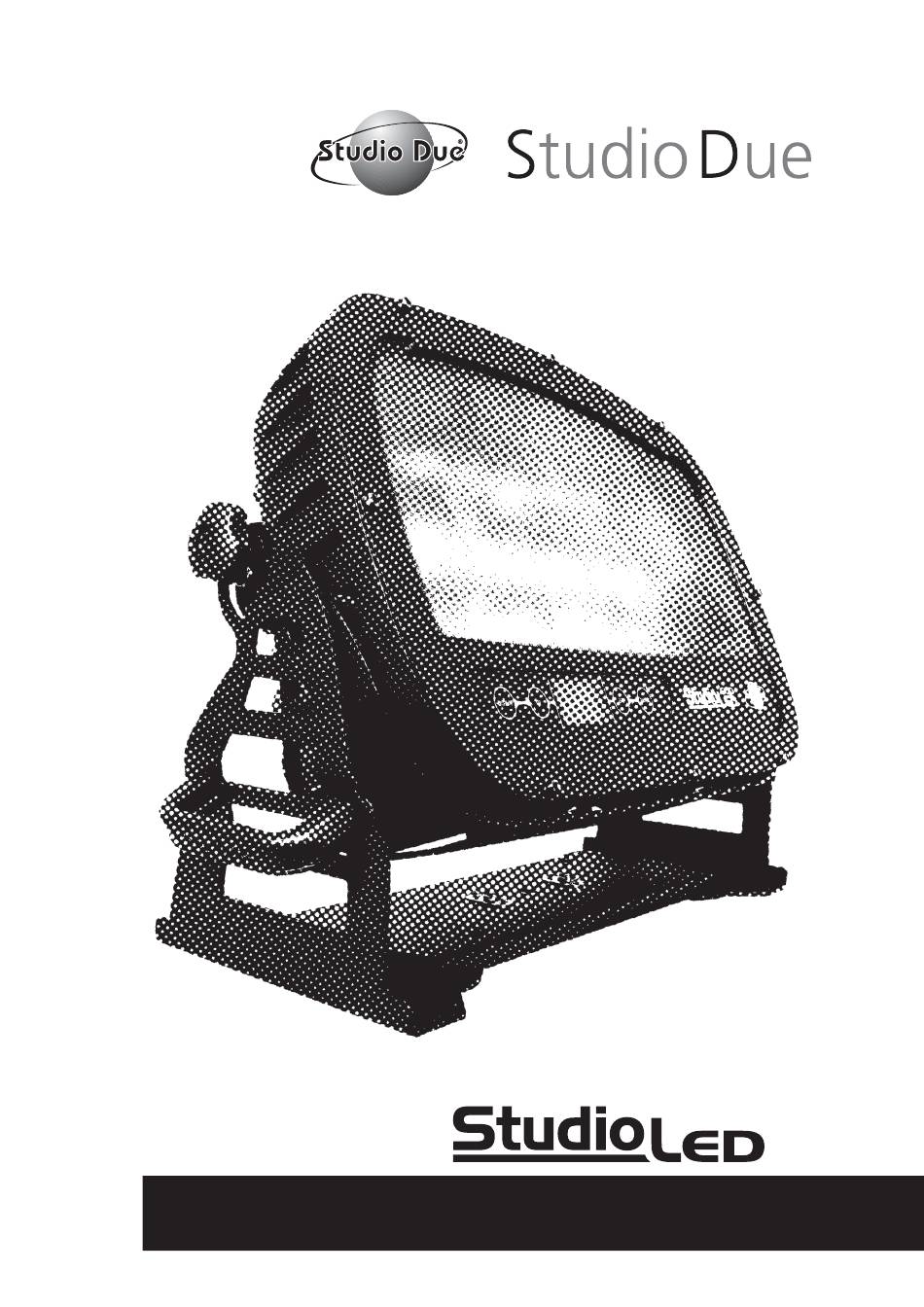

- Page 1 RGBWA rel. 06/2012 User’s and operator’s manual for art. 1001 Manuale d’uso e dell’operatore per art. 1001...
- Page 2 IMPORTANTE WARNING HQGRZHG ZLWK WKH ¿[WXUH LQFOXVR QHOO¶DSSDUHFFKLR ,I \RX ZDQW WR FRQQHFW WKH ¿[WXUHV IRU 6H YROHWH XWLOL]]DUH JOL DSSDUHFFKL 287'225 XVH \RX FDQ PDNH D QHZ DOO¶(67(512 SRWHWH UHDOL]]DUH GHL DUW :(,38&211 0) FDEOH XWLOL]LQJ WKH RSWLRQDO QXRYL FDYL FRQ DUW :(,38&211 0) DUW :(,38&211 0)
- Page 3 INDEX Page 4 - Safety informations / Informazioni di sicurezza Page 5 - Introduction / Introduzione Page 6 - Technical features / Caratteistiche tecniche Page 7 - Main supply connection / Collegamento fonte di alimentazione Page 7 - DMX signal connection / Collegamento segnale DMX Page 8 - EXAMPLE connection DMX controller-spot / Esempio di collegamento centralina DMX-fari Page 8 - Control panel FUNCTIONS / Funzioni del pannello di controllo Page 9 - Start procedure / Inizio procedura...
- Page 4 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. •PROTECTION AGAINST DANGEROUS MATTERS This product at the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither relea- sed in the environment.
- Page 5 • Projector • 2 WEIPU connectors 4 pin male and female (without cable) • User’s manual • Studio Due warranty • CE standards WARNING Check that the spot has not been damaged during transport. If it has been damaged or it does not work, address the seller.
-
Page 6: Setup And Configuration
TECHNICAL FEATURES / CARATTERISTICHE TECNICHE SOURCE (22 LEDs Array RGBWA) 22 powerful LEDs arrays for a total result of 400 led chip of 1W each 6 Red LEDs Arrays - 5 Green LEDs Arrays - 6 Blue LEDs Arrays - 4 White LEDs Arrays - 1 Amber LED Arrays) OPTIC 52mm motorized optic system Zoom from 15°... -
Page 7: High Voltage
CONNECTION TO THE MAIN POWER / CONNESSIONE ALLA RETE ELETTRICA This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. Questo apparecchio necessita di messa a terra. Apparecchio di Classe I. Il conduttore di protezione deve far parte del cavo di alimentazione. WARNING HIGH VOLTAGE! Always disconnect the mains supply before access... -
Page 8: Control Panel
EXAMPLE OF CONNECTION DMX CONTROLLER-SPOT / ESEMPIO DI COLLEGAMENTO CENTRALINA - FARI EXAMPLE 1 / ESEMPIO 1 LAST Spot Studio Due PLAY PROGRAMMING STAND BY FADING Ultimo faro PROGRAMS SPOTS STEPS SELECT SPOT MORE NONE PROGRAM MANUAL STEPS SELECT SPOTS... - Page 9 CONTROL PANEL - START PROCEDURE / PANNELLO DI CONTROLLO - PROCEDURA DI ACCESSO DOWN ENTER IMPORTANT If you want to enter into setup mode, you must follow the start procedure: Se desiderate entrare nella modalità setup, dovete seguire la procedura di accesso: 1 >...
- Page 10 12ch = C013 set-up 12ch = C025 set-up 12ch = C037 = red = green = blue = amber = white DMX controller = dimmer Studio Due PLAY PROGRAMMING STAND BY FADING PROGRAMS SPOTS STEPS SELECT PROGRAM MANUAL STEPS SELECT...
- Page 11 BUILT IN PROGRAMS / LISTA DEI GIOCHI Here below the list of 24 preset of the fixture. Qui di seguito la lista dei 24 giochi presenti nell’apparecchio. Preset 1 Fixed RED Preset 2 Fixed GREEN Preset 3 Fixed BLUE Preset 4 Fixed RED + GREEN Preset 5 Fixed RED + BLUE...
- Page 12 DMX Channels list 12Ch / Lista dei canali DMX 12Ch Studio 12 channels GREEN BLUE AMBER WHITE Dimmer Flash 0,4Hz / 25Hz Rainbow-Flash 0,4Hz / 25Hz 2-127 128-255 Strobe Open 0,1 sec. 25,5 sec. 0=CUT LINEAR fade time FAST SLOW Rainbow 0-15 16-255...
- Page 13 DMX Channels list 6Ch / Lista dei canali DMX 6Ch Studio 6 channels GREEN BLUE AMBER WHITE Zoom 15° 40° LINEAR ColorLED positions / Posizione ColorLED...
- Page 14 Electric diagrams switching power supply / Schema elettrico dell’alimentatore switching &$ & 9 * & + (&' $ >3=> & + ! & " " & & & ( ? + * * &...
- Page 15 Electric diagrams drivers board / Schema elettrico del circuito driver led ! 5 * ' 5 % 5 ( +9/ +9/ +9/ & & & ) ) ) * ' ( %! % 5 % 5 %! +9/...
- Page 16 Electric diagrams DMX and Display / Schema elettrico del DMX e display " & & "( " " ' ( " +# " " ' ( " +"' $ & $ $ & $ $ &## &7 " " " " &.,8 &.790 " "...
- Page 17 StudioDue 'RF 5(9 light s.r.l. 5*%:$ 678',2/(' 'LFKLDUD]LRQH GL FRQIRUPLWj 'HFODUDWLRQ RI FRQIRUPLW\ /D GLWWD 678',2 '8( OLJKW VUO 7KH ILUP 6WUDGD 3RJJLQR 9,7(5%2 ,7$/< GLFKLDUD VRWWR OD SURSULD UHVSRQVDELOLWj FKH LO SURGRWWR GHFODUH XQGHU RXU VROH UHVSRQVDELOLW\ WKDW WKH SURGXFW 5*%:$ 678',2/(' ,3 FRGH ...
- Page 18 WARRANTY / GARANZIA Warranty CARD &RPSDQ\ QDPH 0U0UV0LVV $GGUHVV 7HO RU (PDLO 'HDOHU ...
- Page 19 this page is intentionally left blank...
- Page 20 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk...
