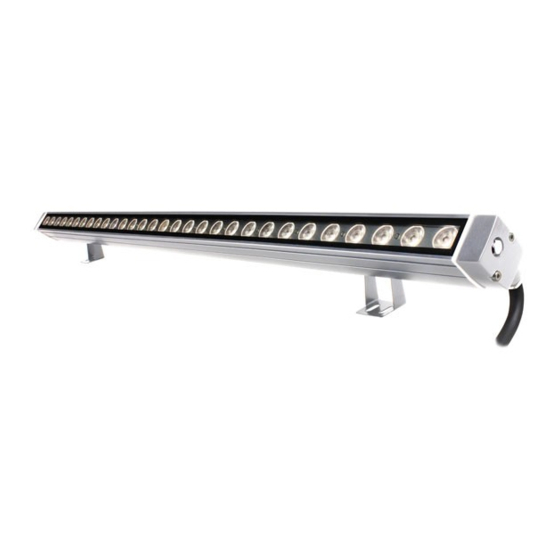

STUDIO DUE slim bar plus User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
PLUS
PLUS
User manual for art. 2012-2014-1710-1711-1712
Manuale d'uso per art. 2012-2014-1710-1711-1712

Advertisement

loading
Need help?

Need help?

Do you have a question about the slim bar plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STUDIO DUE slim bar plus

Summary of Contents for STUDIO DUE slim bar plus

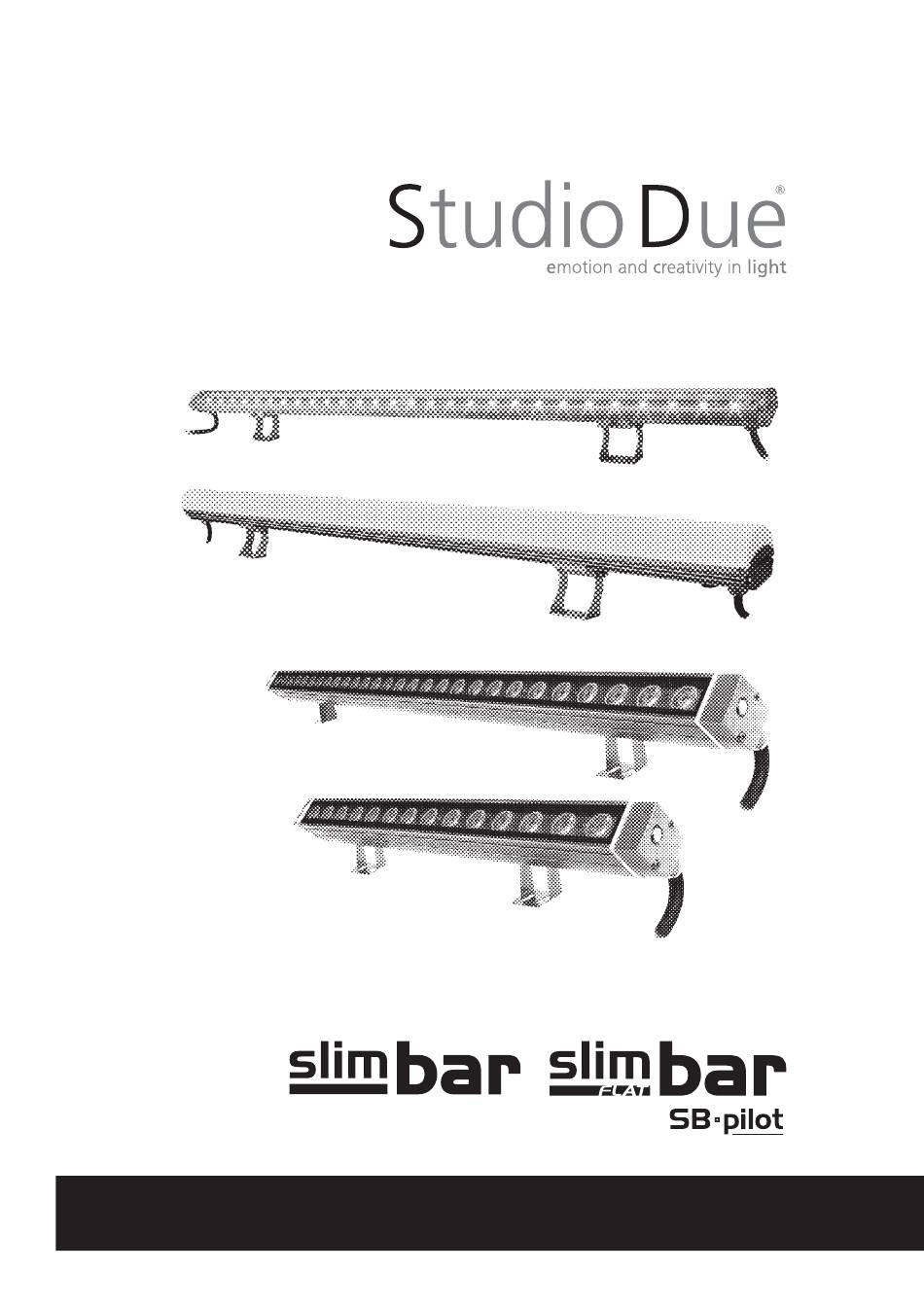

  • Page 1 PLUS PLUS User manual for art. 2012-2014-1710-1711-1712 Manuale d’uso per art. 2012-2014-1710-1711-1712...
  • Page 2 SLIMBAR PLUS rgbw SLIMBAR PLUS monochromatic PHYSICAL / MISURE 1005 Rel.1 - 10/2020...
  • Page 3 SLIMBAR FLAT rgbw OPTIONAL milky diffuser SLIMBAR FLAT monochromatic PHYSICAL / MISURE 1000 Rel.1 - 10/2020...
  • Page 4 connectors only for SLIMBAR PLUS IN/OUT IP67 connectors - Connettori IP67 IN/OUT MONOCHROMATIC fixture MALE - INPUT connector - WHITE - WHITE input connector IN MALE input connector CONNECTOR front view rear side welding view +48VDC +48VDC FEMALE - OUTPUT connector - WHITE - WHITE OUT FEMALE...
  • Page 5 connectors only for SLIMBAR FLAT IN/OUT IP67 connectors - Connettori IP67 IN/OUT MONOCHROMATIC fixture MALE - INPUT connector +52V / WHITE +52VDC / WHITE - CH4 WHITE - CH2 input connector input connector WHITE front view rear side welding view - CH3 WHITE - CH3 WHITE FEMALE - OUTPUT connector...
  • Page 6 INDEX / INDICE Page 2 - Physical / Misure Page 7 - Safety informations / Informazioni di sicurezza Page 8 - Introduction / Introduzione Page 9 - Technical features / Caratteristiche tecniche Page 11 - Connections / Connessioni Page 13 - Setup and Configuration / Settaggio e Configurazione Page 14 - DRS functioning / Funzioni DRS Page 15 - Slimbar DRS menu list / Lista menu Slimbar DRS Page 20 - Example of connection DMX controller-driver / Esempio di collegamento centralina DMX-driver...
  • Page 7 2) Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. 3) Disconnect power before servicing (service personnel). 4) To replace the LEDs, contact: Studio Due Trade Srls. 5) If the external flexible cable of this appliance is damaged, it must only be replaced by the manufacturer, its assistance service, or equivalent qualified personnel, in order to avoid dangers.
  • Page 8 • CE standard WARNING • Studio Due warranty Check that the fixture has not been damaged during transport. If it has been damaged or it does not work, address the seller. Whether the fixture has been shipped to you directly, please contact the shipping company.
  • Page 9 SLIMBAR PLUS TECHNICAL FEATURES / CARATTERISTICHE TECNICHE OPTICS OPTICS OPTICS OPTICS OPTICS OPTICS FILTER RGBW holographic external 8° 12° 24° 36° 10°x30° 15°x55° • SOURCE 28 RGB-NW (white 4000K) LEDs (n.14 for 50cm.) Lumen: R 460, G 950, B 260, CW 1000 (R 230, G 475, B 130, CW 500 for 50cm.) Total light power: 32W (16W for 50cm.) •...
  • Page 10 SLIMBAR FLAT TECHNICAL FEATURES / CARATTERISTICHE TECNICHE OPTICS RGBW external 120° • SOURCE n. 28x4 Red, Green, Blue, White mid power LEDs (n.14x4 for 50cm.) Lumen: R 460, G 950, B 260, CW 1300 (R 230, G 475, B 130, CW 650 for 50cm.) Total light power: 32W (16W for 50cm.) •...
  • Page 11 IMPORTANT IMPORTANTE THE EQUIPMENT IS SUPPLIED WITH A POWER-IN AND A POWER-OUT CONNECTORS WITH CABLE 40CM. LONG. DO NOT CUT THE CABLES, USE THE SUPPLIED CONNECTORS FOR EXTENSIONS. L’APPARECCHIO È FORNITO DI UN CAVO LUNGO 40CM. CON CONNETTORE POWER-IN E DI UNO POWER-OUT. NON TAGLIARE I CAVI, UTILIZZARE I CONNETTORI IN DOTAZIONE PER I PROLUNGAMENTI.

  • Page 12: Pin Connectors

    DMX CONNECTION / CONNESSIONE DMX DMX TERMINAL LINE The wrong connection of the terminal line or its non-connection are probably the most frequent reasons for the defective functioning of the DMX line. The terminator is a terminal resistor fitted at the end of the cable furthest from the transmitter. The terminal resistor should have the same value as the impedance of the connection cable.

  • Page 13: Main Power

    SETUP and CONFIGURATION by DRS - DMX REMOTE SETUP SETTAGGIO e CONFIGURAZIONE tramite DRS - DMX REMOTE SETUP The DRS it’s a new concept of professional LED Lighting fixtures suitable for outdoor permanent installations. The LED Lighting fixtures can be driven via DMX through a specific electronic device, the DRS DMX Remote Setup, that grant the possibility to set up the scenarios and the games remotely.
  • Page 14 DRS (DMX Remote Setup) FUNCTIONING To make the set-up of the various fixture parameter, proceed as follow: •Disconnect the fixture to set-up from the other DMX/RDM devices • Connect the DMX cable of the fixture to the DRS commander • Switch on the DRS (push any button) commander and wait for the 8888 sign •...
  • Page 15 SLIMBAR DRS MENU’ LIST ELENCO MENU’ SLIMBAR DRS Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> Slimbar rGbW --> 2_00 than it’s shown the fist menu poi viene visualizzato il primo menu Address (Addr)
  • Page 16 All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> Studio Due Slimbar --> 1_1 0 --> DMX channel --> C001 than it’s shown the first DMX channel. When you press any button it’s shown the first menu.
  • Page 17 menu Auto (AUto) > Auto mode functions / Funzioni auto mode press ENTER for submenu / premere ENTER per i sottomenu (Mode) Set the DMX/SLAVE/MASTER mode / Imposta la modalità DMX/SLAVE/MASTER > Select the value no .. sl .. pr01 .. pr02 .. with the UP/DOWN buttons. Press ENTER. >...
  • Page 18 menu Wireless (WLSS) > Wireless functions / Funzioni wireless press ENTER for submenu / premere ENTER per i sottomenu (EnAb) Enable wireless Enable or disable the wireless reception / Consente o non consente la ricezione wireless The cable reception is disabled / La ricezione via cavo viene disabilitata >...
  • Page 19 menu Service (Srvc) > Service functions / Funzioni di servizio press ENTER for submenu / premere ENTER per i sottomenu (FrMt) Restore the factory setting (Require confirmation) FM-? Ripristina le impostazioni di fabbrica (Viene chiesta conferma) FM-? > Select the value off .. on with the UP/DOWN buttons. Press ENTER. >...
  • Page 20 EXAMPLE OF CONNECTION DMX CONTROLLER - FIXURES DRIVER/ ESEMPIO DI COLLEGAMENTO CENTRALINA - DRIVER APPARECCHI SB PILOT SB PILOT driver SB PILOT driver SB PILOT driver driver SB PILOT SB PILOT SB PILOT driver SB PILOT driver driver driver SB PILOT SB PILOT SB PILOT driver...

  • Page 21: Technical Features

    SLIMBAR PILOT (CONTROL DRIVE SOLUTIONS) art. SB PILOT MAX RGBW 4 channels DMX Control Drive to control up to 8mt. of RGBW SLIMBAR PLUS or RGBW SLIMBAR FLAT. Version with control panel. IP 67 protection rating. TECHNICAL FEATURES n.2x52V Constant Voltage output IP 67 rating protection N.2 out connectors (5 pin) for fast and easy wiring DISPLAY and touch pads set-up...
  • Page 22 art. SB PILOT PLUS RGBW 4 channels DMX Control Drive to control up to 4mt. of RGBW SLIMBAR PLUS or RGBW SLIMBAR FLAT. Version with control panel. IP 67 protection rating. TECHNICAL FEATURES n.2x52V Constant Voltage output IP 67 rating protection N.2 out connectors (5 pin) for fast and easy wiring DISPLAY and touch pads set-up Flicker-free function...
  • Page 23 art. SB PILOT DRS RGBW 4 channels DMX Control Drive DRS to control up to 1mt. of RGBW SLIMBAR PLUS or RGBW SLIMBAR FLAT. IP 67 protection rating. TECHNICAL FEATURES (costant voltage 52V) IP 67 rating protection n.1 out connectors (5 pin) for fast and easy wiring DMX DRS setup DMX or Auto mode with Master-Slave function Halogen simulation...
  • Page 24 SLIMBAR PLUS and SLIMBAR FLAT SLIMBAR PILOT (CONTROL DRIVE SOLUTIONS) art. SB PILOT MAX M 4 channels DMX Control Drive to control up to 16mt. of MONOCHROMATIC SLIMBAR PLUS or 8mt. of MONOCHROMATIC SLIMBAR FLAT. Version with control panel. IP 67 protection rating. art.
  • Page 25 art. SB PILOT PLUS M 4 channels DMX Control Drive to control up to 9mt. of MONOCHROMATIC SLIMBAR PLUS or 3mt. of MONOCHROMATIC SLIMBAR FLAT. Version with control panel. IP 67 protection rating. art. SB PILOT PLUS WB 2 channels DMX Control Drive to control up to 3mt. of WHITE BALANCE SLIMBAR FLAT. Version with control panel.
  • Page 26 art. SB PILOT DRS M 4 channels DMX Control Drive DRS to control up to 3mt. of MONOCHROMATIC SLIMBAR PLUS or 1mt. of MONOCHROMATIC SLIMBAR FLAT. Without control panel. IP 67 protection rating. art. SB PILOT M DALI 1 channel DALI Control Drive to control up to 3mt. of MONOCHROMATIC SLIMBAR PLUS or 1mt.

  • Page 27: Power Supply

    (POWER SUPPLY) POWER SUPPLY IP67 art. SB PS PLUG-IN 320 M Power Supply to drive up to 16mt. of MONOCHROMATIC SLIMBAR PLUS or 7mt. of MONOCHROMATIC SLIMBAR FLAT. PLUG IN version. IP 67 protection rating. Length 250mm. art. SB PS PLUG-IN 150 M Power Supply to drive up to 8mt.

  • Page 28: Warranty Card

    WARRANTY / GARANZIA Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... SALE CONDITIONS 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items, except for art. 0403 (CS4), that is 4%. These prices should be subject to possible variations for eventual rises of production costs or duties.
  • Page 29 Studio Due Doc. 20xx REV 1 - 04/20 SLIMBAR_20 series 04/2020 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product:...
  • Page 30 04/2017 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE light s.r.l. The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: code SB PILOT-F series IP67 è...
  • Page 31 This page is intentionally left blanc. Rel.1 - 10/2020...
  • Page 32 Head Office: STUDIO DUE Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com for technical info service@studiodue.com...
