STUDIO DUE Single 40 Manual

Hide thumbs Also See for Single 40:

Advertisement

Quick Links

Download this manual
User manual for art. 1403 and art. 1402
Manuale d'uso per art. 1403 e art. 1402

Advertisement

loading
Need help?

Need help?

Do you have a question about the Single 40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STUDIO DUE Single 40

Summary of Contents for STUDIO DUE Single 40

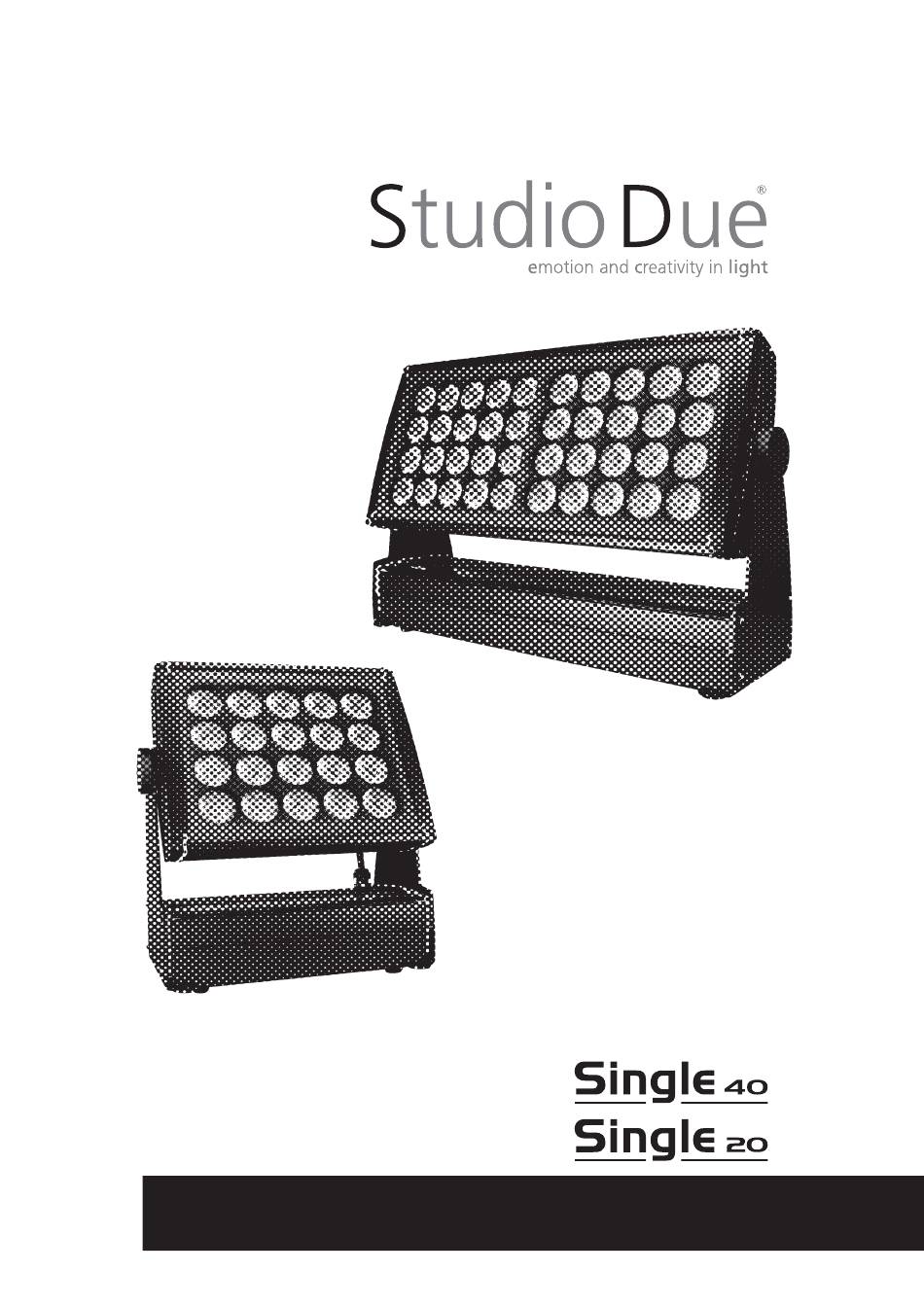

  • Page 1 User manual for art. 1403 and art. 1402 Manuale d’uso per art. 1403 e art. 1402...
  • Page 2 CONNECTORS CONNECTORS art. 4 PIN/XLR MF male/female connectors are for INDOOR use are IP67 (optional) only art. 4 PIN/XLR MF connettori maschio/femmina questi connettori sono questi connettori (opzionale) solo per uso INTERNO sono IP67 rel.5 - 05/20 - Studio Due...
  • Page 3 Page 18 - Physical / Dimensioni Page 20 - CE standards / Certificazioni CE Page 22 - Warranty / Garanzia • Art. 1403 Single40 RGBW/FC (full color) • Art. 1402 Single20 RGBW/FC (full color) rel.5 - 05/20 - Studio Due...
  • Page 4 2) Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. 3) Disconnect power before servicing (service personnel). 4) To replace the LEDs, contact: Studio Due Trade Srls. 5) If the external flexible cable of this appliance is damaged, it must only be replaced by the manufacturer, its assistance service, or equivalent qualified personnel, in order to avoid dangers.

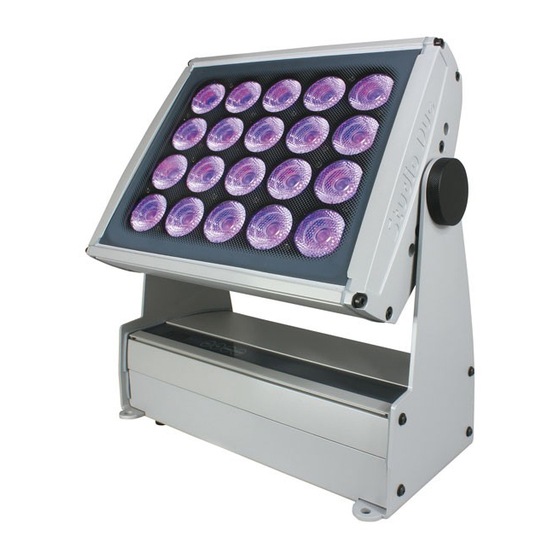

  • Page 5 INTRODUCTION Thanks for using Single 40 RGBW/FC and Single 20 RGBW/FC. The Single 40 and Single 20 RGBW/FC (Full Color) are compact and refined IP67 rating protection LED Lighting fixture with a large and uniform light output. High brightness LEDs RGBW/FC, combines an innovative optic system with a wide beam and a superb color mixing.
  • Page 6 Active Power factor: PF>0.95/230VAC, PF>0.98/115VAC Active Power factor: PF>0.95/230VAC, PF>0.98/115VAC Current: 0,9A@230VAC; Fuse T5A Current: 0,45A@230VAC; Fuse T3.15A Power: 210W Power: 105W • PHYSICAL • PHYSICAL WxDxH: 613x185x415 mm WxDxH: 355x185x415 mm Weight: 19 Kg. Weight: 12 Kg. rel.5 - 05/20 - Studio Due...
  • Page 7 EXAMPLE OF CONNECTION DMX CONTROLLER - FIXTURES / ESEMPIO DI COLLEGAMENTO CENTRALINA - FARI Example 1/ Esempio 1 Example 2 / Esempio 2 Example 3 / Esempio 3 NORMAL AND MASTER/SLAVE FUNCTIONS / FUNZIONI NORMAL E MASTER/SLAVE NORMAL MASTER/SLAVE rel.5 - 05/20 - Studio Due...

  • Page 8: Pin Connectors

    Termination resistor Terminale di linea GROUND/RETURN/OV N.C. SHIELD GROUND/RETURN/OV DATA COMPLEMENT ( -, INVERTED) Termination resistor 120 Ohm Terminale di linea DATA TRUE ( +, NON INVERTED) INNER CONDUCTOR DATA TRUE ( +, NON INVERTED) rel.5 - 05/20 - Studio Due...
  • Page 9 REAR VIEW / VISTA POSTERIORE DMX OUT (female) Uscita DMX (femmina) DMX IN (male) Ingresso DMX (maschio) rel.5 - 05/20 - Studio Due...
  • Page 10 ESC >> UP >> DOWN >> ENTER DMX led UNLOCK sequence DOWN ENTER 1° 2° 3° 4° 1--- / -2-- / --3- / ---4 To enter the menu Per entrare nel menù ESC / UP / DOWN / ENTER rel.5 - 05/20 - Studio Due...
  • Page 11 (LdMM) Power LEDS dimmer (with active menu) / Dimmer potenza dei LEDS (con menu attivo) > Select the value off .. on with the UP/DOWN buttons. Press ENTER. > Selezionate il valore desidarato off .. on con i tasti UP/DOWN. Premere ENTER. rel.5 - 05/20 - Studio Due...
  • Page 12 > Select the value 0 .. 255 with the UP/DOWN buttons. Don’t press ENTER. > Selezionate il valore desiderato 0 .. 255 con i tasti UP/DOWN. Non premere ENTER. ScnE (scene) menu available from software version 2.00 ScnE (scene) menu disponibile dalla versione software 2.00 rel.5 - 05/20 - Studio Due...
  • Page 13 > Select the value off >> RGB or on >> CYM with the UP/DOWN buttons. Press ENTER. > Selezionate il valore desiderato off >> RGB or on >> CYM con i tasti UP/DOWN. Premere ENTER. rel.5 - 05/20 - Studio Due...
  • Page 14 > Select the value on .. off .. with the UP/DOWN buttons. Press ENTER. > Selezionate il valore desidarato on .. off .. con i tasti UP/DOWN. Premere ENTER. (Ln) This menu will be active in the future / Questo menu sarà attivo in futuro rel.5 - 05/20 - Studio Due...
  • Page 15 OPEN STROBE 2 -127 128 -255 0 - 1 DIMMER LED FADE FAST - 0,1 sec. SLOW 0 = CUT TIME LINEAR 25,5 sec. RAINBOW BALANCED 16 - 255 0 - 15 NORMAL WHITE rel.5 - 05/20 - Studio Due...
  • Page 16 • Art. 1403 Single40 RGBW/FC (full color) • Art. 1402 Single20 RGBW/FC (full color) STUDIODUE light s.r.l. str. Poggino, 100 - 01100 VITERBO ITALY - tel. +39 0761 352520 - fax +39 0761 352653 http://www.studiodue.com E-Mail: info@studiodue.com - service@studiodue.com rel.5 - 05/20 - Studio Due...
  • Page 17 RAINBOW FAST Preset 13 WHITE BALANCE (from cool) to ..Preset 18 WHITE BALANCE (to warm) Preset 19 SIMULATION SODIUM lamps (yellow type) to ..Preset 24 SIMULATION SODIUM lamps (yellow type) rel.5 - 05/20 - Studio Due...
  • Page 18 PHYSICAL SINGLE 40 / DIMENSIONI SINGLE 40 rel.5 - 05/20 - Studio Due...
  • Page 19 PHYSICAL SINGLE 20 / DIMENSIONI SINGLE 20 rel.5 - 05/20 - Studio Due...
  • Page 20 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product: SINGLE 40 RGBW/FC (full color) IP67 code 1403 è conforme alle norme: is in conformity with the standard: Low Voltage Directive: 2014/35/EU...
  • Page 21 Direttive: and therefore according to essential requirement of Directives: 2004/108/EC – Electromagnetic compatibility 2006/95/EC – Low Voltage directive Data di apposizione PAOLO SENSI Date of marking General Manager VITERBO, 11/02/14 rel.5 - 05/20 - Studio Due...
  • Page 22 Tutte le apparecchiature godono della garanzia di un anno contro difetti di fabbricazione o di materiali, sono esclusi dalla garanzia danni derivanti da un cattivo uso o installazione delle apparecchiature. Le lampade restano comunque escluse dalla garanzia. Per ogni controversia è competente il Foro di Viterbo. rel.5 - 05/20 - Studio Due...
  • Page 23 / questa pagina è stata lasciata intenzionalmente bianca rel.5 - 05/20 - Studio Due...
  • Page 24 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com...

This manual is also suitable for:

Single 2014031402
